Peplink Products

The Peplink Line — matched to your deployment

The case studies differ — the products are the same. One SpeedFusion engine runs the whole line, and InControl 2 manages all of it identically. Here is how to choose, tiered by what the deployment actually demands. Two rules as you read on: size to the SpeedFusion (AES) throughput, not the marketing Mbps, and confirm the active care plan (it keeps firmware, cloud and SpeedFusion current). Summer 2026 line.

Start at the edge — single-5G routers

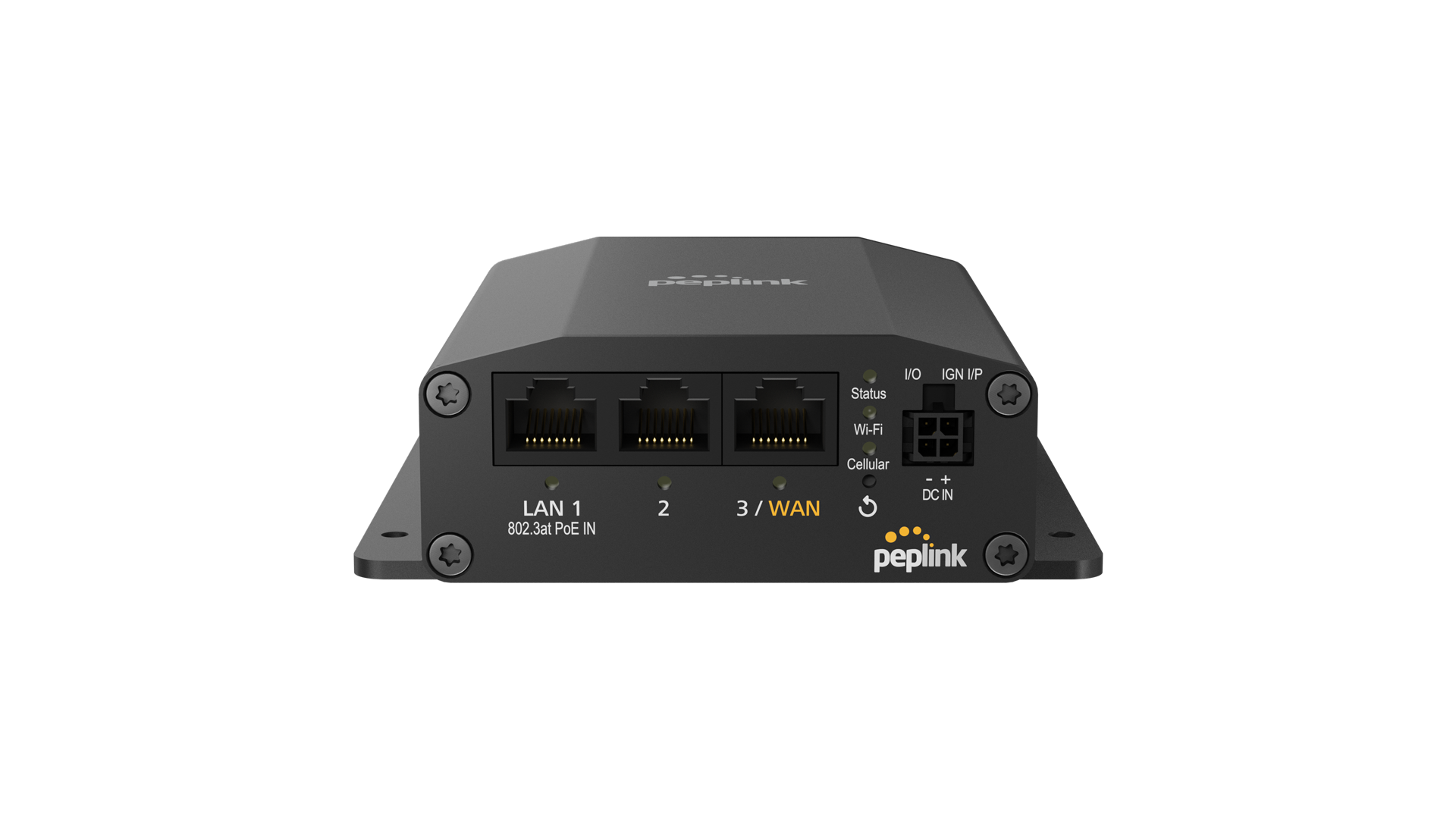

BR1 MiniIoT & basic connectivity

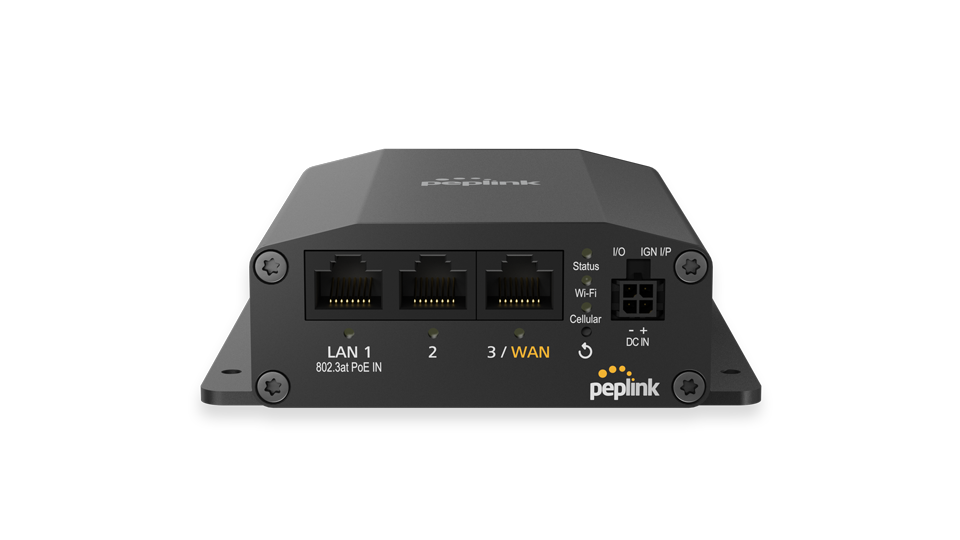

BR1 Mini

Low-cost, single 5G with failover SIMs and 4× eSIM support — built for private and public 5G IoT solutions at scale.

Buy →Datasheet (PDF) ↓ · User Manual

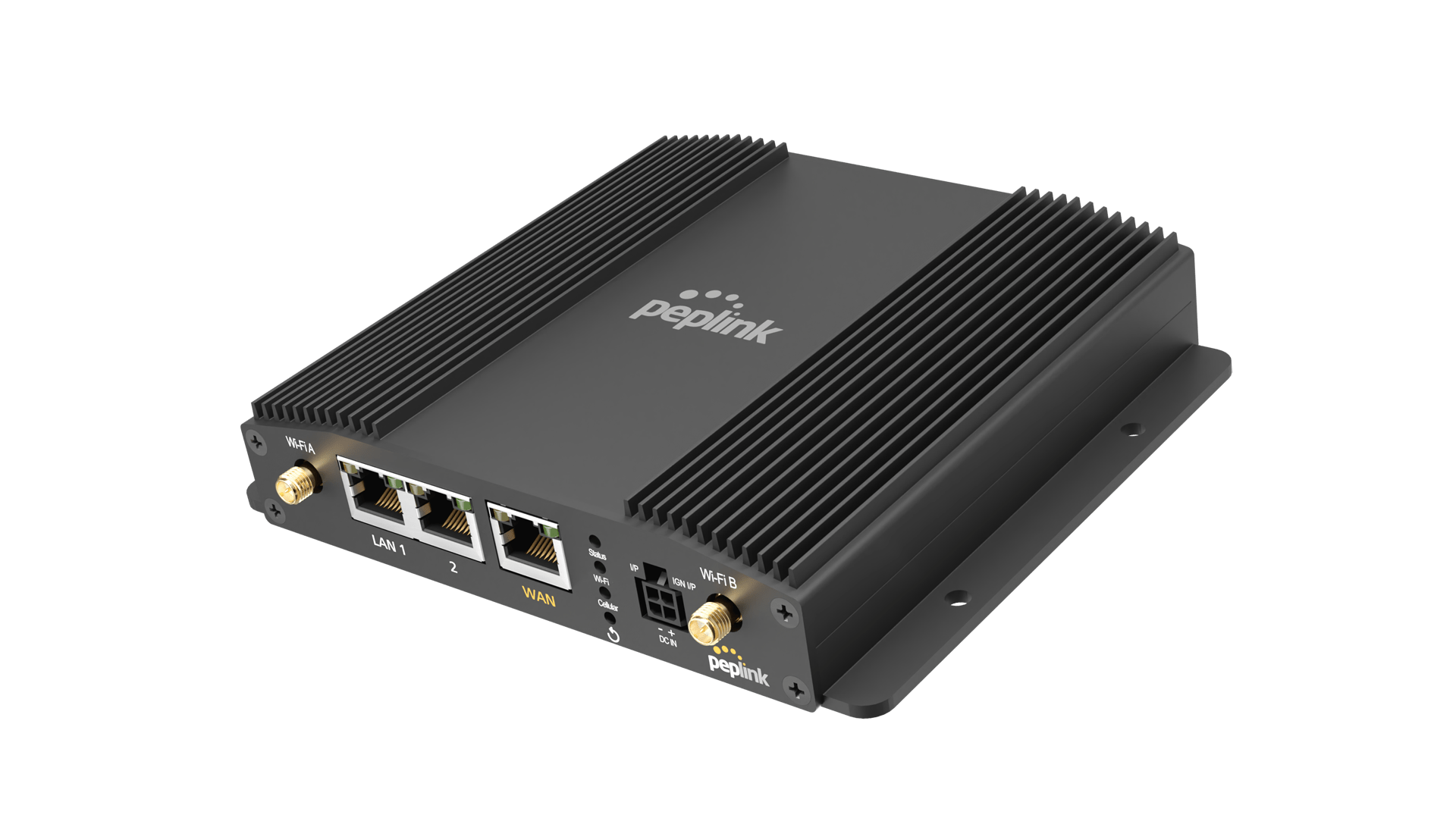

BR1 Pro 5GThe fleet powerhouse

BR1 Pro 5G

More power, more throughput, a better single 5G. The pick for public safety, compact personal 5G — and your entry into Peplink.

Buy →Datasheet (PDF) ↓ · User Manual
B One 5GBranch & retail

B One 5G

Affordable, capable single 5G — and expandable to dual 5G with a 5G Adapter the day you need it.

Buy →Datasheet (PDF) ↓ · User Manual
Balance 310 5GEnterprise branch

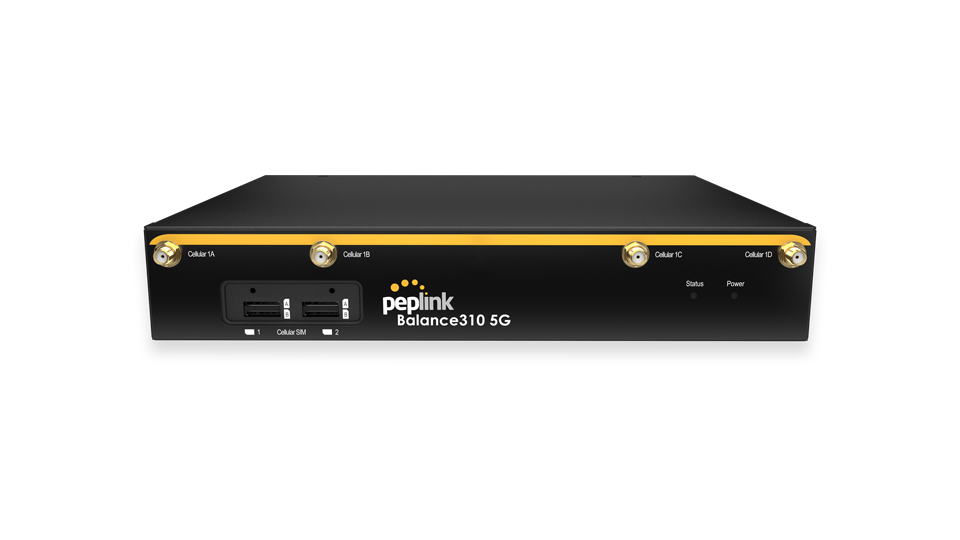

Balance 310 5G

The B One 5G’s bigger sibling: rugged, enterprise-grade, and far more powerful — for branches that can’t compromise.

Buy →Datasheet (PDF) ↓ · User Manual

Where it gets awesome — bonded multi-5G (every use case)

This is where SpeedFusion earns its name: two or more links bonded into one connection that keeps working no matter what any single carrier does.

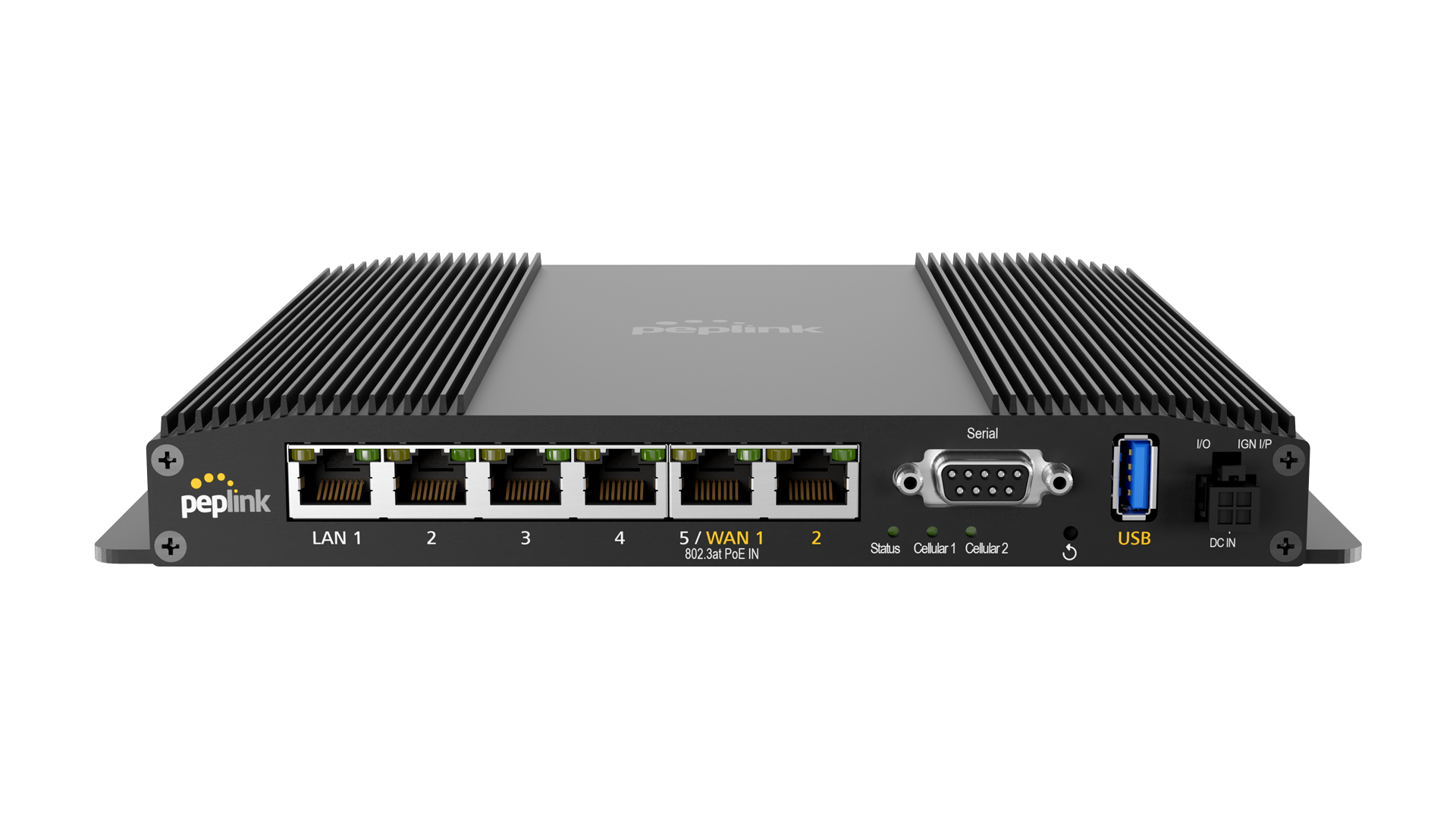

BR2 Pro 5GThe entry point

BR2 Pro 5G

Dual 5G — the starting line for every solution we build. Ambulance, telehealth, construction: they all begin here.

Buy →Datasheet (PDF) ↓ · User Manual

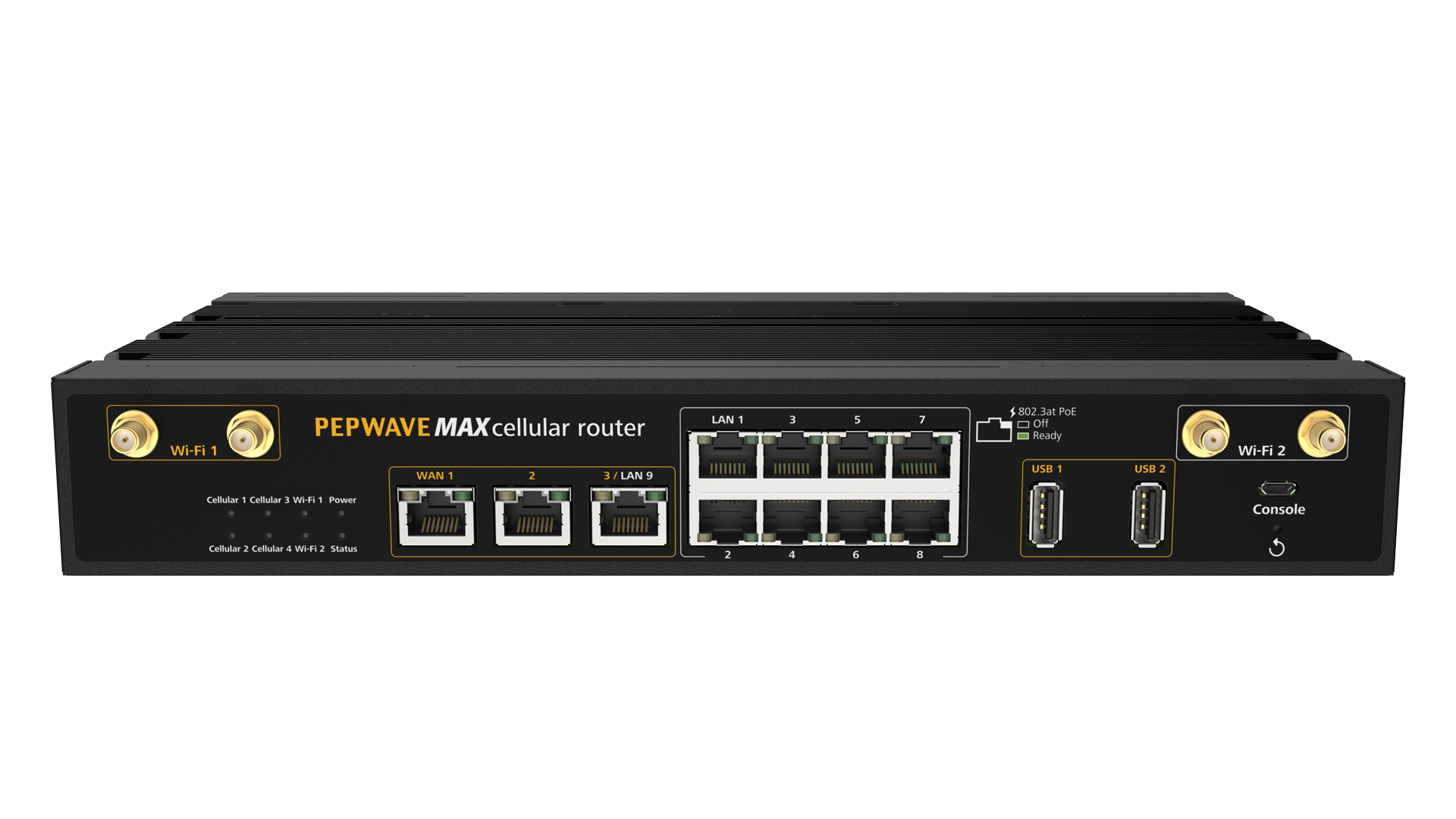

HD4 MBX 5GIt has to work, always

HD4 MBX 5G

Quad 5G. Run 2× T-Mobile, 1× AT&T, 1× Verizon — any mix — add Starlink and OneWeb, and bond them all, all the time. It will always work.

Buy →Datasheet (PDF) ↓ · User Manual

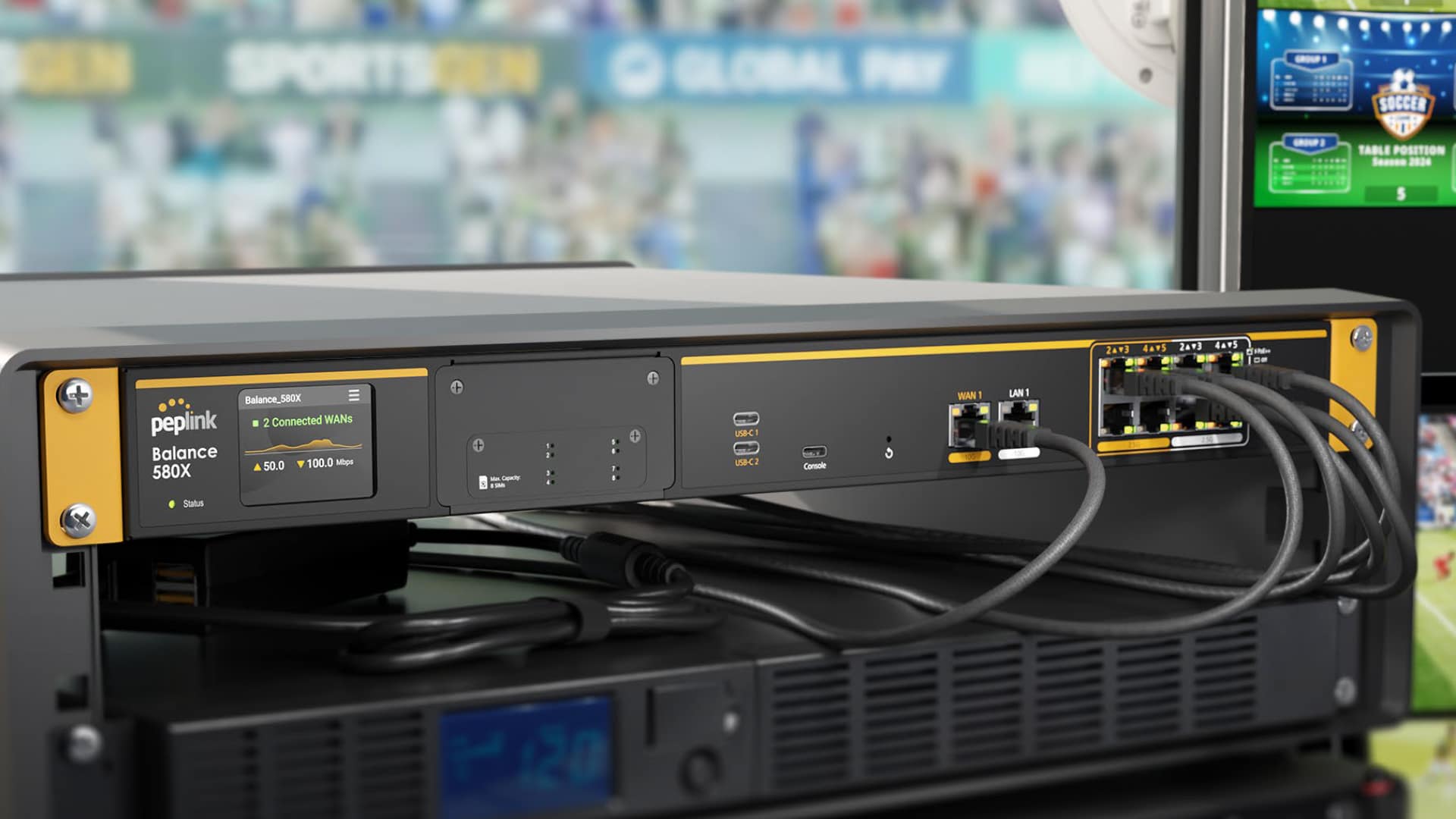

Balance 580X solution6+ WANs, high capacity

580X + BR1 Pro 5G + MAX Antenna

Like the HD4 MBX, but expandable to 8+ WANs. Mix cellular, Starlink and OneWeb for connectivity and capacity on the largest, highest-bandwidth solutions.

Buy →Datasheet (PDF) ↓ · User Manual

Past the last cell tower — bond the sky (MAX Orbit)

When the towers run out — mid-ocean, deep in the backcountry, or on a disaster site — the connection comes from space, and one dish isn’t enough. The new MAX Orbit series bonds multiple LEO satellite terminals — Starlink, OneWeb, even Iridium — into one SpeedFusion connection. Obstructions, satellite hand-offs and weather stop taking you offline, and every constellation is managed from one InControl dashboard.

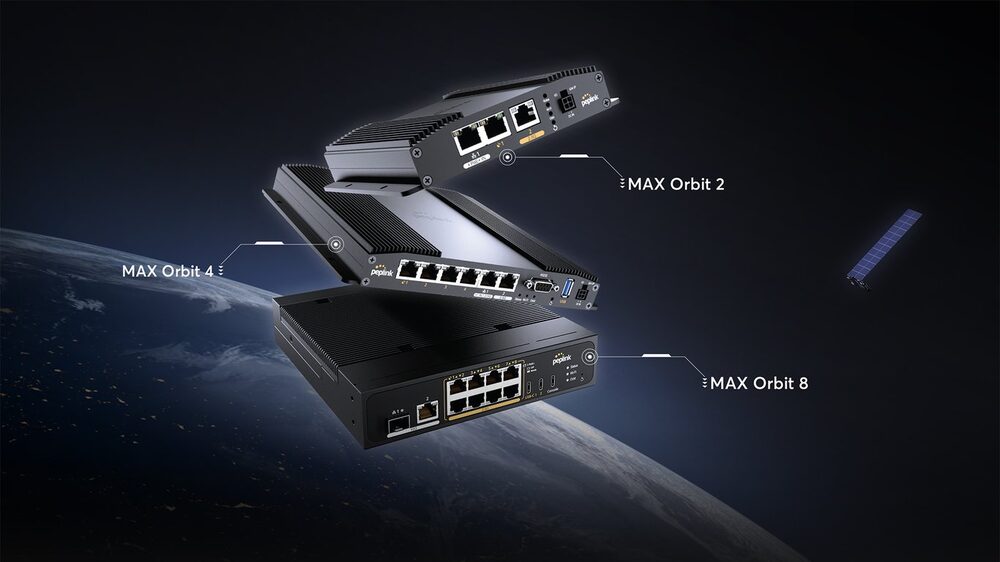

Peplink MAX Orbit 2, 4 and 8 multi-orbit satellite routers bonding Starlink and OneWeb
MAX Orbit 2Bonds 2 terminals

MAX Orbit 2

Bond two LEO terminals (Starlink / OneWeb) with embedded 5G — one always-on link for a site, RV or small vessel. Wi-Fi 6. ~25–150 users.

Shop →
MAX Orbit 4Bonds 4 terminals

MAX Orbit 4

Bond four terminals for serious coastal and offshore work — more diverse paths, more aggregate speed, no single point of failure. Wi-Fi 6. ~150–300 users.

Shop →
MAX Orbit 8Bonds up to 8 · Wi-Fi 7

MAX Orbit 8

Bond up to eight terminals across multiple orbits — nothing takes the vessel offline. Wi-Fi 7 and redundant power for the largest deployments. ~300+ users.

Shop →

Don’t forget the hub — the other end of SpeedFusion

Bonding takes two endpoints. At your data center, cloud, or HQ, the bonding hub terminates every site’s tunnel and hands traffic off to your network. Match the hub to your aggregate capacity.

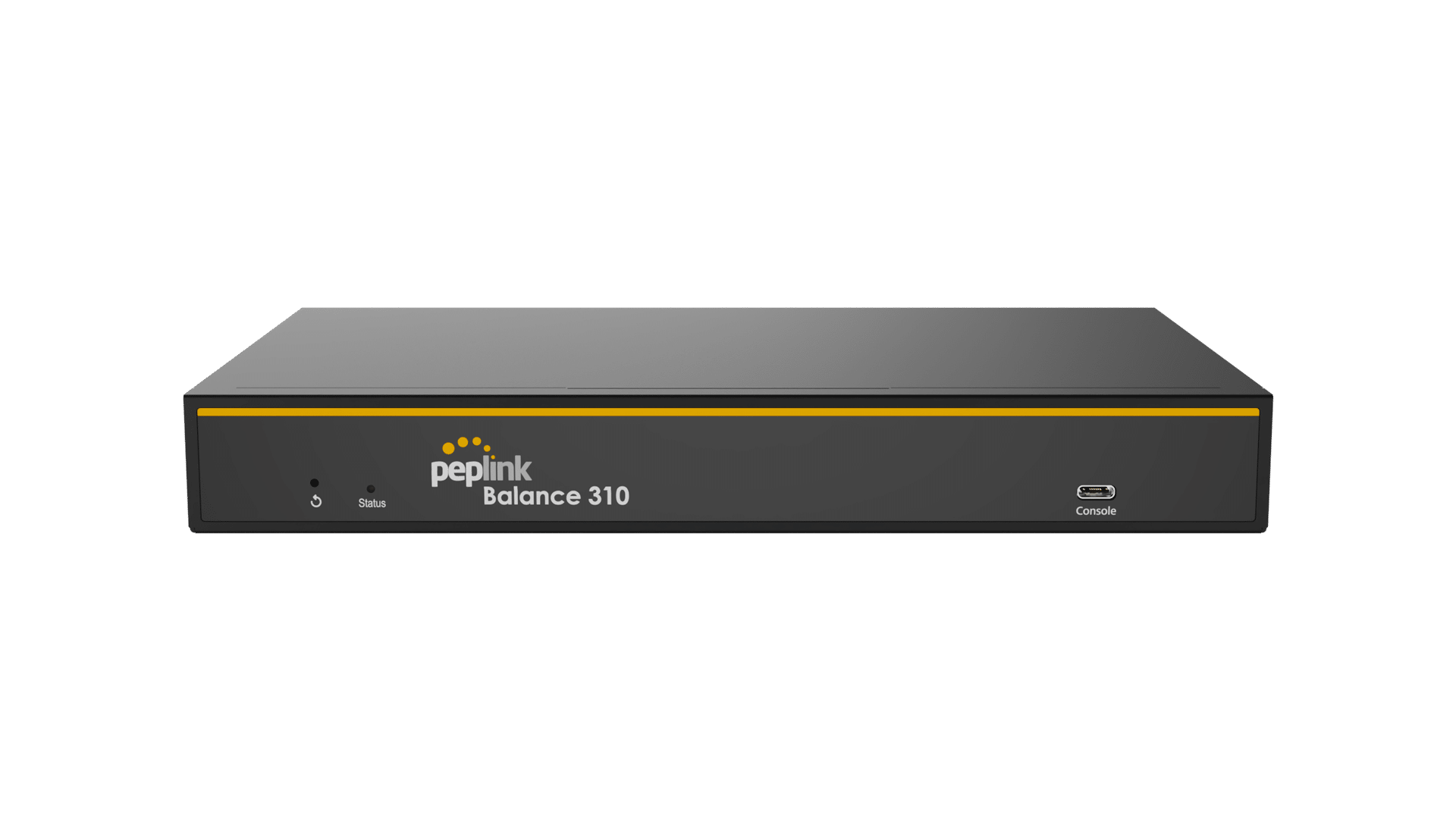

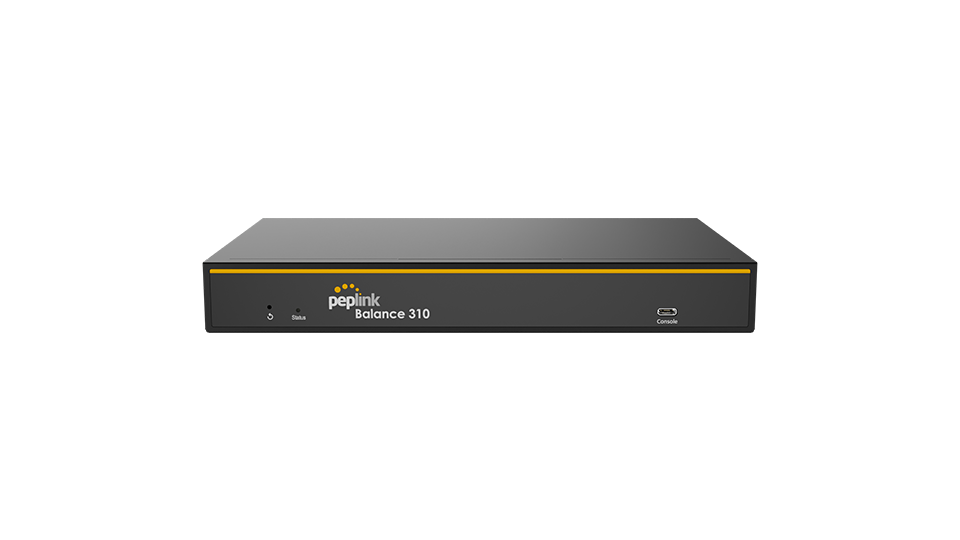

Balance 310Entry hub

Balance 310

The entry bonding hub — perfect for smaller fleets and pilots.

Buy →Datasheet (PDF) ↓ · User Manual

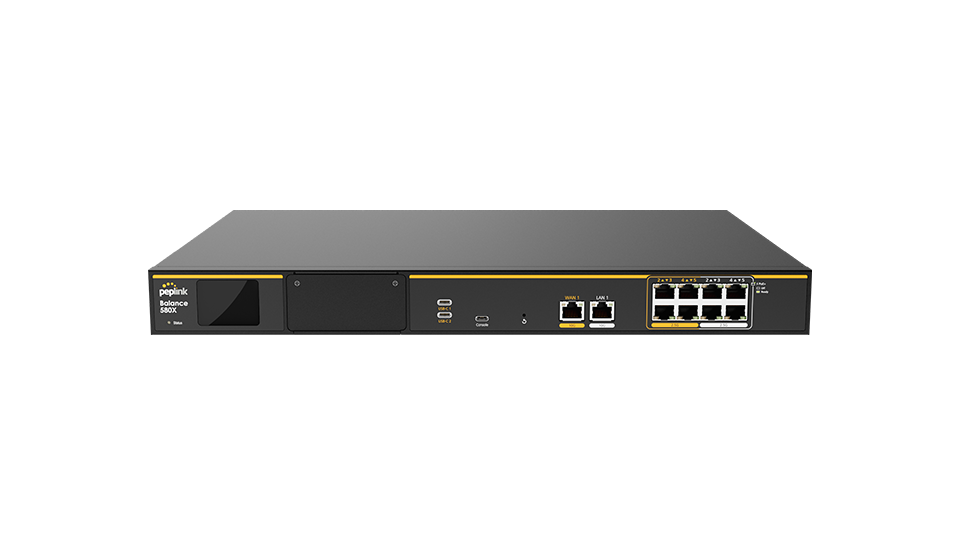

Balance 580XThe standard

Balance 580X

Gigabit capacity, scalable and capable — the workhorse hub for most deployments.

Buy →Datasheet (PDF) ↓ · User Manual

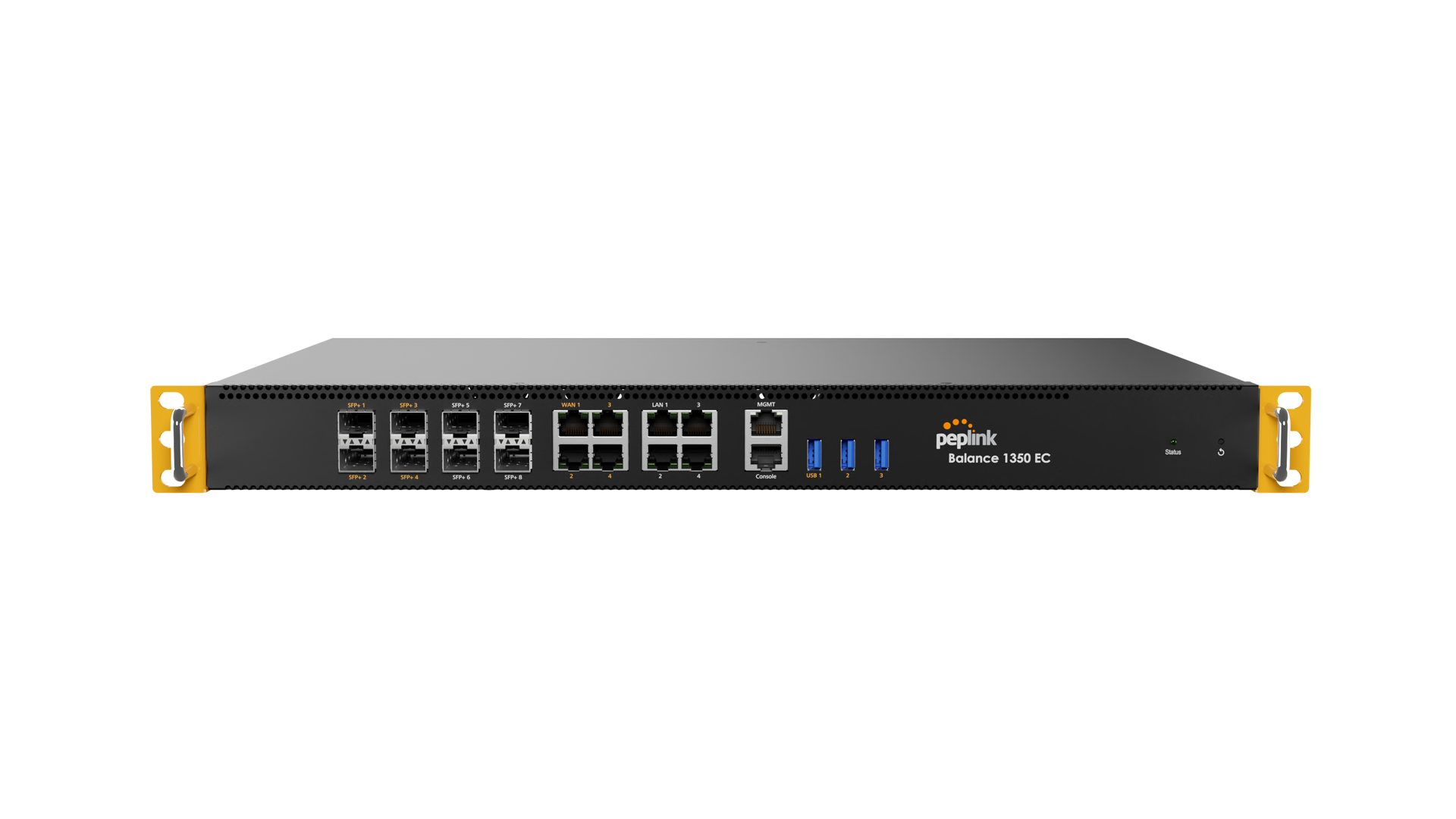

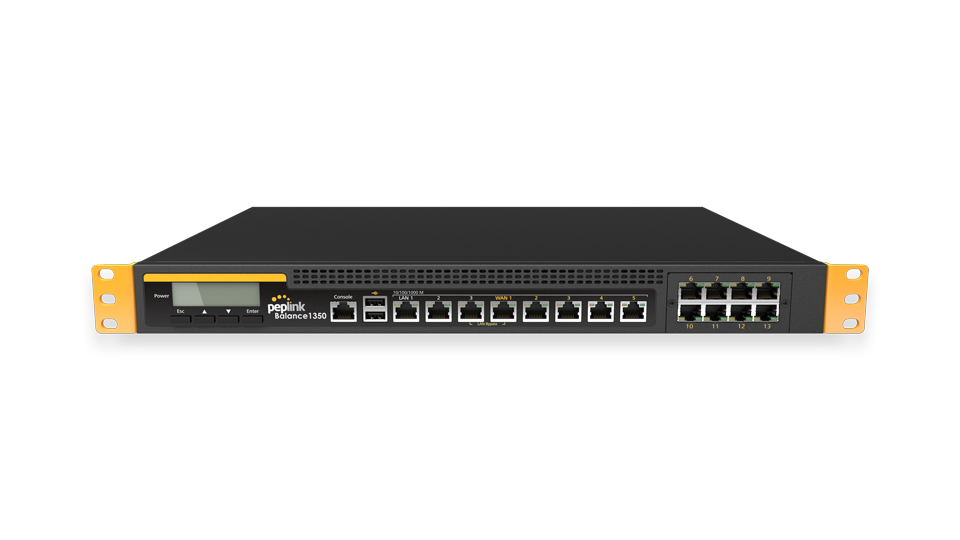

Balance 1350 ECHigh performance

Balance 1350 EC

A multi-gig, high-performance bonding hub with edge compute on board.

Buy →Datasheet (PDF) ↓ · User Manual

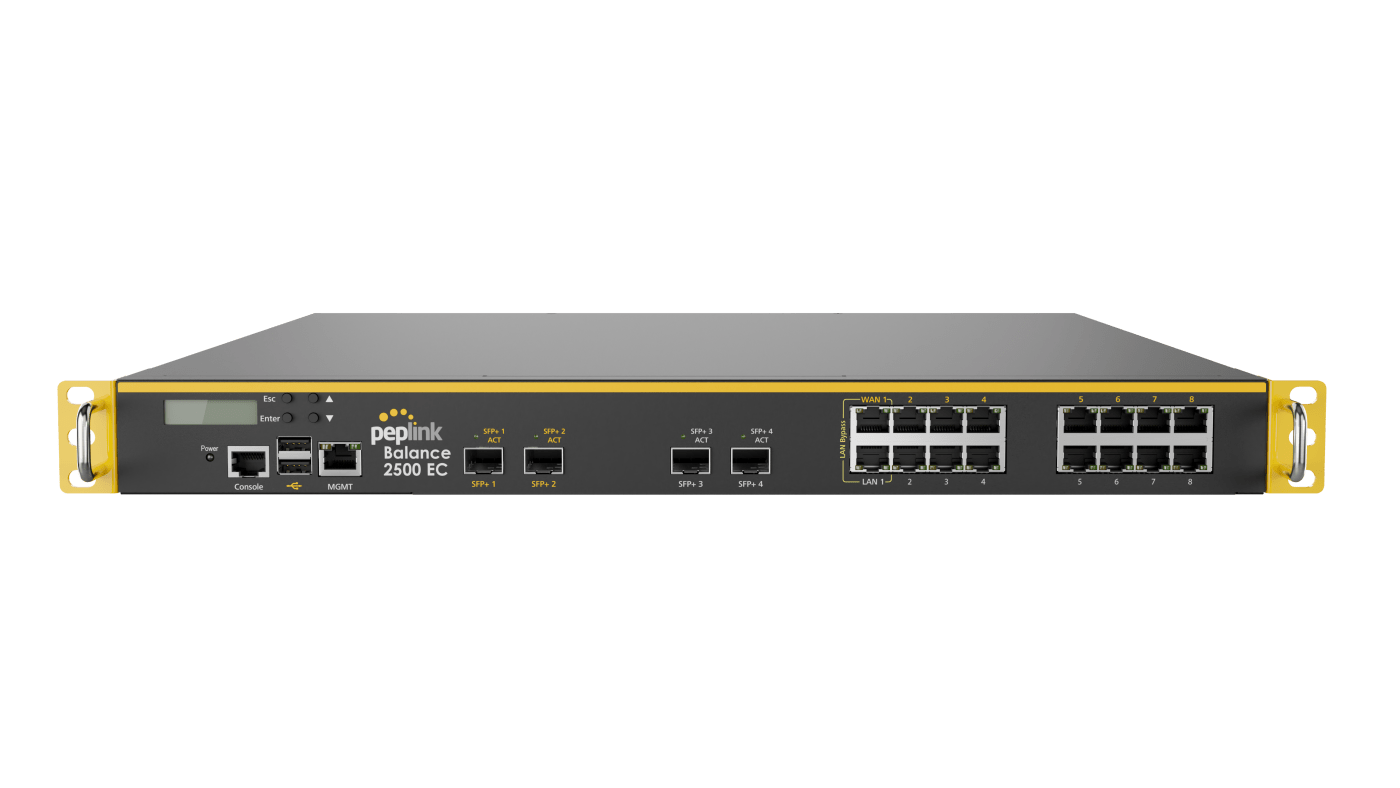

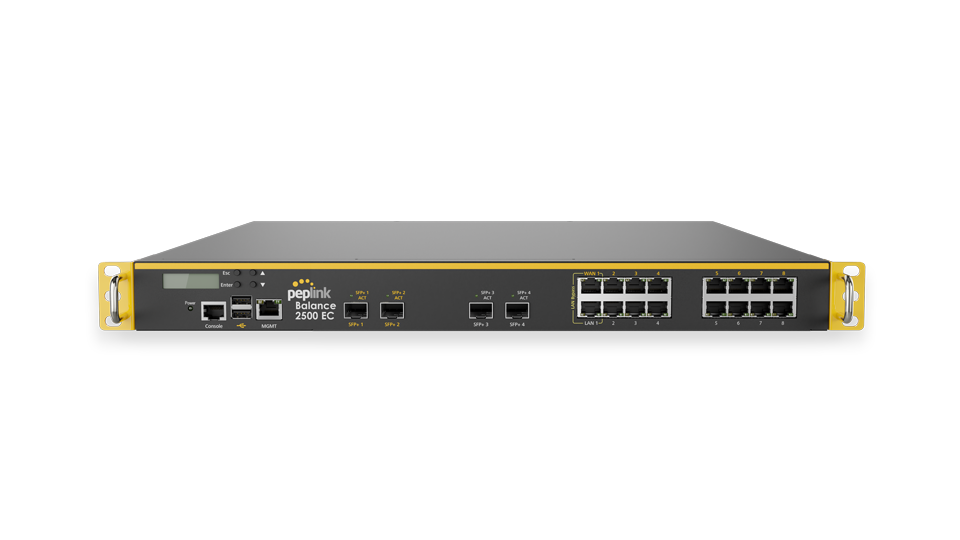

Balance 2500 ECEnterprise · maritime standard

Balance 2500 EC

A true enterprise powerhouse built for scale and capacity. We standardize on the 2500 EC for cruise ships.

Buy →Datasheet (PDF) ↓ · User Manual

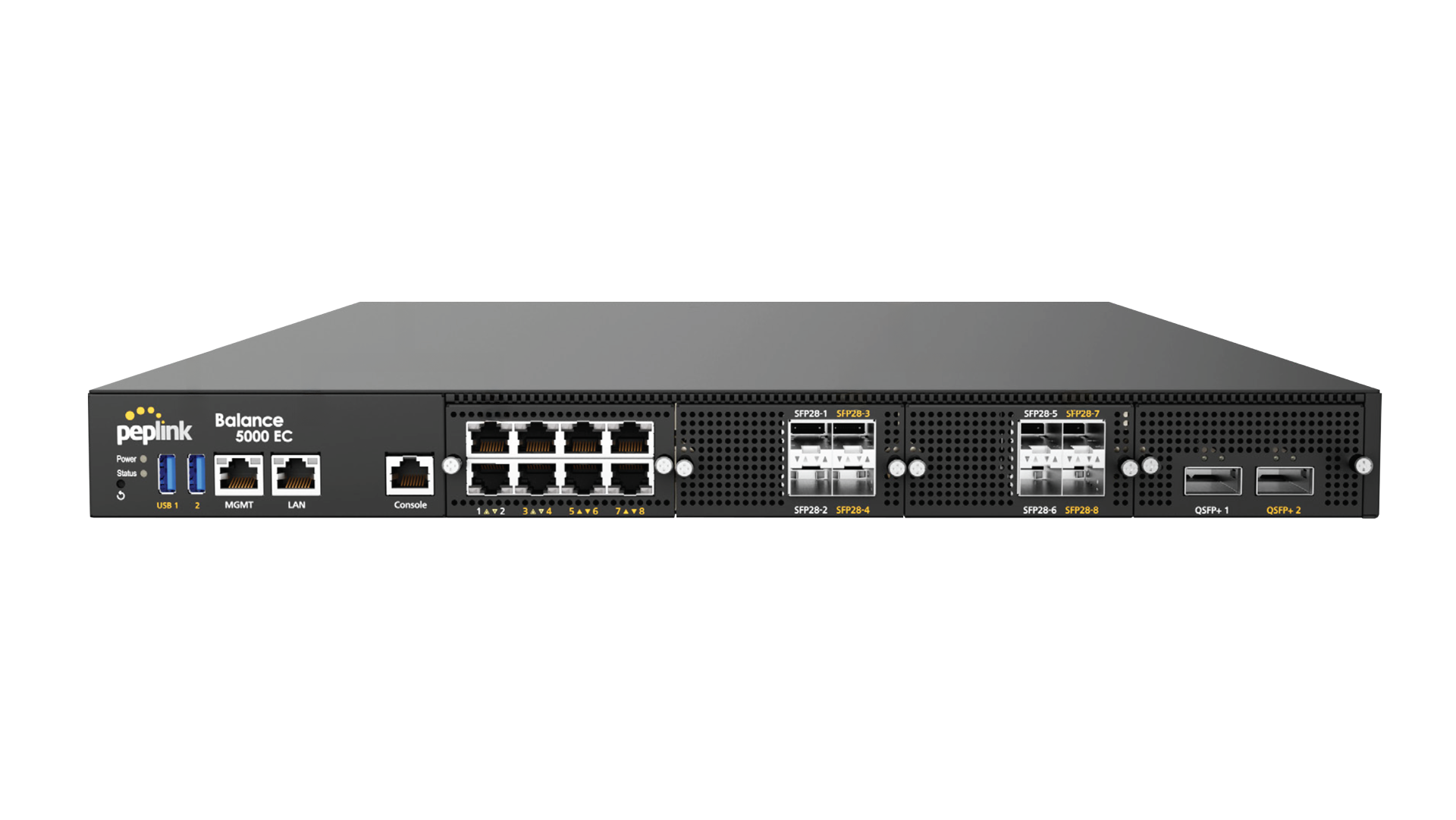

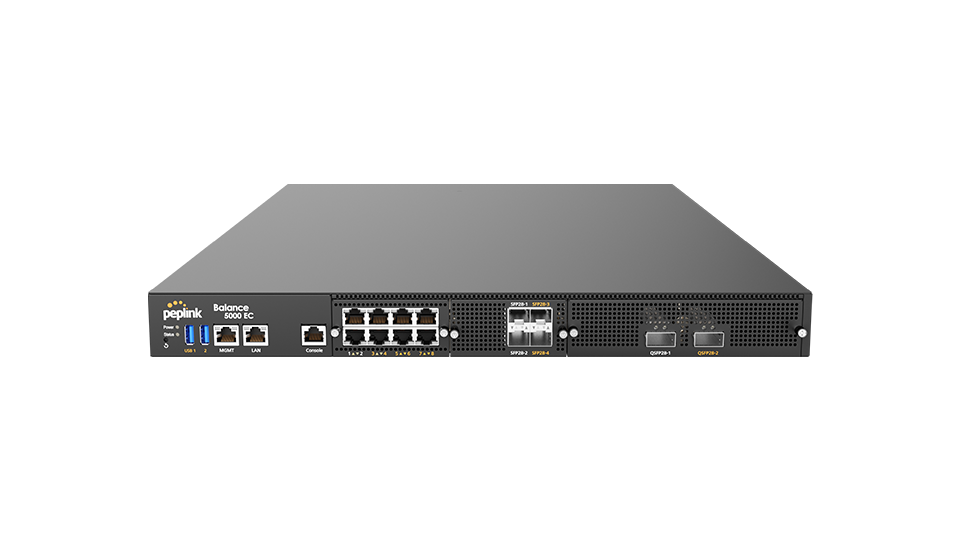

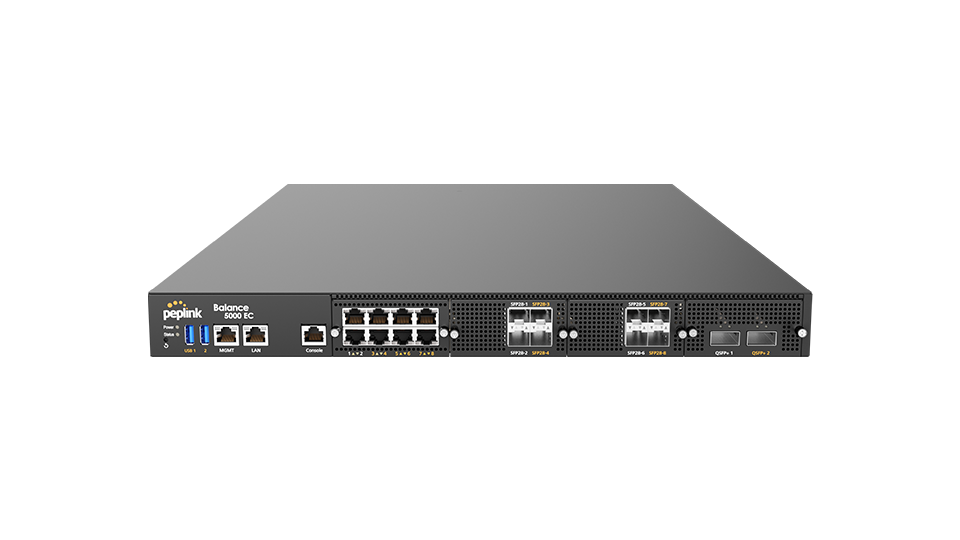

Balance 5000 ECCarrier-grade

Balance 5000 EC

The largest enterprise powerhouse — 40G/100G aggregation for the highest densities.

Buy →Datasheet (PDF) ↓ · User Manual

Full line & specs

The complete Summer 2026 line with real specifications. Every Buy button opens that model on buypeplink.com; the PDF link downloads the official datasheet.

Fixed-site & branch routers

ModelCellularStatefulSpeedFusion (AES)Best forBuy
Balance 20XLTE Cat-4/6/7 + FlexModule slot1 Gbps60 MbpsFuture-proof cellular-backup branchBuy →
PDF ↓ · Manual
Balance 310 5GBalance 310 5G5G + LTE Cat-12, redundant SIM1 Gbps500 MbpsDual-radio 5G + LTE branch redundancyBuy →
PDF ↓ · Manual

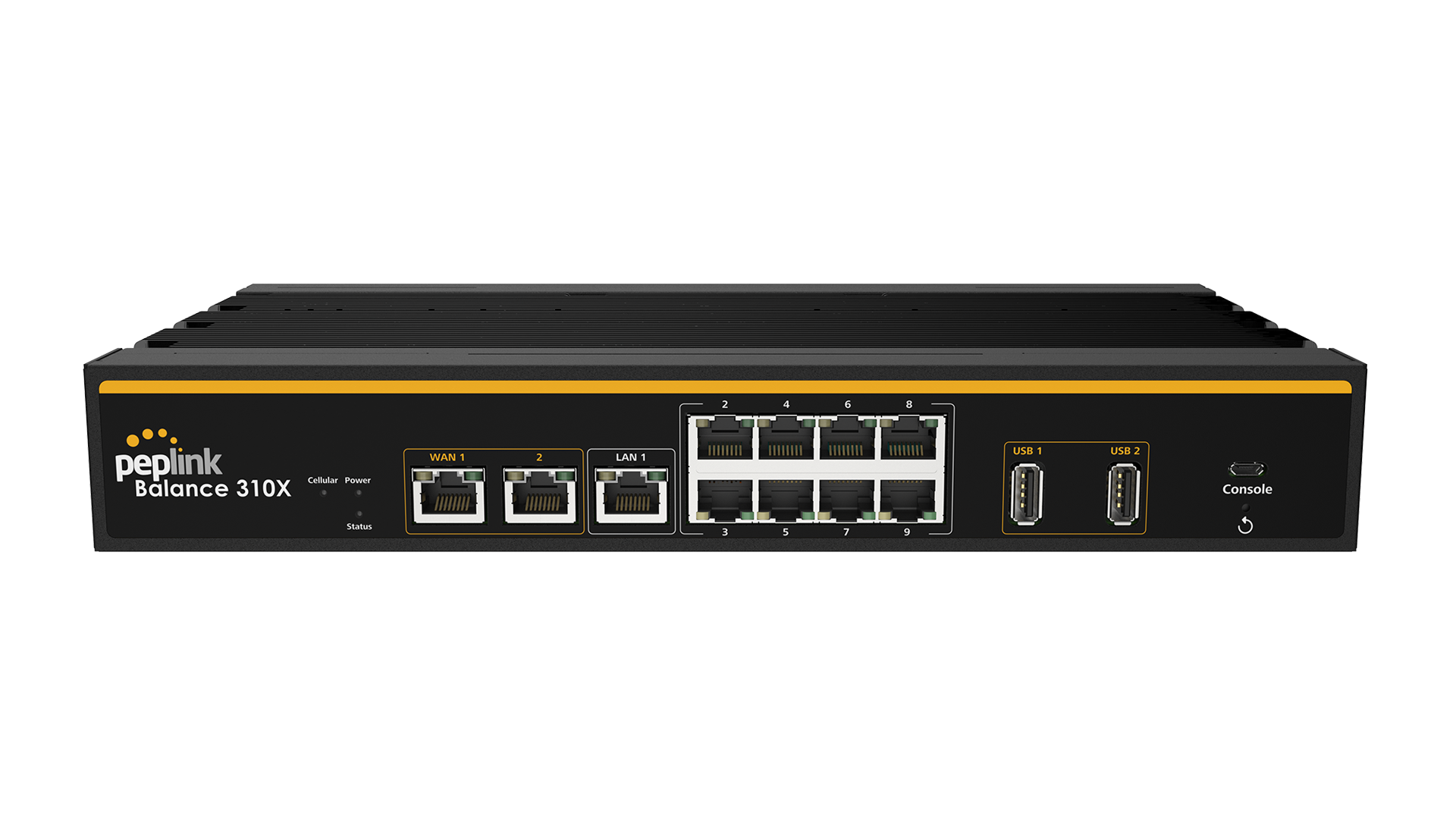

Balance 310XBalance 310X / 310X 5GLTE-A Pro / 5G + expansion slot2.5 Gbps500 MbpsRugged medium-branch SD-WANBuy →
PDF ↓ · Manual
Balance 580XBalance 580XOptional FlexModule; up to 8 SIM4 Gbps500 MbpsHigh-WAN-count enterpriseBuy →
PDF ↓ · Manual

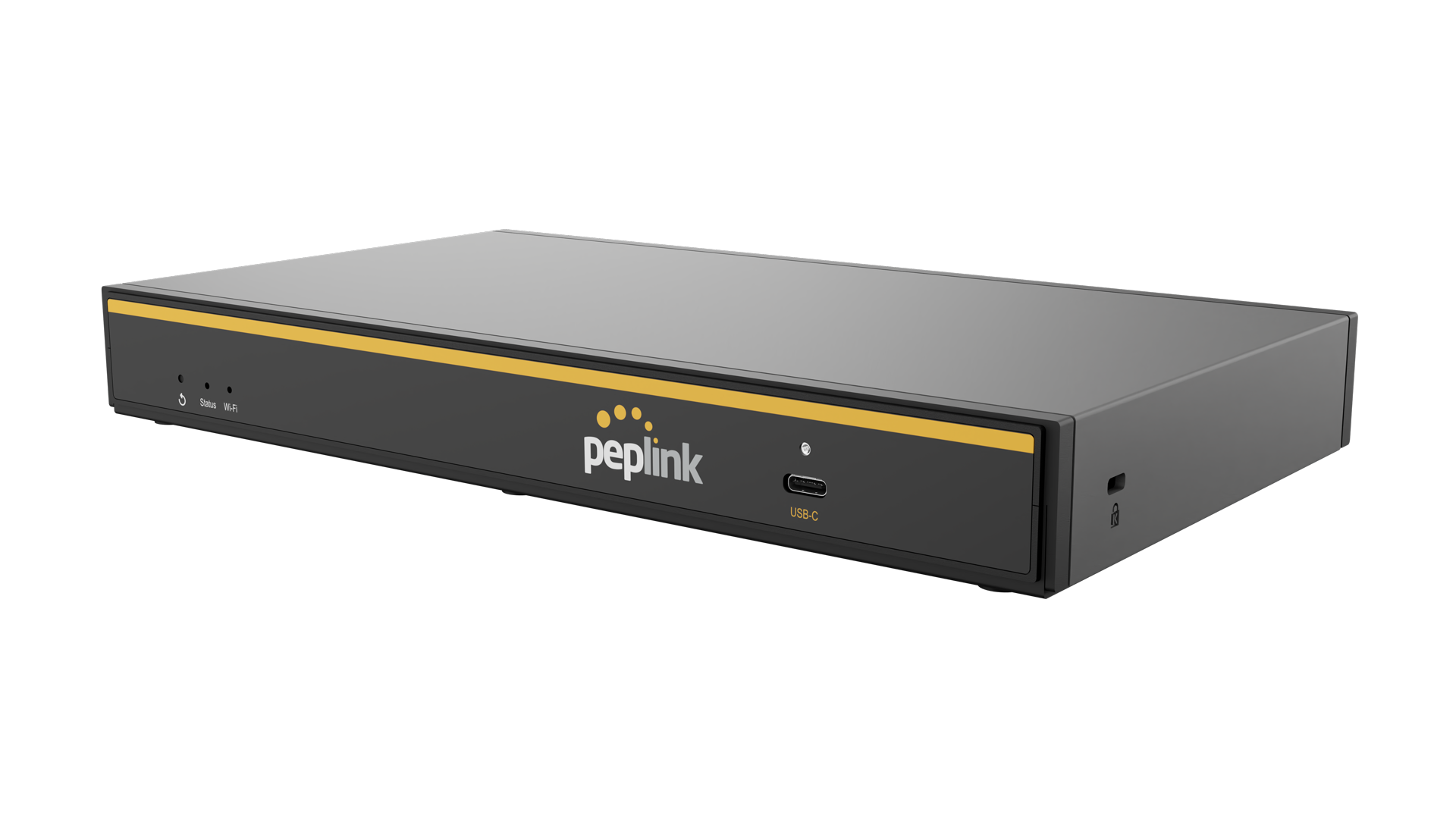

B OneB One / B One Plus / B One 5GNone / LTE / 5G1 Gbps200 MbpsCost-effective branch & retailBuy →
PDF ↓ · Manual

Aggregation hubs (HQ & data-center edge)

ModelStatefulSpeedFusion (AES)Best forBuy
Balance 1350 ECBalance 1350 EC25 Gbps2 GbpsFiber WAN aggregation with edge computeBuy →
PDF ↓ · Manual
Balance 2500Balance 2500 / 2500 EC8–30 Gbps2–10 GbpsCarrier / large-enterprise aggregationBuy →
PDF ↓ · Manual
Balance 5000 ECBalance 5000 EC70 Gbps30 GbpsCarrier-grade 40G/100G aggregationBuy →
PDF ↓ · Manual

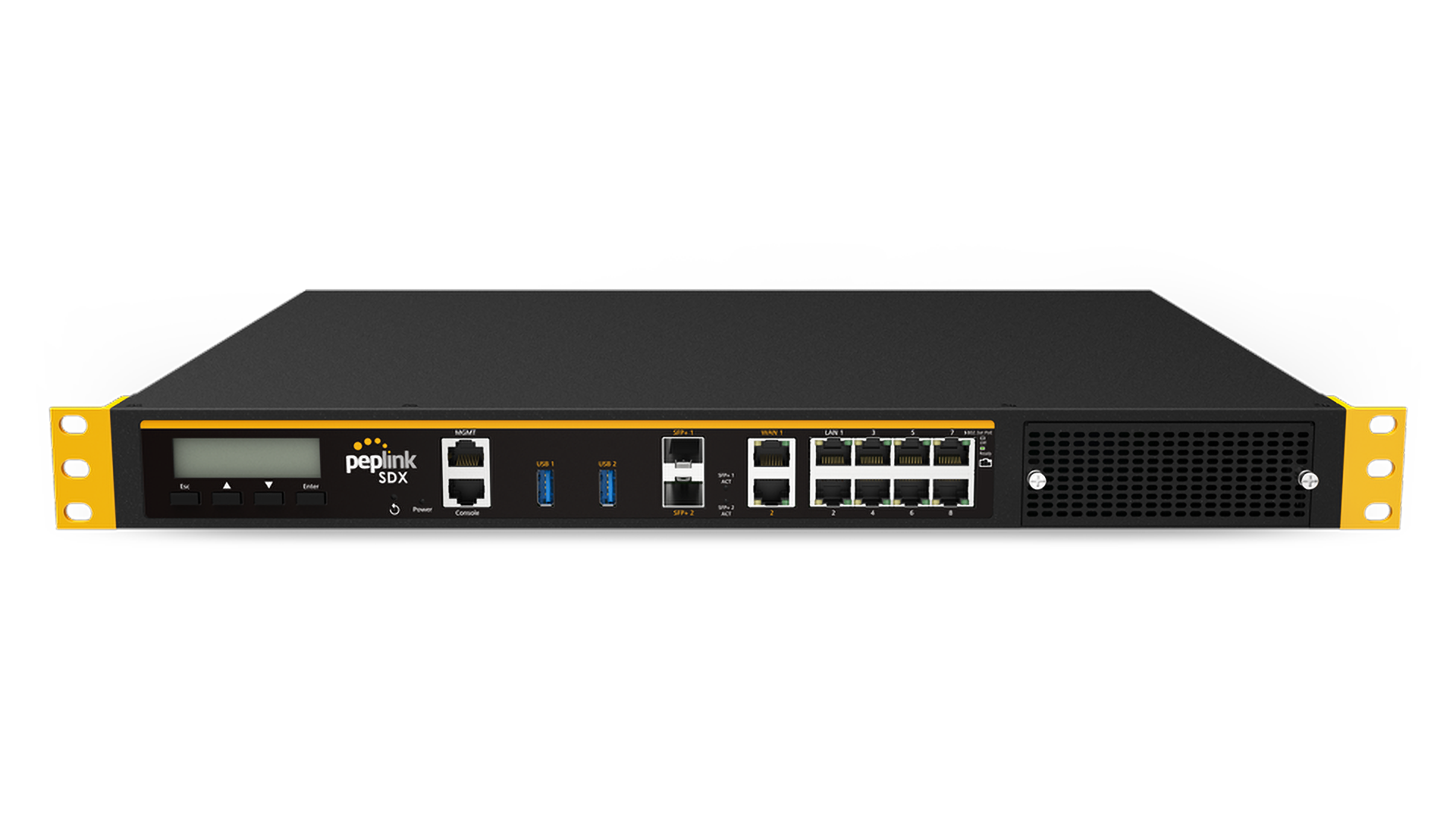

SDXSDX / SDX Pro12–24 Gbps600 MbpsModular branch/HQ, many cellular WANsBuy →
PDF ↓ · Manual

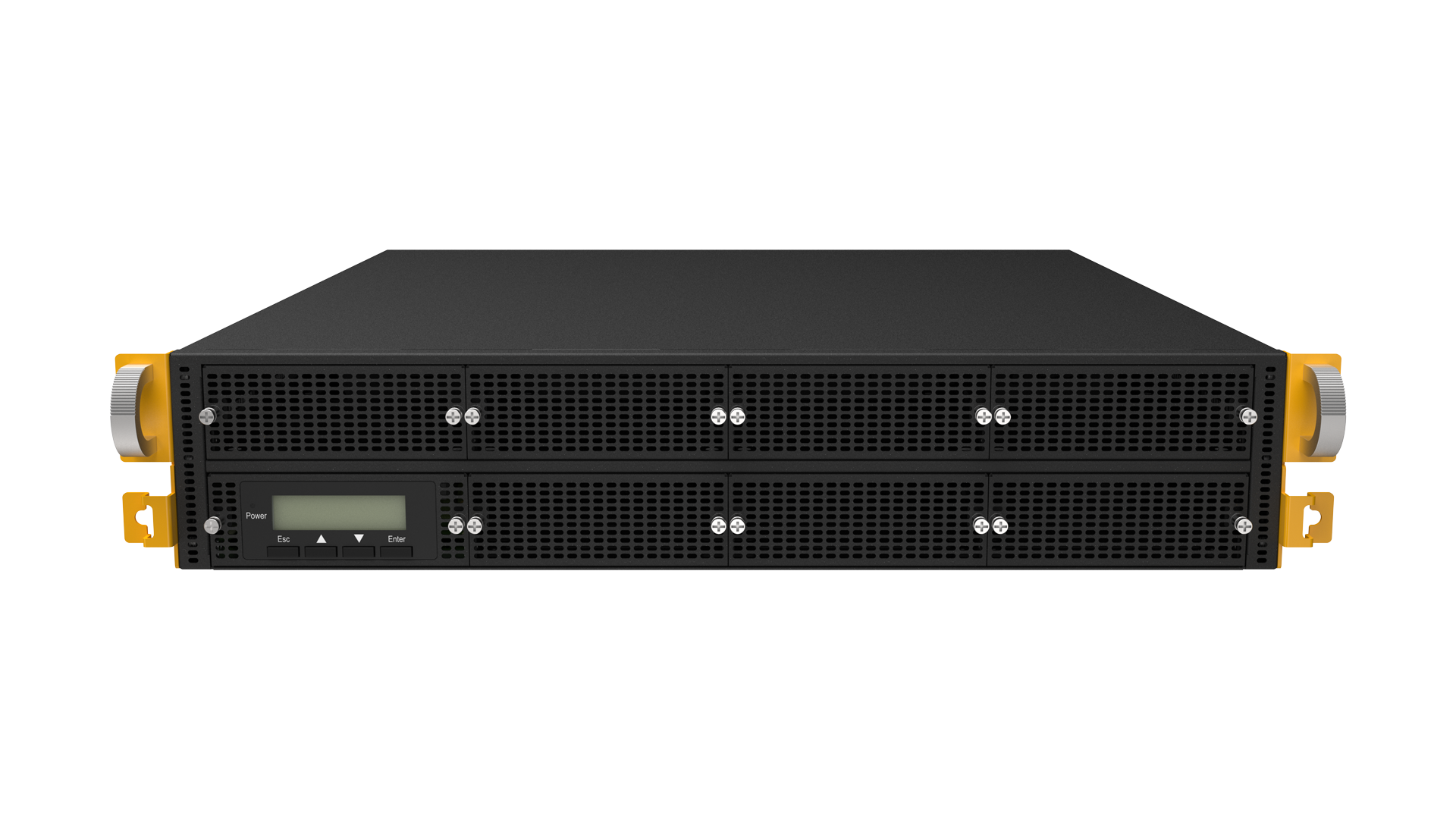

EPXEPX30 Gbps4 GbpsLarge-scale modular WAN aggregationBuy →
PDF ↓ · Manual

Mobile routers (vehicle, transit, field)

ModelCellularSpeedFusion (AES)Best forBuy
BR1 MiniBR1 Mini / BR1 Mini 5G1× LTE / 5G, redundant SIM60 MbpsAffordable single-cellular failover / mass IoTBuy →
PDF ↓ · Manual
BR1 Pro 5GBR1 Pro 5G / Pro CAT-201× 5G or Cat-20, redundant SIM200 MbpsRugged 5G branch or vehicleBuy →
PDF ↓ · Manual
BR2 ProBR2 / BR2 Pro2× LTE / dual-5G, redundant SIM60–200 MbpsTwo-carrier vehicle/branch bondingBuy →
PDF ↓ · Manual

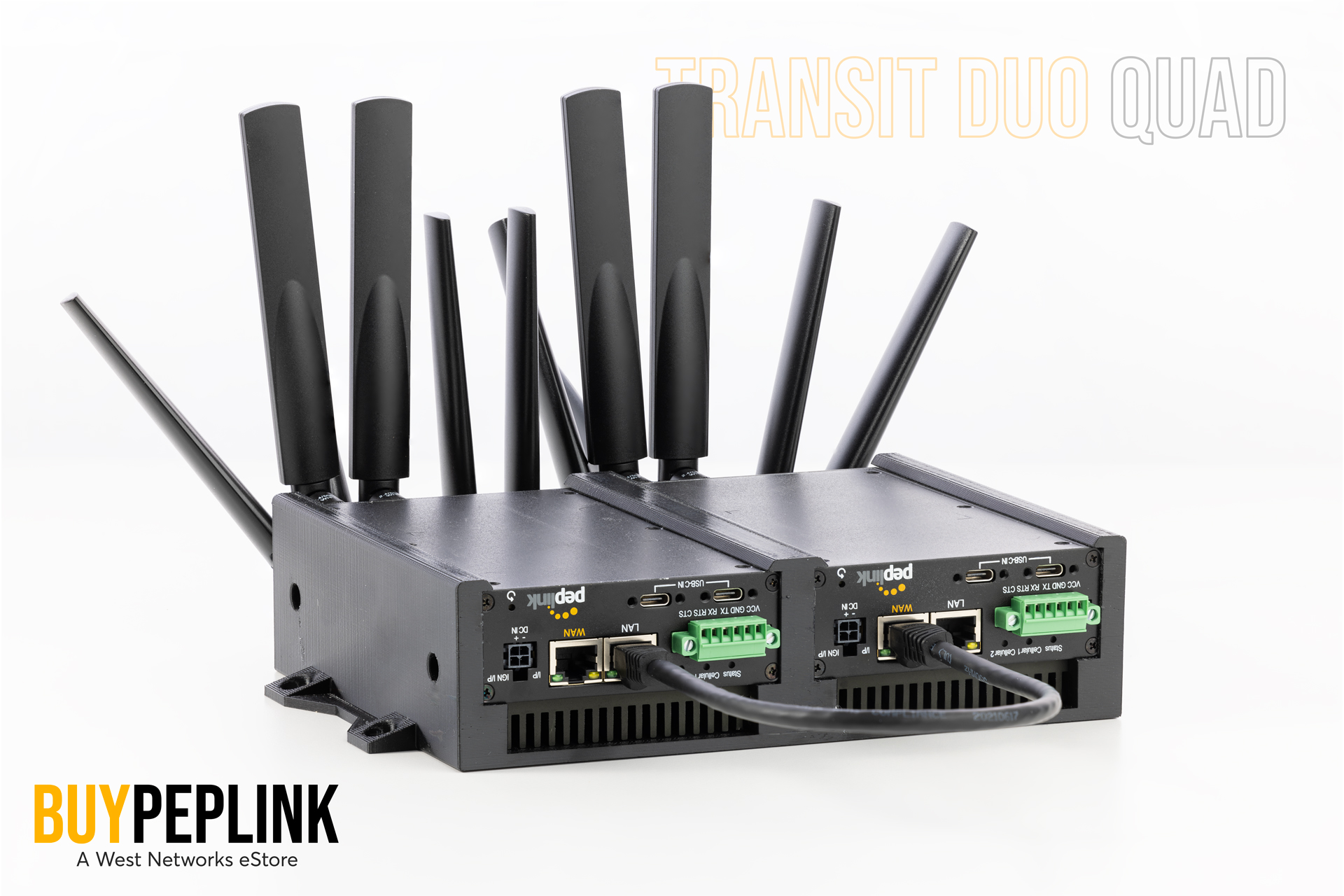

MAX Transit ProTransit Pro / Pro E2× 5G/LTE-A, redundant SIM200 MbpsPremium dual-5G transit/coach Wi-FiBuy →
PDF ↓ · Manual
PDX / PDX 5G2–4× cellular500 MbpsRugged high-throughput mobile hubBuy →
PDF ↓ · Manual

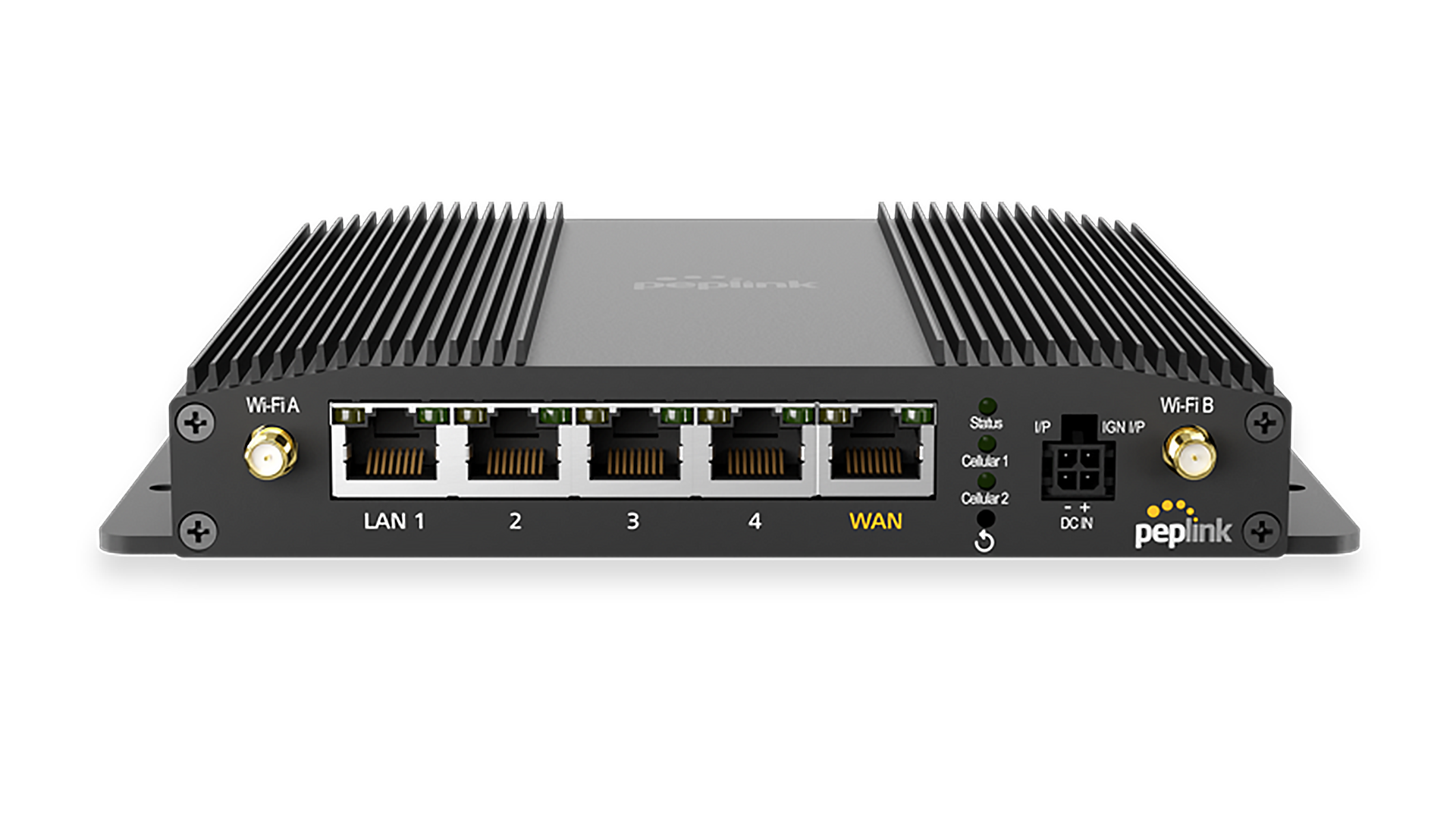

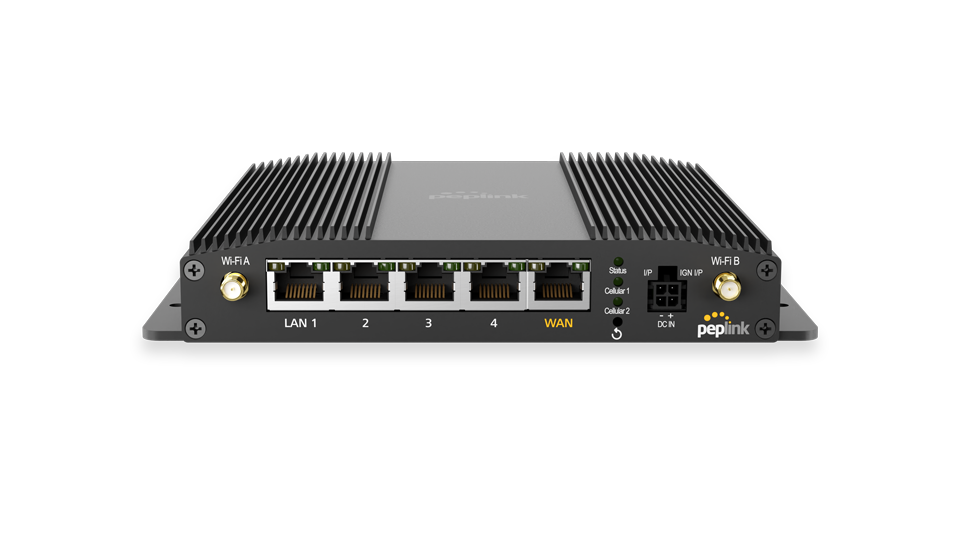

UBR PlusUBR Plus2× Cat-7/6, eSIM60 MbpsCompact dual-modem mobile bondingBuy →
PDF ↓ · Manual

High-capacity mobility (maritime & broadcast)

ModelCellularSpeedFusion (AES)Best forBuy

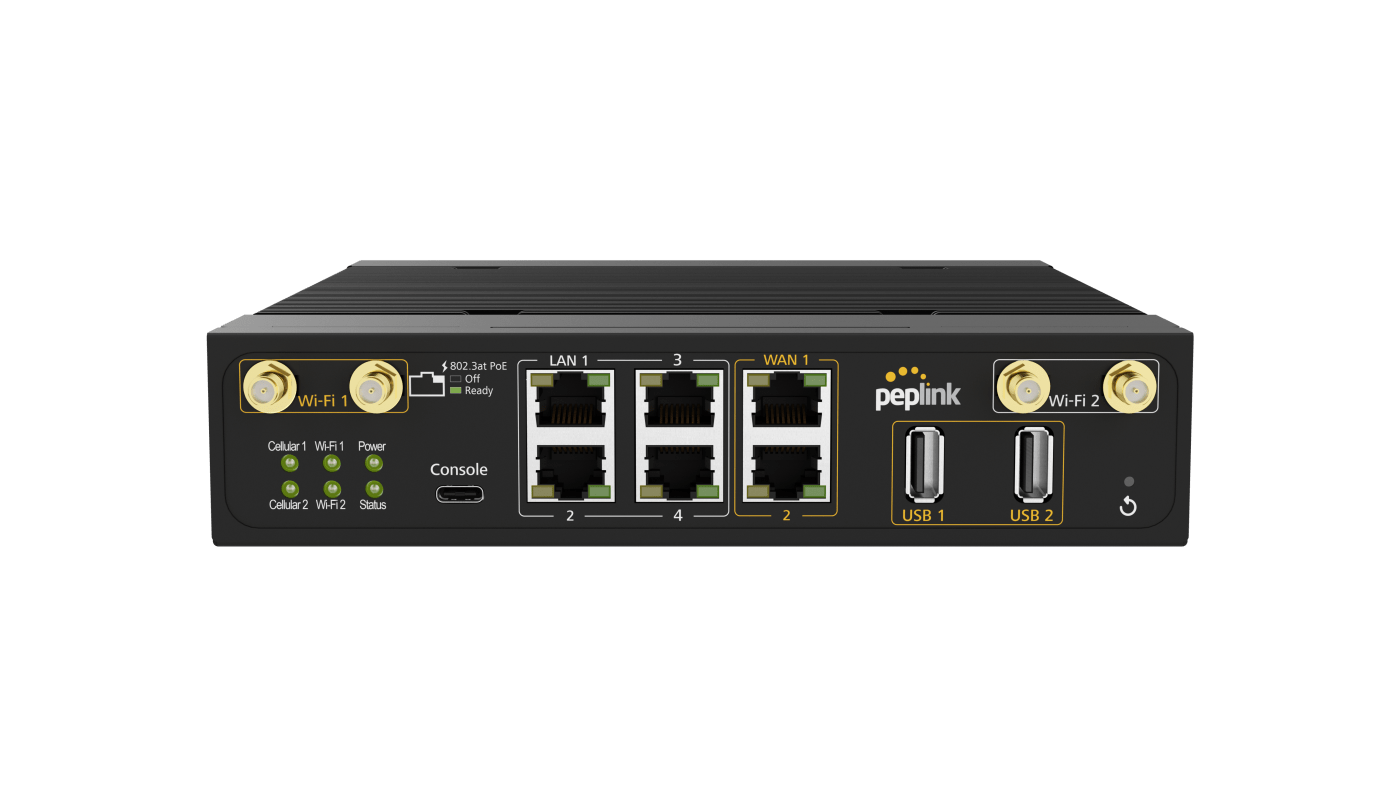

MBX Mini 5GMBX Mini 5G2× 5G, redundant SIM500 MbpsCompact dual-5G mobilityBuy →
PDF ↓ · Manual
HD MBXHD2 MBX / HD4 MBX (5G)2 or 4× 5G, redundant SIM500 MbpsMax bonded 5G for vessels & broadcastBuy →
PDF ↓ · Manual

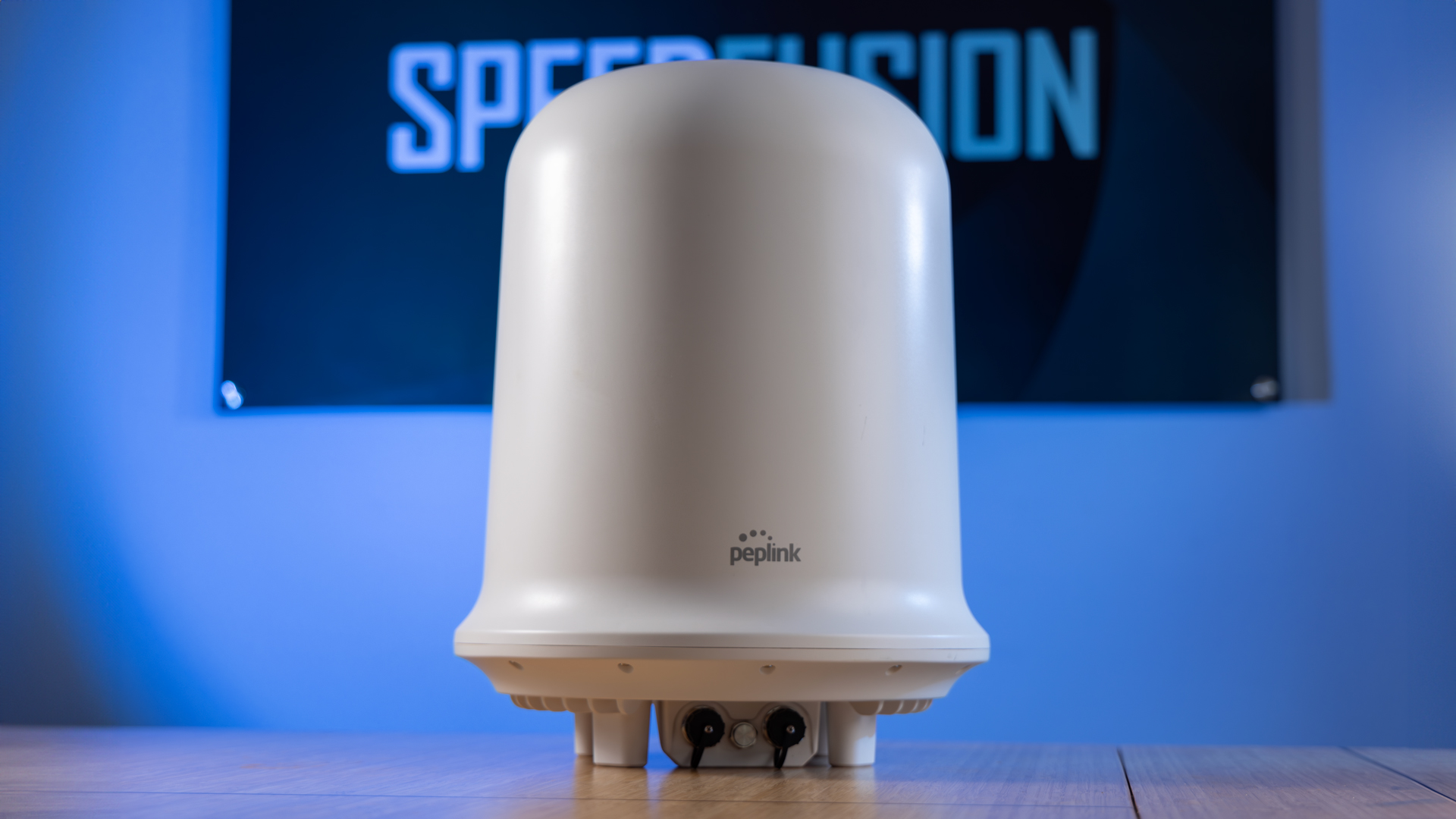

HD DomeHD1 Dome Pro / Dome Pro Duo / LR1–2× 5G, sealed antenna-routerup to 200 MbpsSingle-cable sealed 5G for vehicles/vesselsBuy →
PDF ↓ · Manual

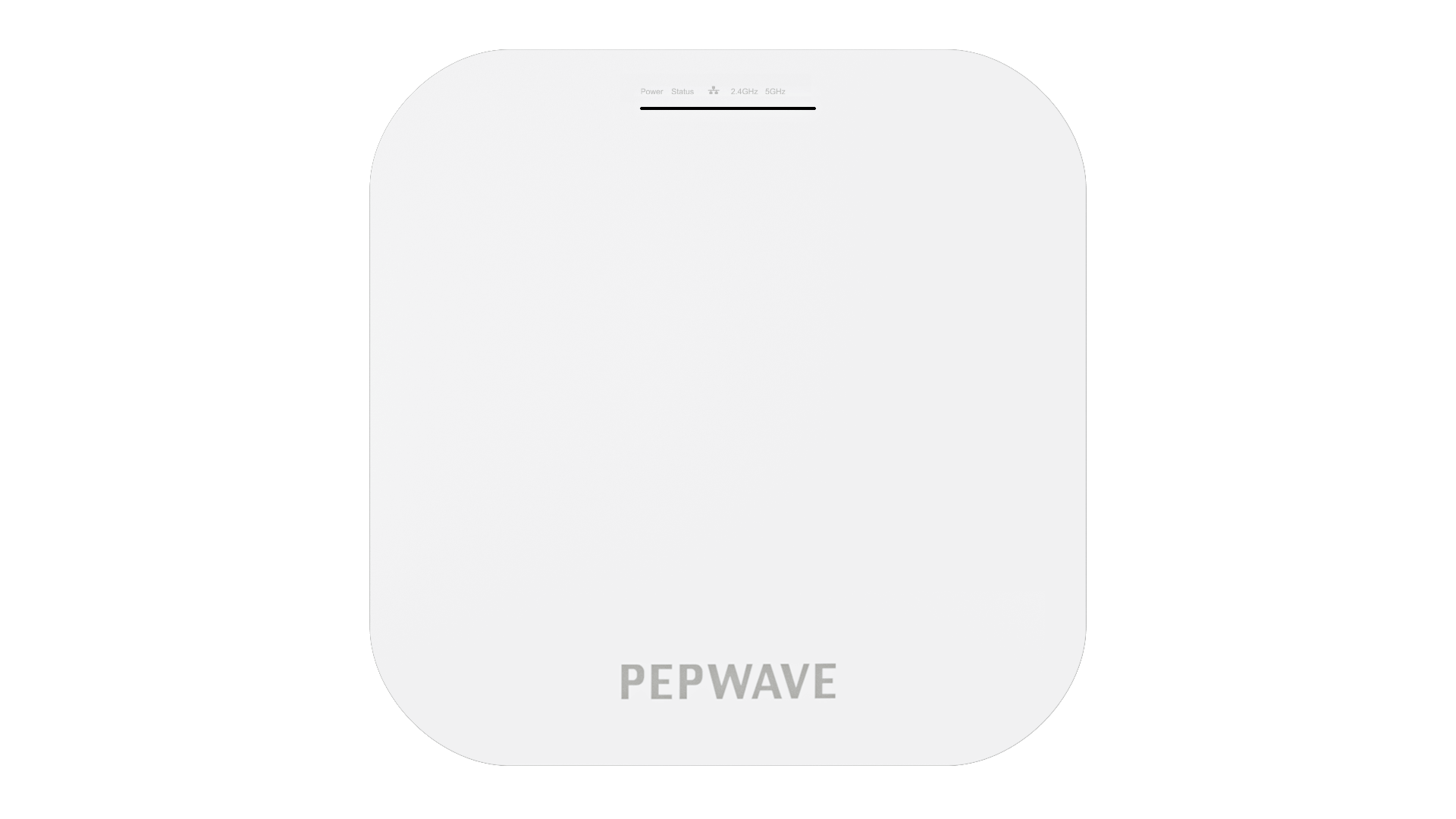

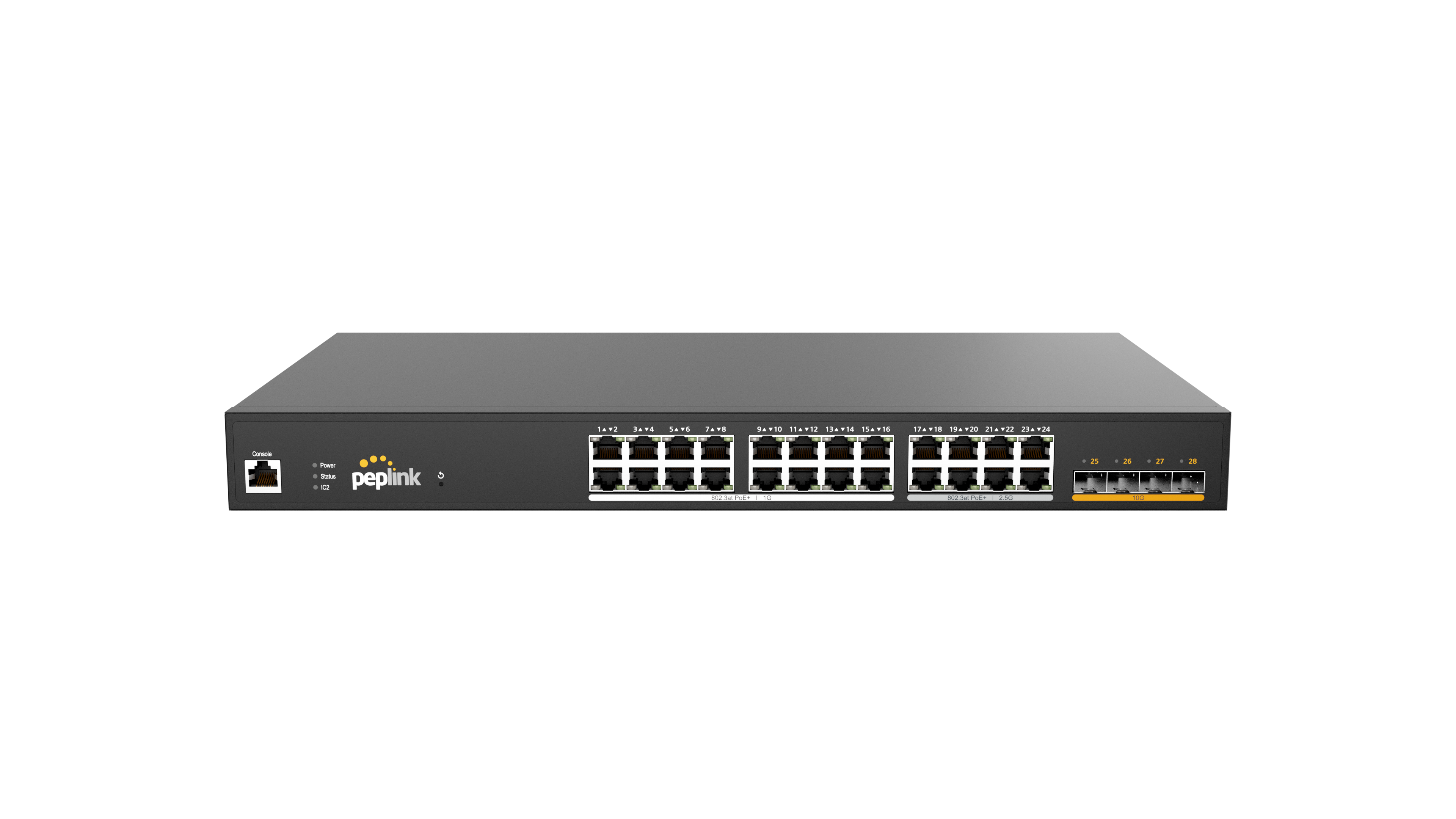

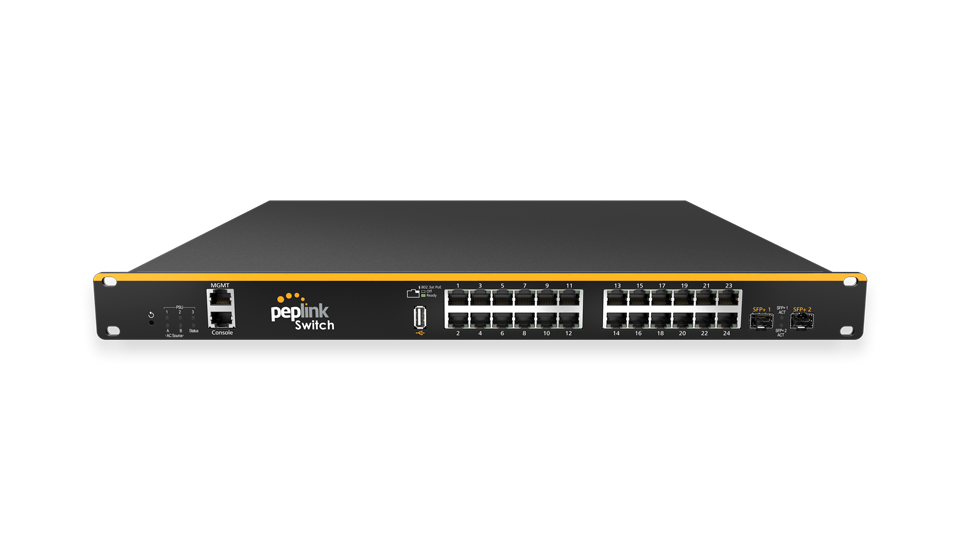

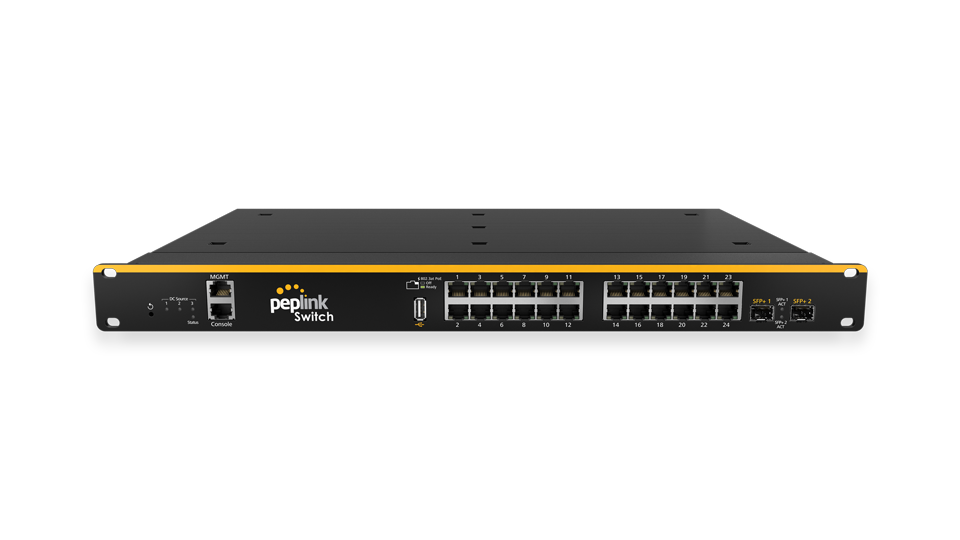

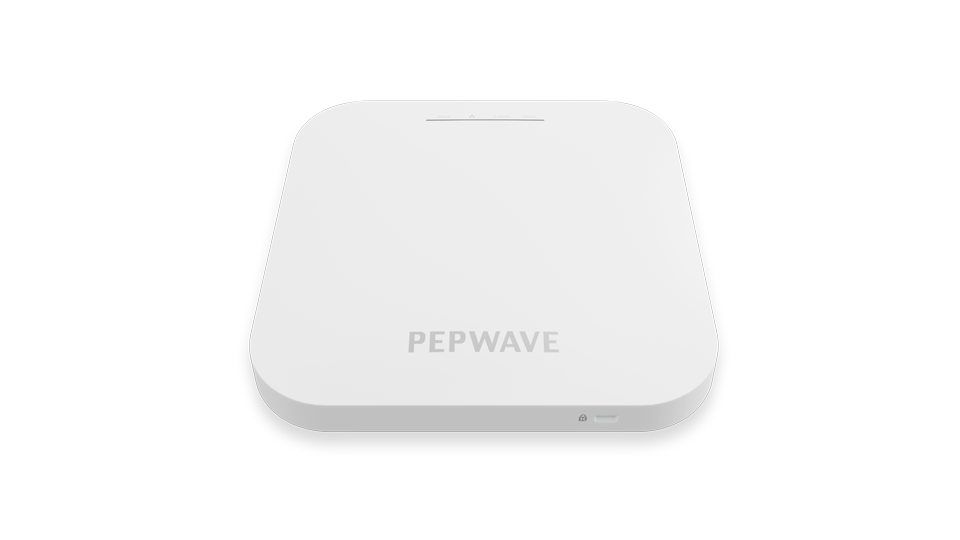

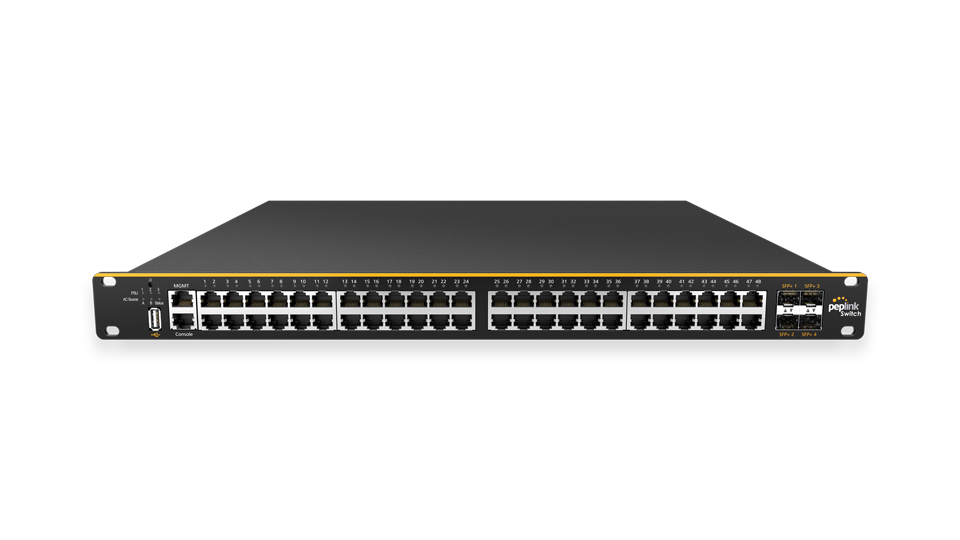

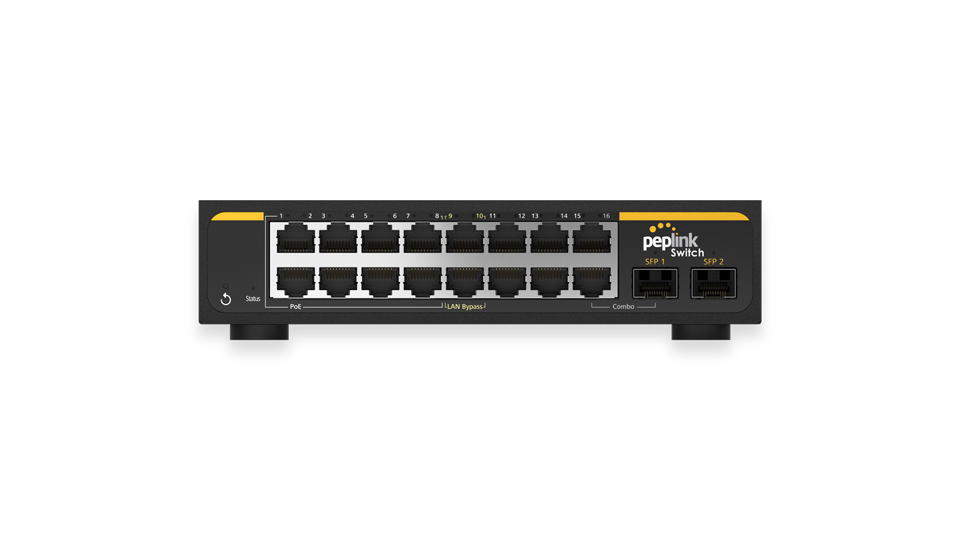

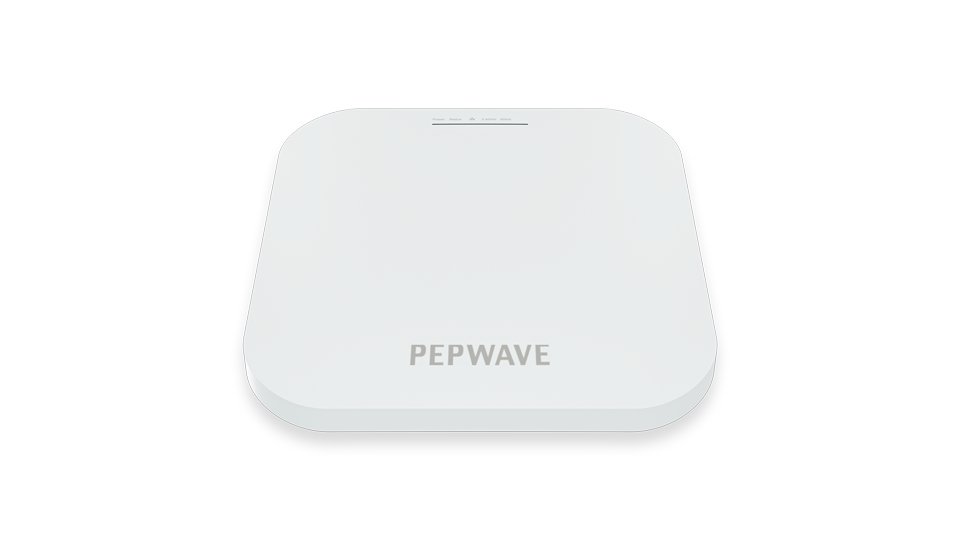

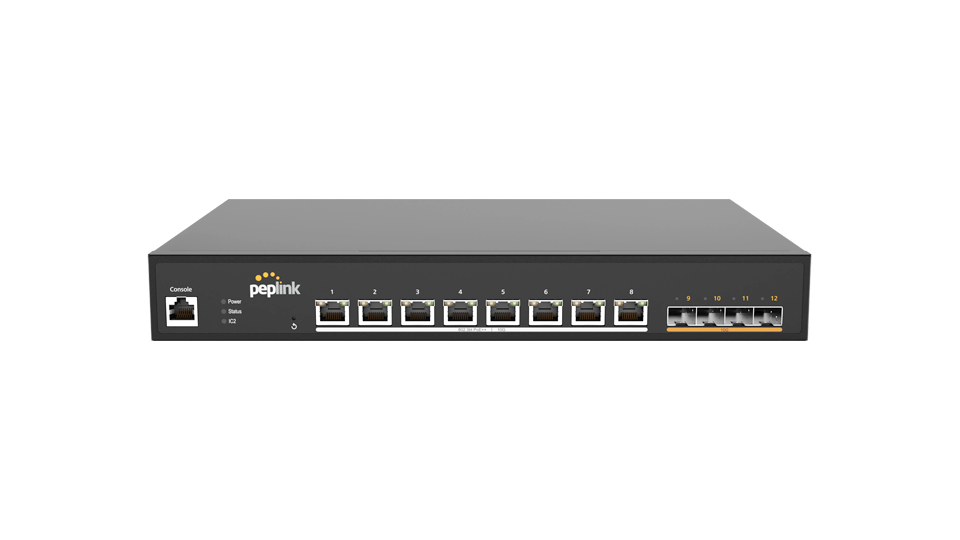

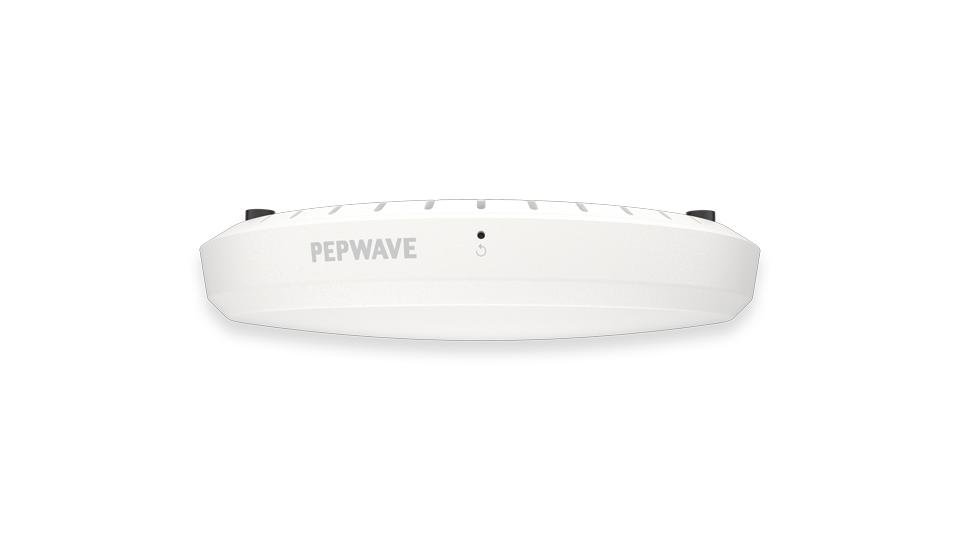

Switches, Wi-Fi & the cloud endpoint

Proven in the field

  • NET25 (broadcast) kept a New Year’s Eve livestream unbreakable on a Balance.
  • SIEM Shipping (maritime) integrated Starlink + 5G + Iridium on a B One via InControl.
  • Heathgate Resources (mining) reached ~1.3 Gbps bonding Starlinks to an EPX after a fire cut their microwave link.
  • A global cruise operator bonded cellular + VSAT on a Balance 2500 across the Mediterranean and Caribbean.
  • A marine engineering & construction firm, with West Networks, replaced MPLS with 4× SDX, 20× SD Switch and 28× AP One Enterprise — eliminating a planned data center.

Own your network: Peplink hardware is bought once and it lasts — it keeps bonding and routing with or without an active warranty or the cloud. No forced subscription to stay online.

Shop the line & get a matched recommendation
Learn the platform: Peplink 101

The Complete Peplink Product Line — with specs

Every current Peplink router, switch, and access point, with the specs that actually decide a deployment — pulled from Peplink’s own product matrix. Model names link to the official product page; Shop opens our store. Need help choosing? Use the Kit Selector or talk to an expert.

Routers & SD-WAN Appliances

Mobility

ModelThroughputSpeedFusion (AES)WAN / LAN5GRec. usersDatasheetShop

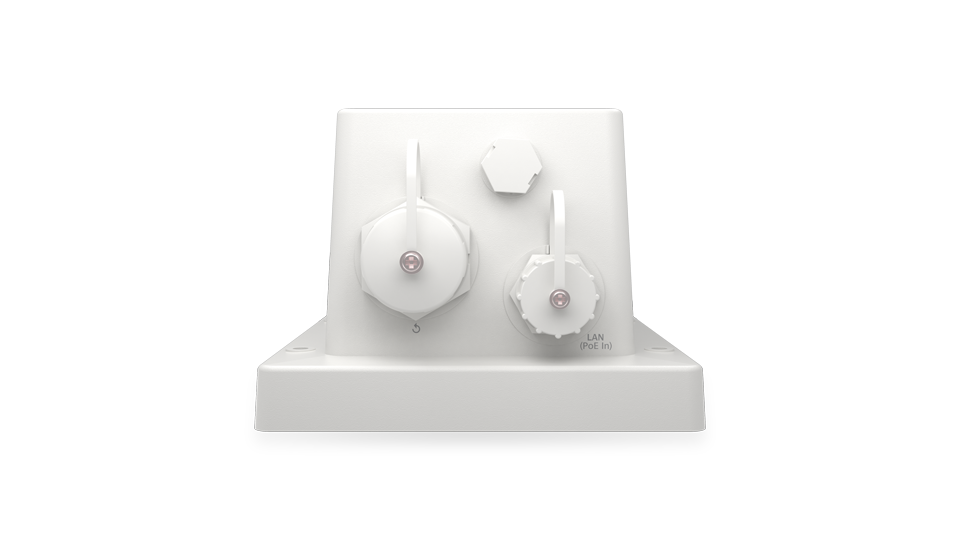

BR1 IP67100Mbps20MbpsNo / 1 (FE)No1–60—Shop →
BR1 Mini300Mbps60Mbps0 / 1 (GE) / 3 / 2 (GE)No1–60—Shop →

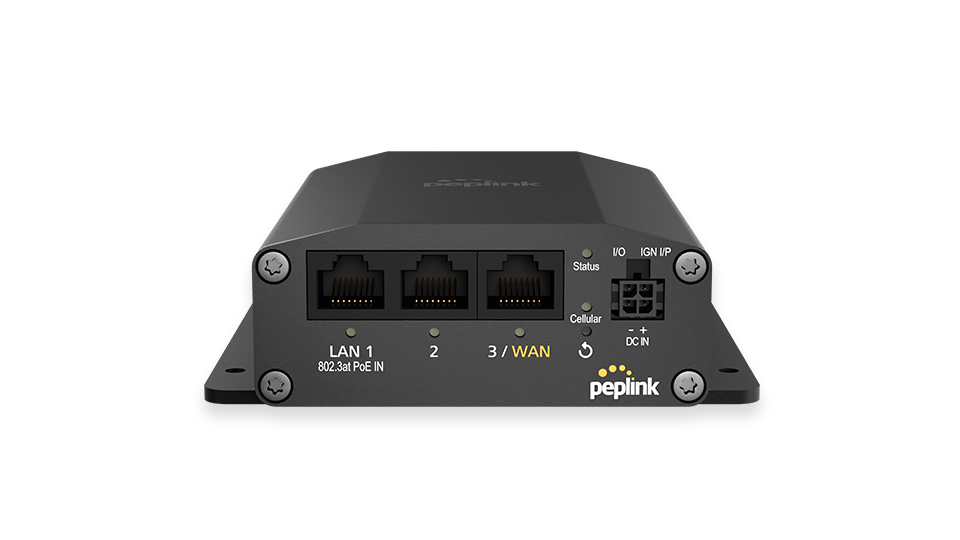

BR1 Mini 5G300Mbps60Mbps0 / 1 (GE) / 3 / 2 (GE)Yes1–60—Shop →

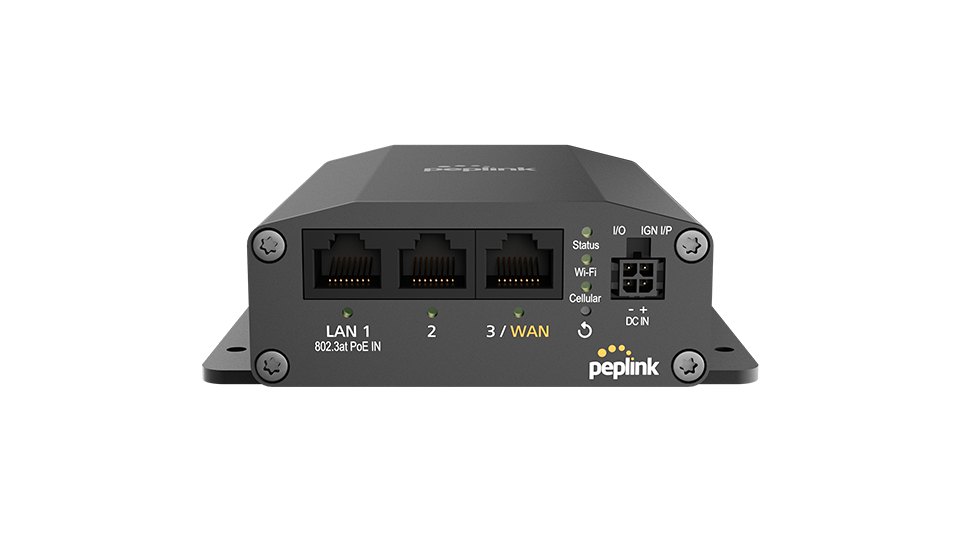

BR1 Mini 5G (Wi-Fi)300Mbps60Mbps0 / 1 (GE) / 3 / 2 (GE)Yes1–60—Shop →

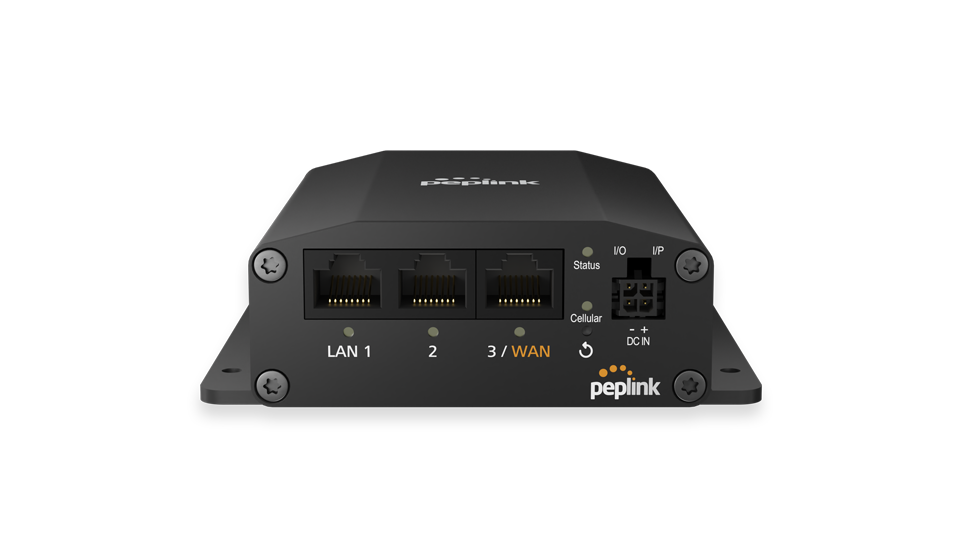

BR1 Mini Core300Mbps60Mbps0 / 1 (GE) / 3 / 2 (GE)No1–60—Shop →

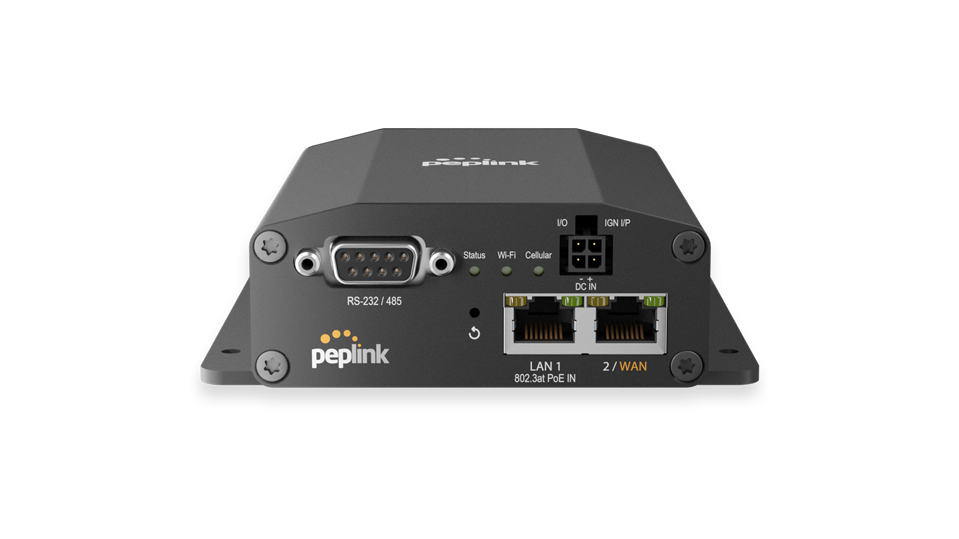

BR1 Mini M2M300Mbps60Mbps0 / 1 (GE) / 2 / 1 (GE)No1–60PDF ↓Shop →

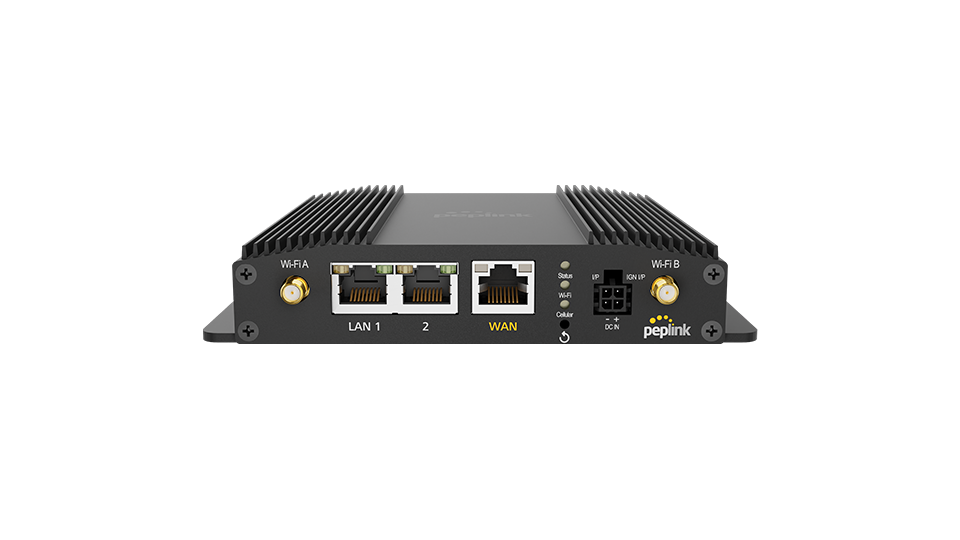

BR1 Pro (CAT-20)1Gbps200Mbps1 / 0 (2.5G) / 2 / 3 (GE)No1–150PDF ↓Shop →
BR1 Pro 5G1Gbps200Mbps1 / 0 (2.5G) / 2 / 3 (GE)Yes1–150PDF ↓Shop →

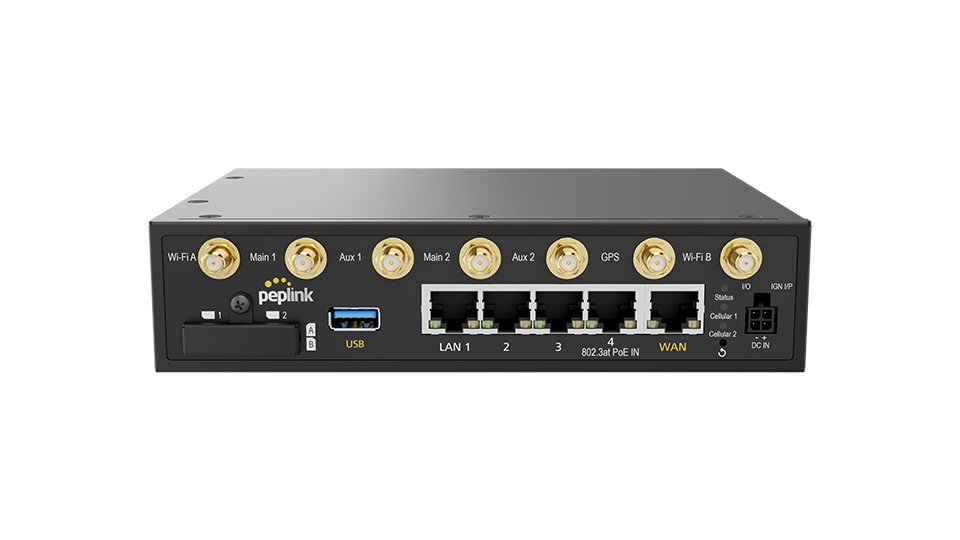

BR2300Mbps60Mbps1 (GE) / 4 (GE)No1–60PDF ↓Shop →

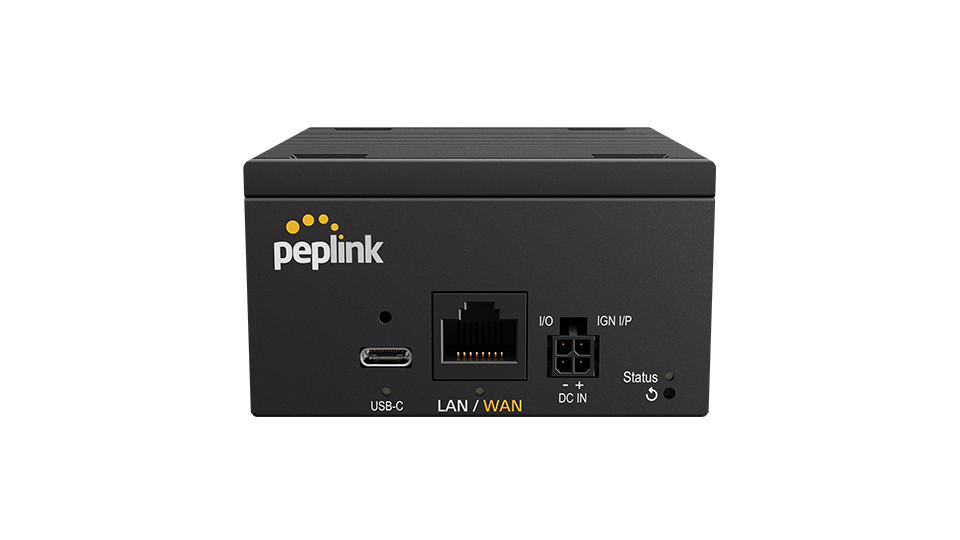

BR2 Micro300Mbps60Mbps0 / 1 (GE) / 1 / 0 (GE)No1–60PDF ↓Shop →

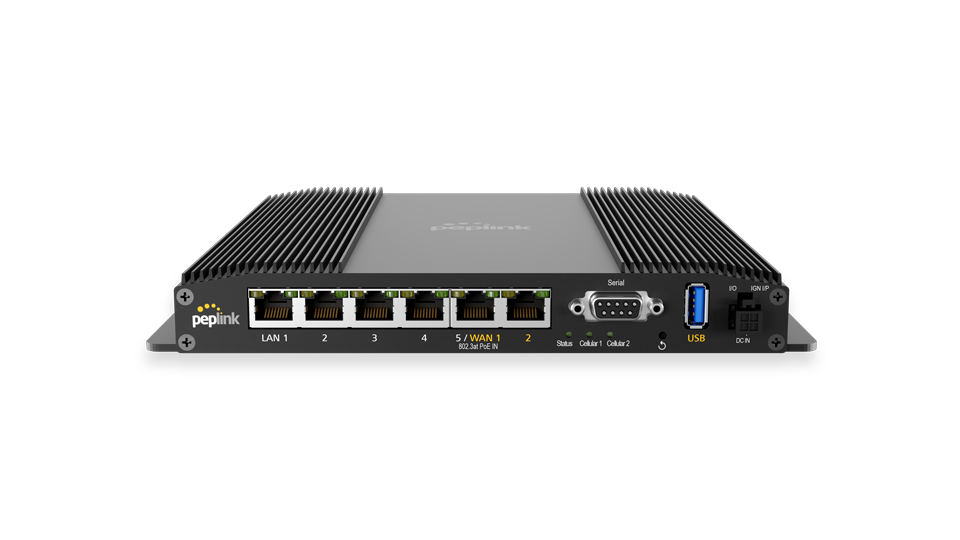

BR2 Pro1Gbps200Mbps2 / 1 (2.5G) / 4 / 5 (GE)Yes1–150PDF ↓Shop →

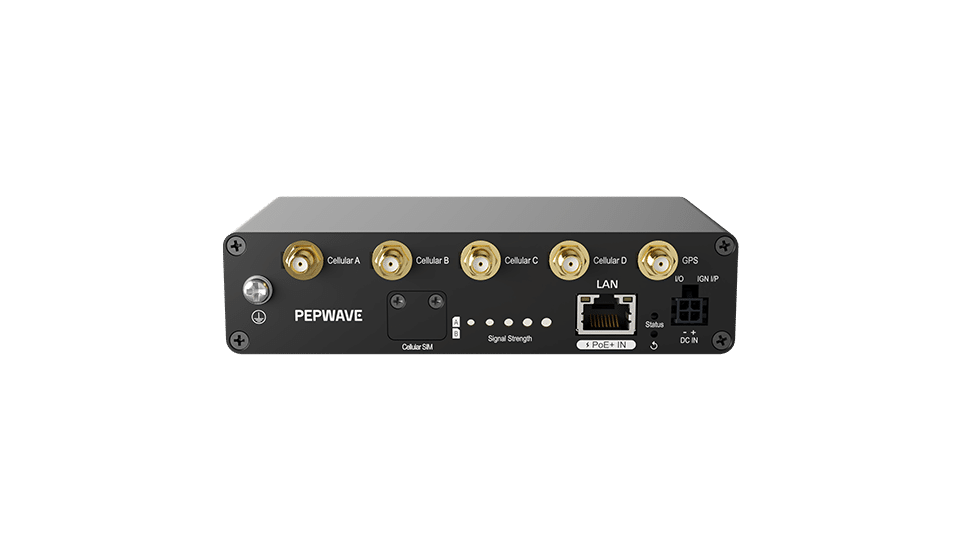

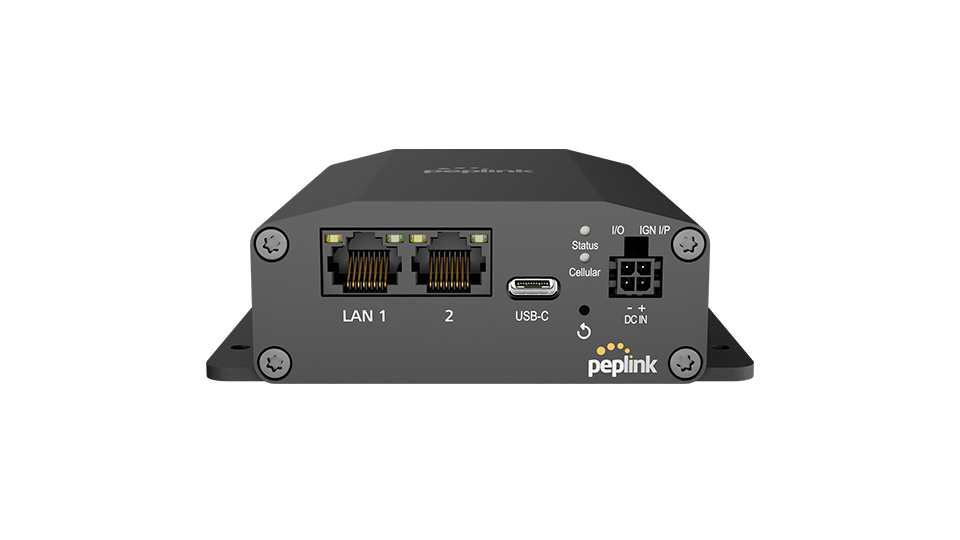

MAX AdapterCAT4 SpecNo0.0 / 2 (GE)No1–60PDF ↓Shop →

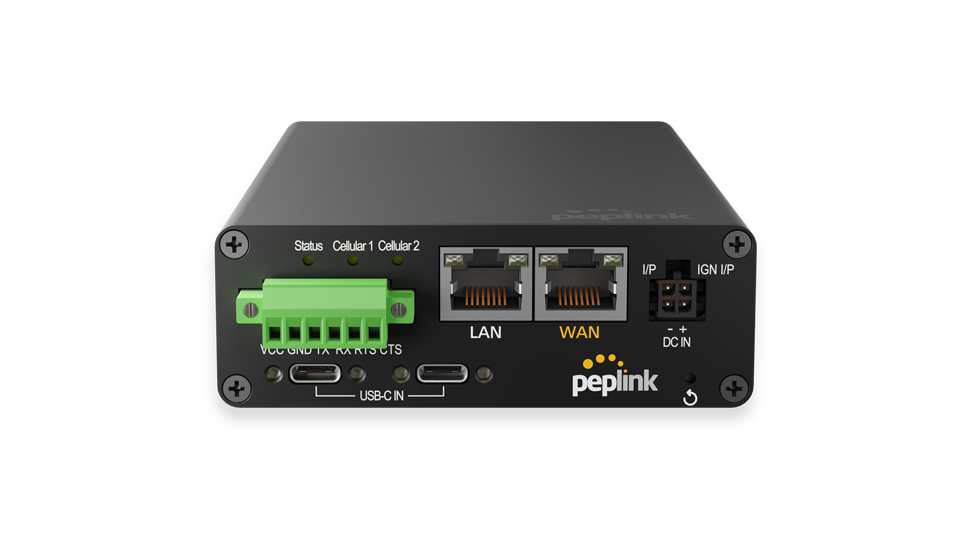

Transit Duo Pro1Gbps200Mbps1 / 0 (GE) / 1 / 2 (GE)No25–150—Shop →

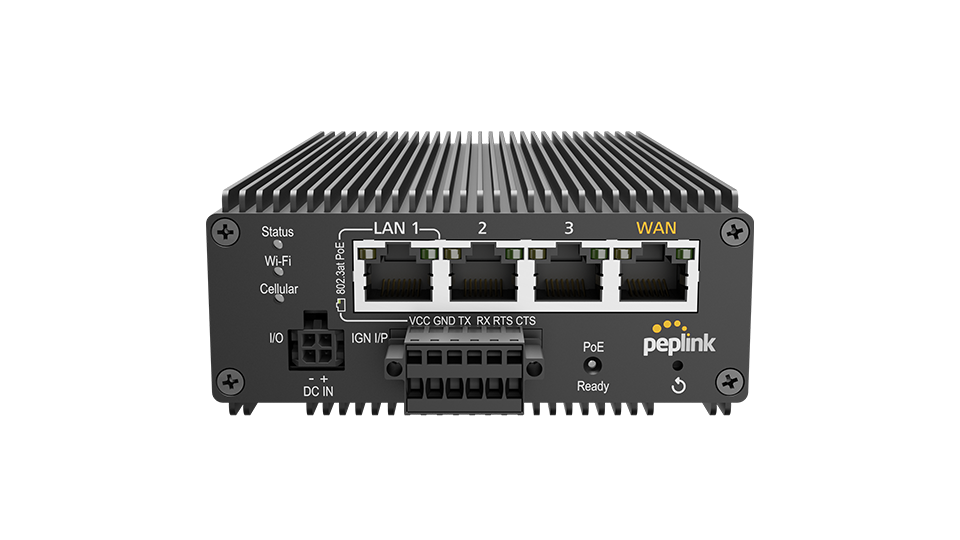

Transit Pro E1Gbps200Mbps1 / 0 (GE) / 3 / 4 (GE)Yes25–150PDF ↓Shop →

Enterprise Mobility

ModelThroughputSpeedFusion (AES)WAN / LAN5GRec. usersDatasheetShop

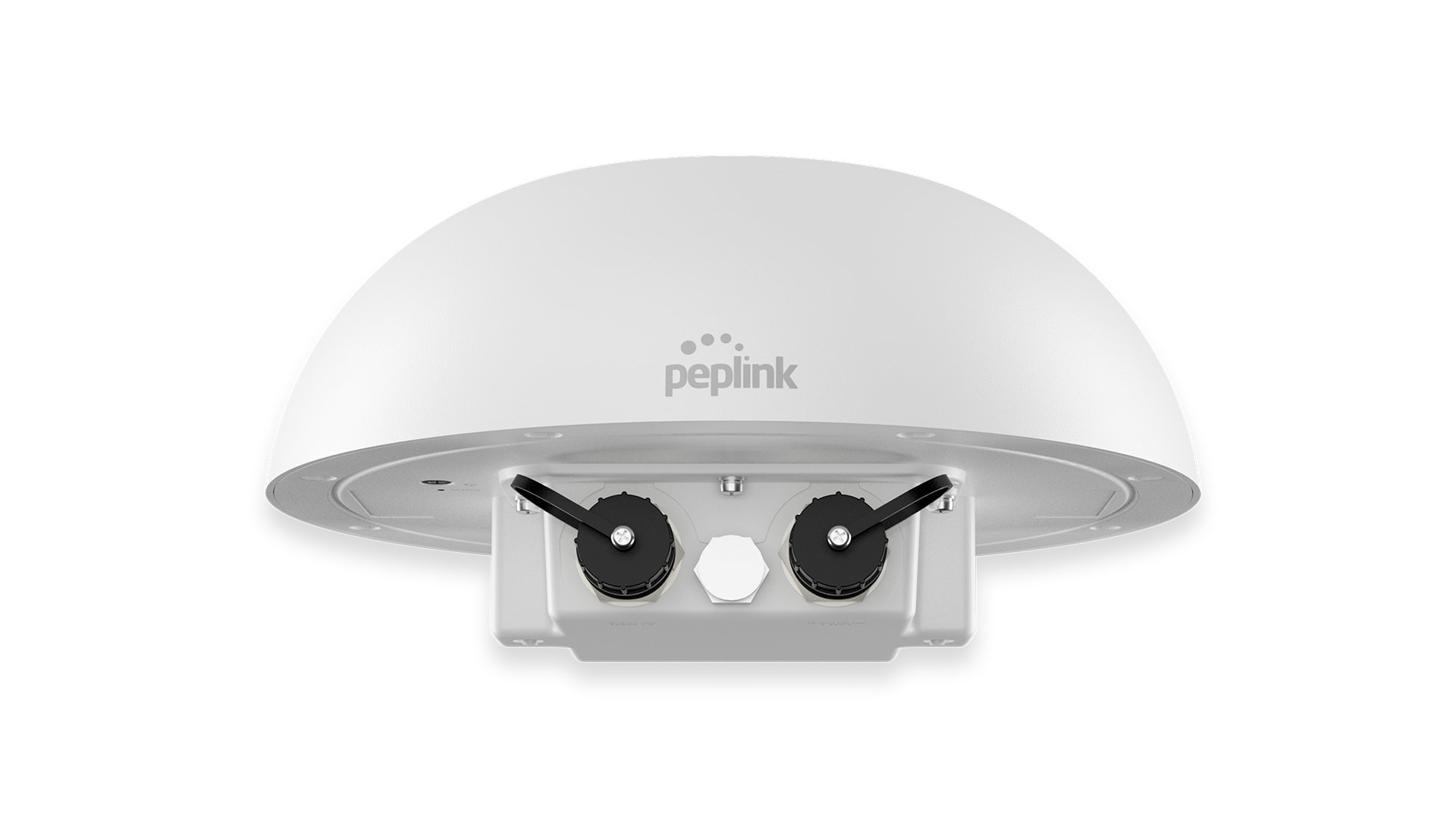

Dome Pro Duo1Gbps200Mbps1 / 0 (GE) / 1 / 2 (2.5G)Yes1–150PDF ↓Shop →

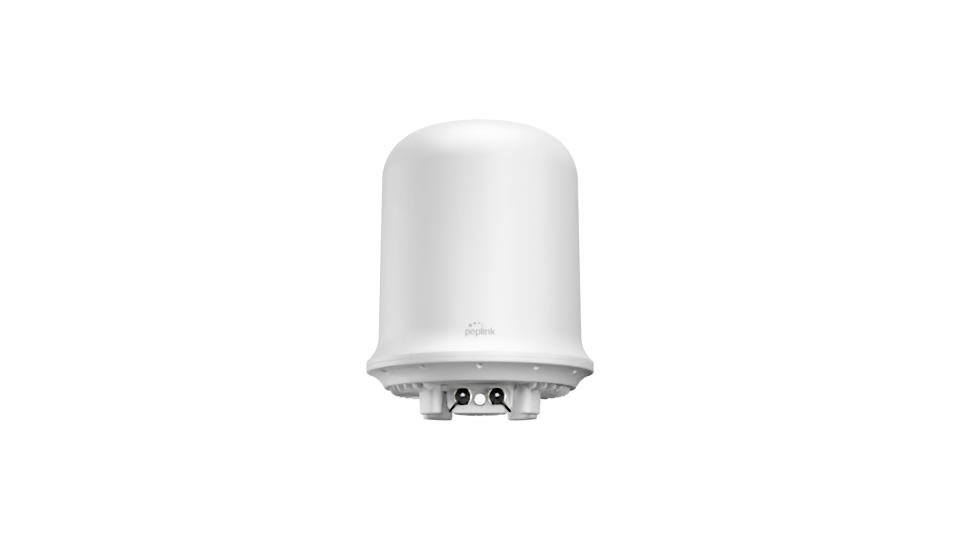

Dome Pro LR1Gbps200Mbps1 / 0 (GE) / 1 / 2 (2.5G)Yes1–150PDF ↓Shop →

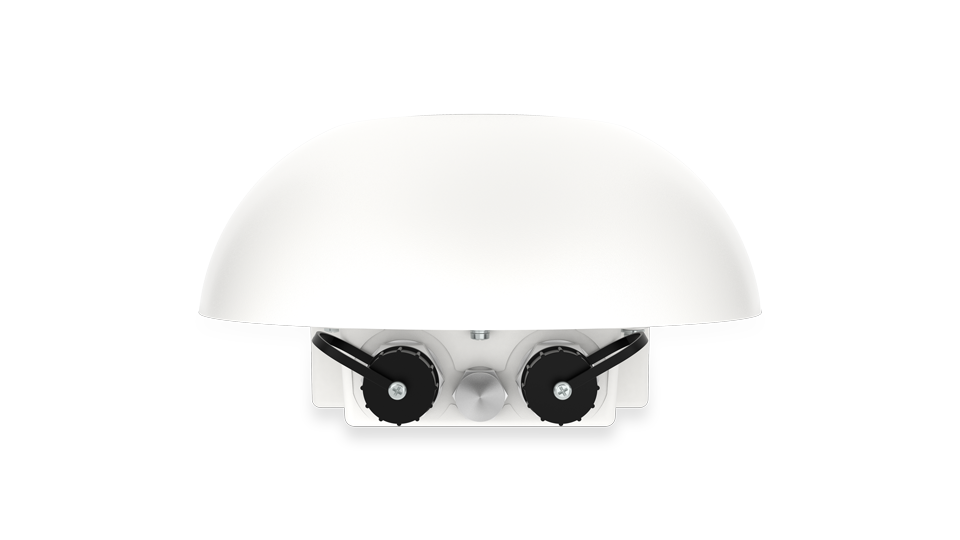

HD1 Dome ProNA200MbpsNo / 1 (GE)Yes1–150—Shop →
HD2 MBX2.5Gbps500Mbps3 / 2 (GE) / 8 / 9 (GE)No50–500—Shop →
HD2 MBX 5G2.5Gbps500Mbps3 / 2 (GE) / 8 / 9 (GE)Yes50–500—Shop →
HD2 MBX EC2.5Gbps500Mbps3 / 2 (GE) / 8 / 9 (GE)Yes50–500—Shop →
HD2 MBX MediaFast2.5Gbps500Mbps3 / 2 (GE) / 8 / 9 (GE)No50–500—Shop →
HD4 MBX2.5Gbps500Mbps3 / 2 (GE) / 8 / 9 (GE)No50–500—Shop →
HD4 MBX 5G2.5Gbps500Mbps3 / 2 (GE) / 8 / 9 (GE)Yes50–500—Shop →
HD4 MBX EC2.5Gbps500Mbps3 / 2 (GE) / 8 / 9 (GE)Yes50–500—Shop →

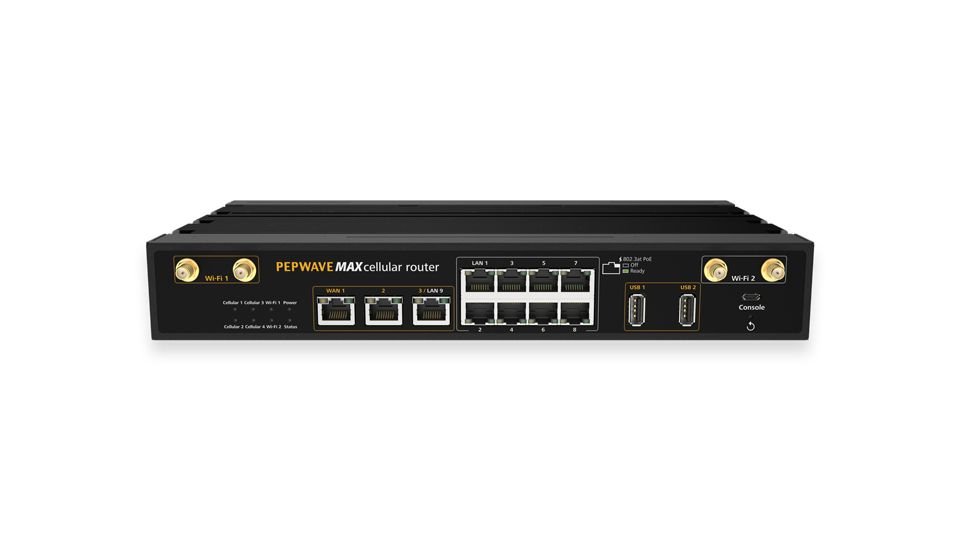

HD4 MBX MediaFast2.5Gbps500Mbps3 / 2 (GE) / 8 / 9 (GE)No50–500—Shop →

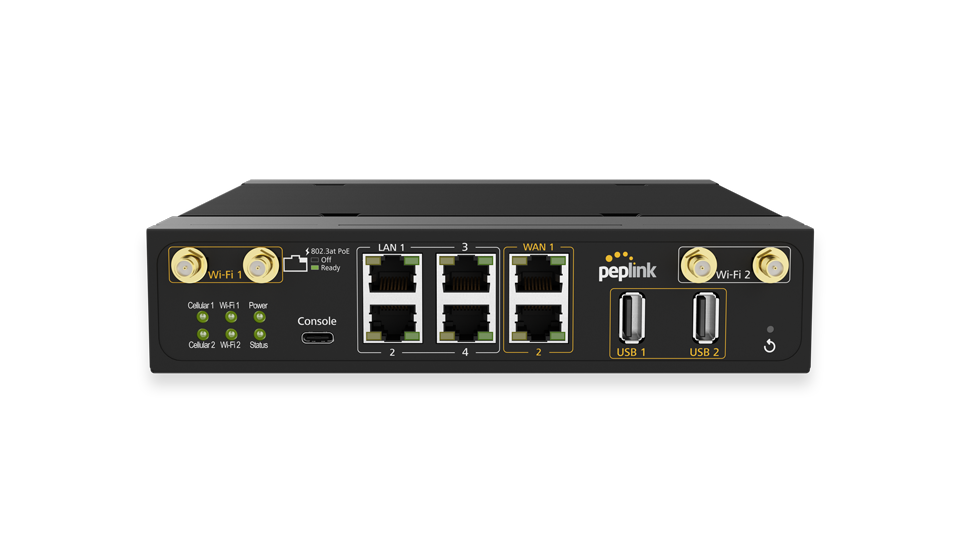

MBX Mini2.5Gbps500Mbps2 (GE) / 4 (GE)Yes50-500PDF ↓Shop →

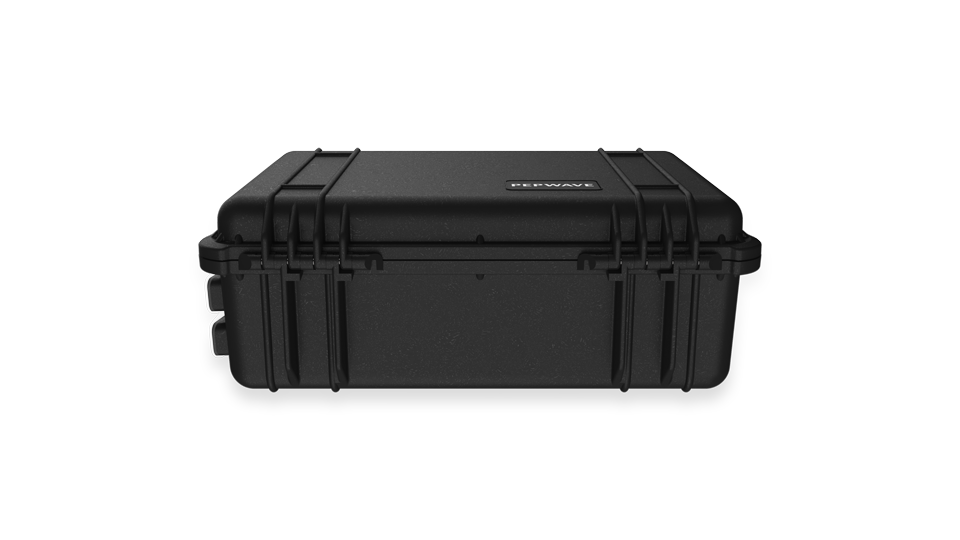

PDX2.5Gbps500Mbps2 (GE) / 7 (GE)Yes50-500PDF ↓Shop →

Enterprise Branch

ModelThroughputSpeedFusion (AES)WAN / LAN5GRec. usersDatasheetShop

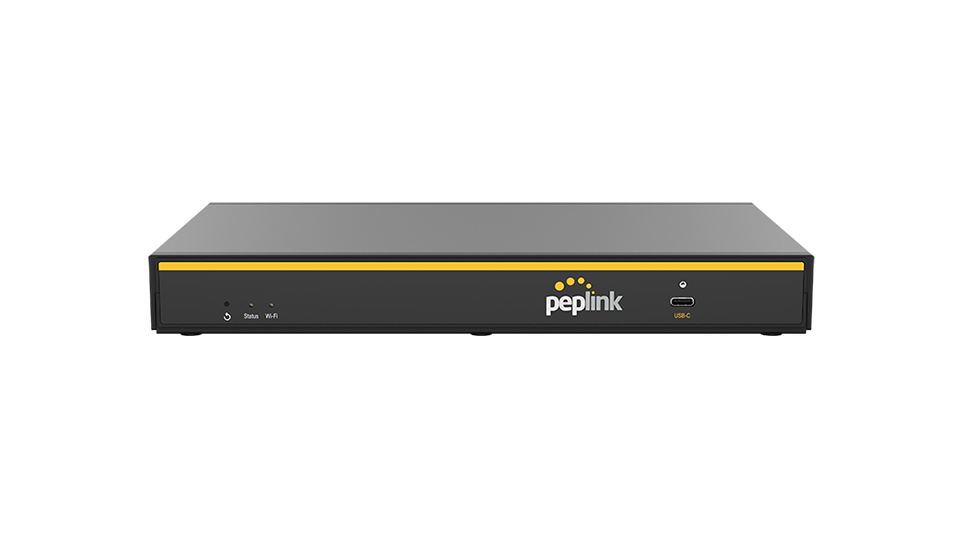

B One1Gbps200Mbps2 (GE) / 4 (GE)No1–150PDF ↓Shop →
B One 5G1Gbps200Mbps2 (GE) / 4 (GE)Yes1–150PDF ↓Shop →

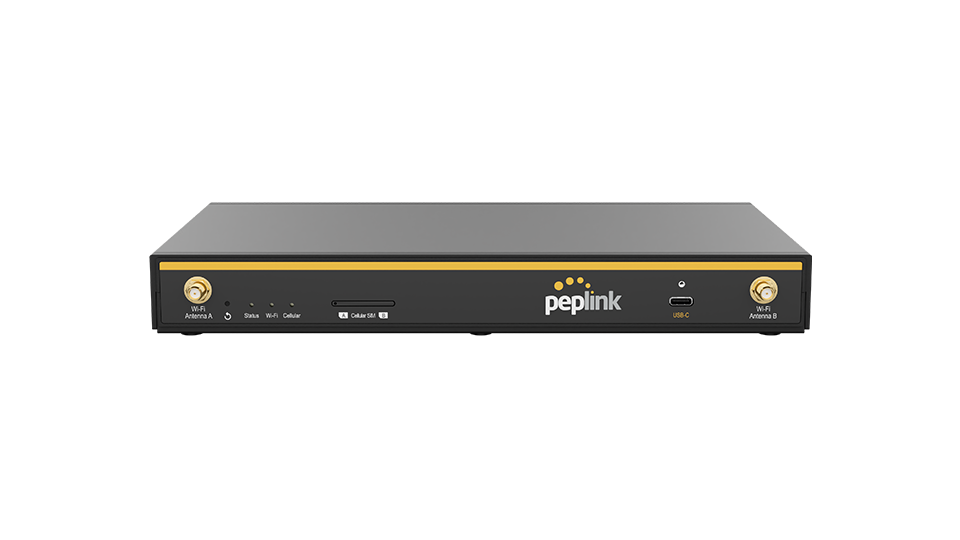

B One Plus1Gbps200Mbps2 (GE) / 4 (GE)No1–150PDF ↓Shop →
Balance 20X900Mbps60Mbps1 (GE) / 4 (GE)Yes1–60PDF ↓Shop →

Enterprise Router

ModelThroughputSpeedFusion (AES)WAN / LAN5GRec. usersDatasheetShop

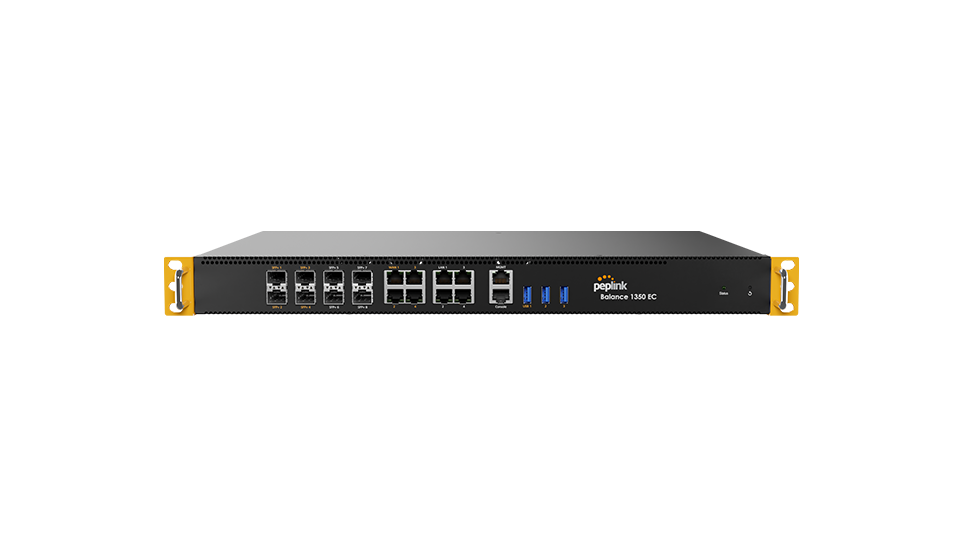

Balance 1350 EC25Gbps2Gbps4–8 (GE) / 4–8 (GE)No5000–10000PDF ↓Shop →
Balance 2500 EC30Gbps10Gbps0–16 (GE) / 0–16 (GE)No10000–20000+—Shop →
Balance 3104Gbps1Gbps2 (2.5GE) / 4 (10GE)No50–500—Shop →
Balance 310 5G1Gbps500Mbps1 (GE) / 5 (GE)Yes50–500PDF ↓Shop →

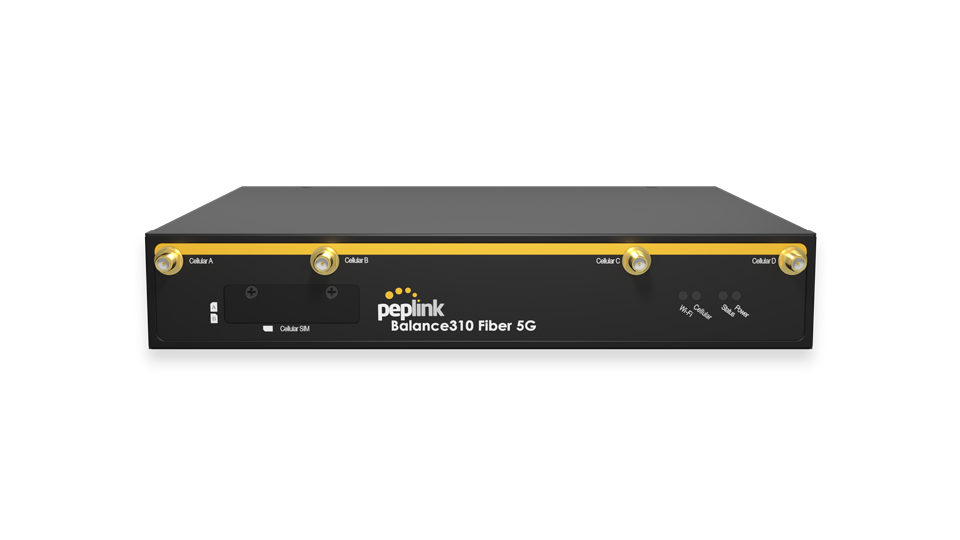

Balance 310 Fiber 5G1Gbps500Mbps1 (GE) / 5 (GE)Yes50–500PDF ↓Shop →

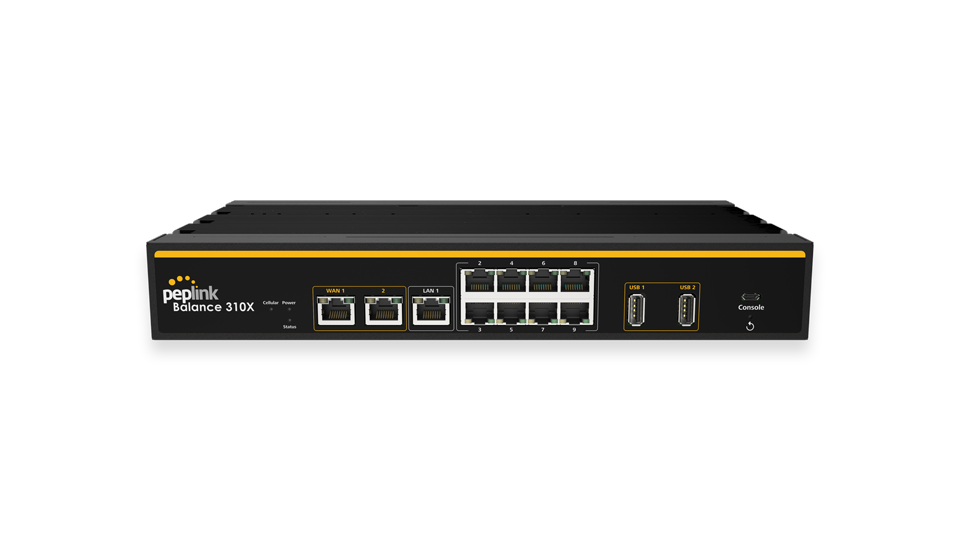

Balance 310X2.5Gbps500Mbps2 (GE) / 9 (GE)Yes50–500PDF ↓Shop →
Balance 5000 EC (100G)110Gbps30Gbps6–8 (2.5GE) / 3–9 (2.5GE)No10000–20000+—Shop →
Balance 5000 EC (40G)70Gbps30Gbps6–8 (2.5GE) / 3–9 (2.5GE)No10000–20000+—Shop →
Balance 5801.5Gbps200Mbps5 (GE) / 3 (GE)No300–1000—Shop →

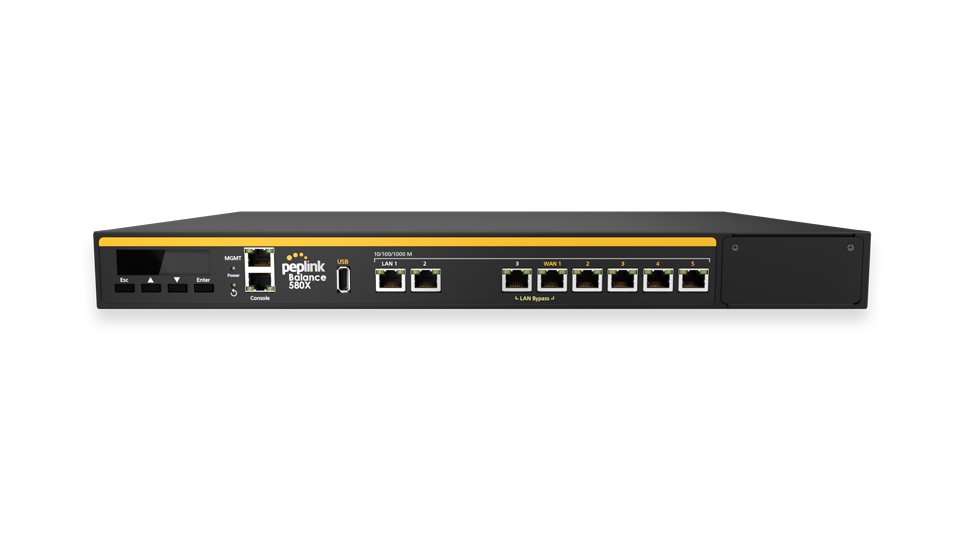

Balance 580X (HW2)8Gbps1Gbps1 (10GE) / 0–4 (2.5GE) / 1 (10GE) / 4–8 (2.5GE)Yes500–2000PDF ↓Shop →

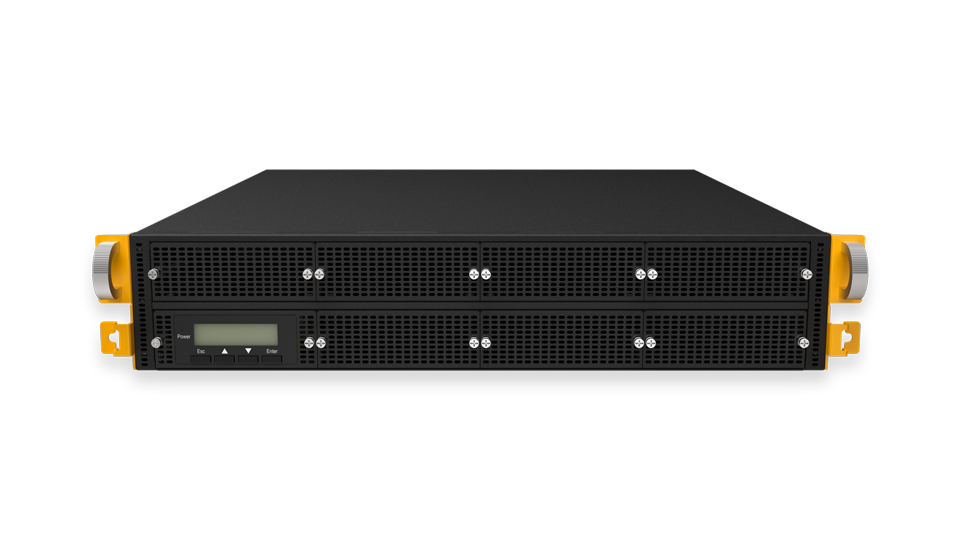

EPX30Gbps4Gbps8–56 (GE) / 8–56 (GE)Yes5000–20000+PDF ↓Shop →

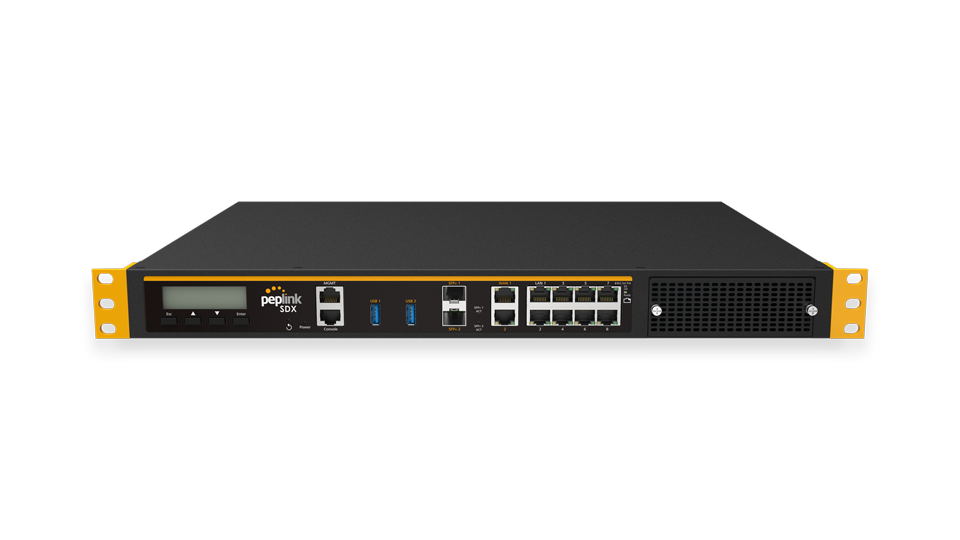

SDX12Gbps600Mbps2–10 (GE) / 8–18 (GE)Yes500–2000PDF ↓Shop →

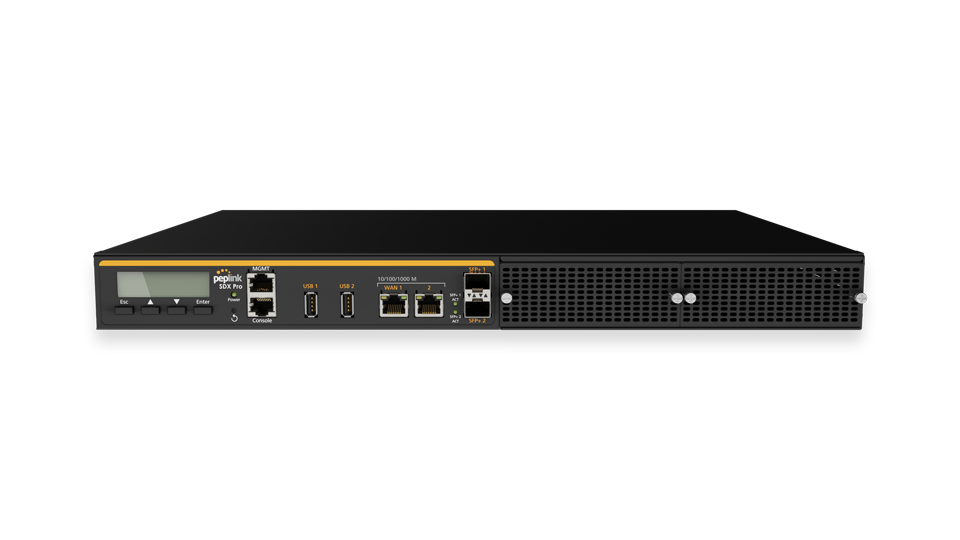

SDX Pro24Gbps600Mbps2–18 (GE) / 0–18 (GE)Yes500–2000—Shop →

Mobility Legacy

ModelThroughputSpeedFusion (AES)WAN / LAN5GRec. usersDatasheetShop

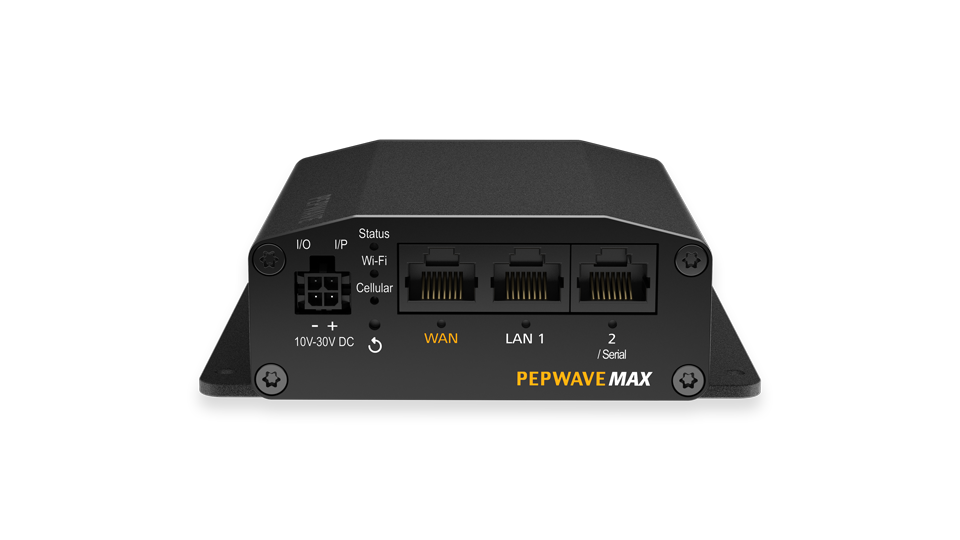

BR1 Classic100Mbps20Mbps1 (FE) / 2 (FE)No1–60—Shop →

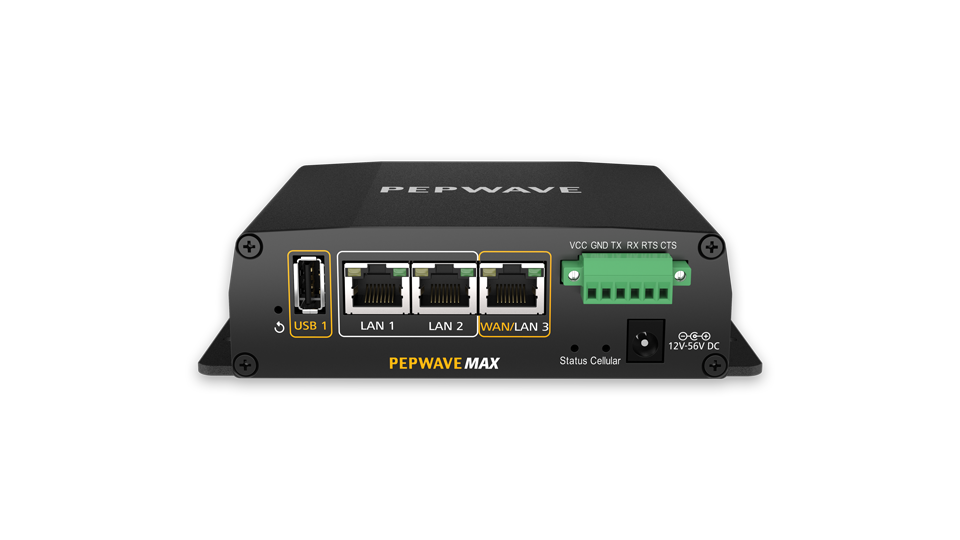

BR1 ENT300Mbps60Mbps1 / 0 (GE) / 2 / 3 (GE)No25–150—Shop →

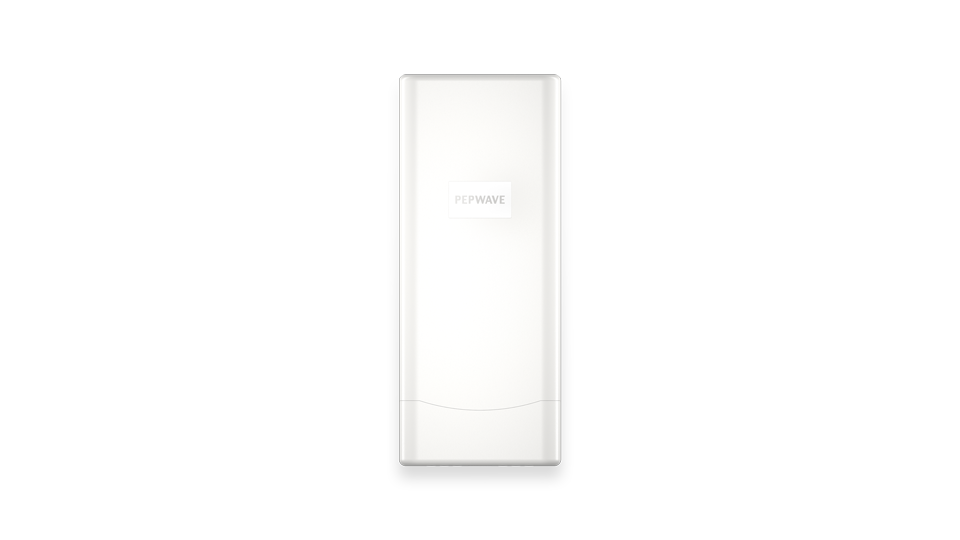

BR1 IP55100Mbps20Mbps1 (GE) / 2 (GE)No1–60—Shop →

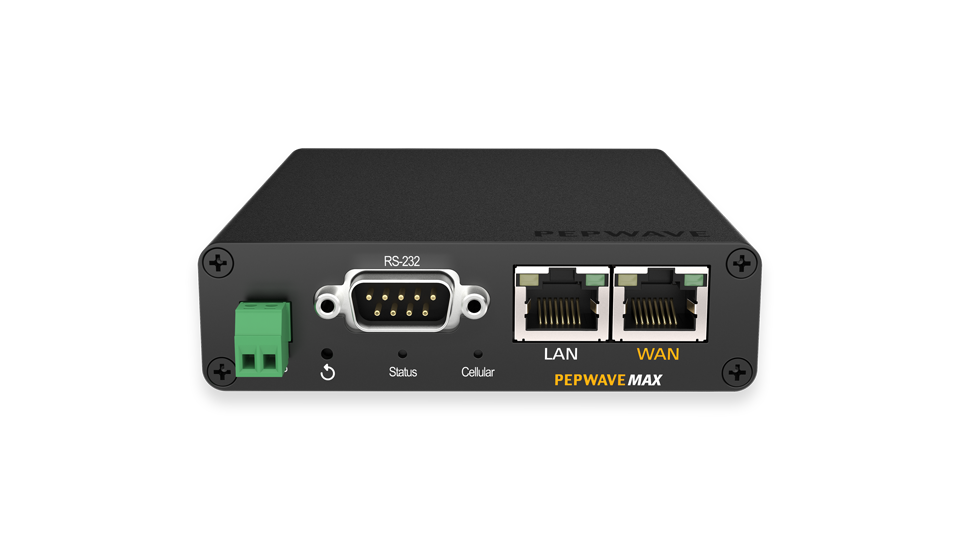

BR1 M2M100Mbps20Mbps1 (FE) / 1 (FE)No1–60—Shop →

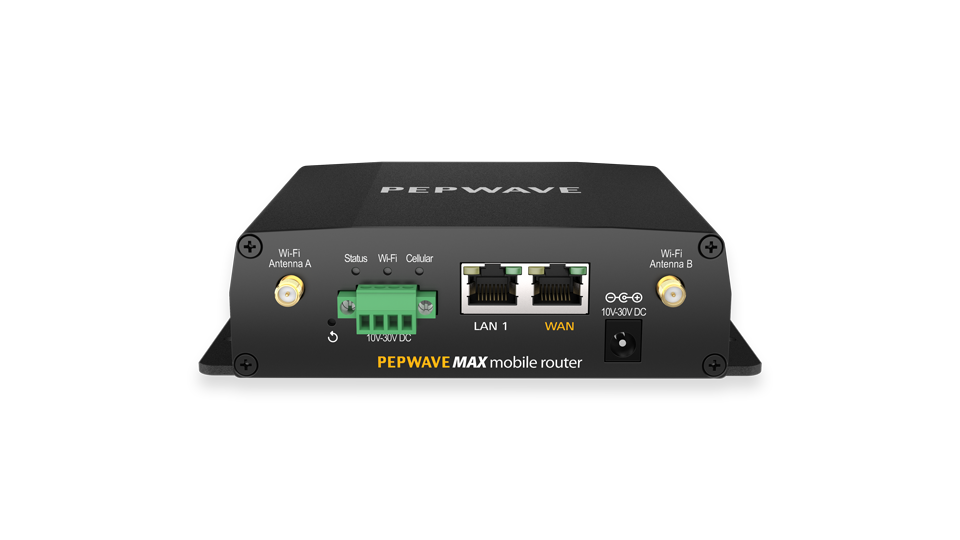

BR1 MK2100Mbps20Mbps0 / 1 (GE) / 2 / 1 (GE)No1–60—Shop →

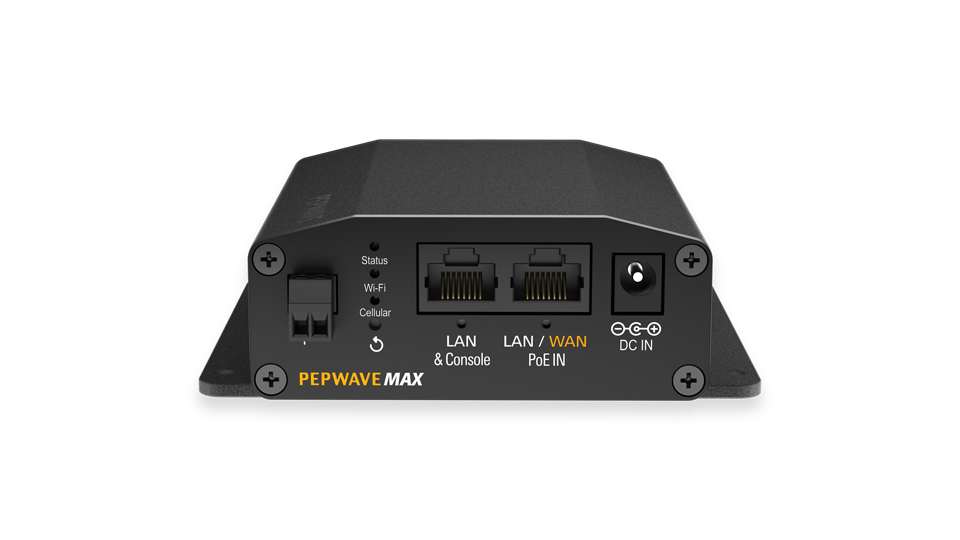

BR1 Mini (HW1)100Mbps20Mbps0 / 1 (FE) / 2 / 1 (FE)No1–60—Shop →

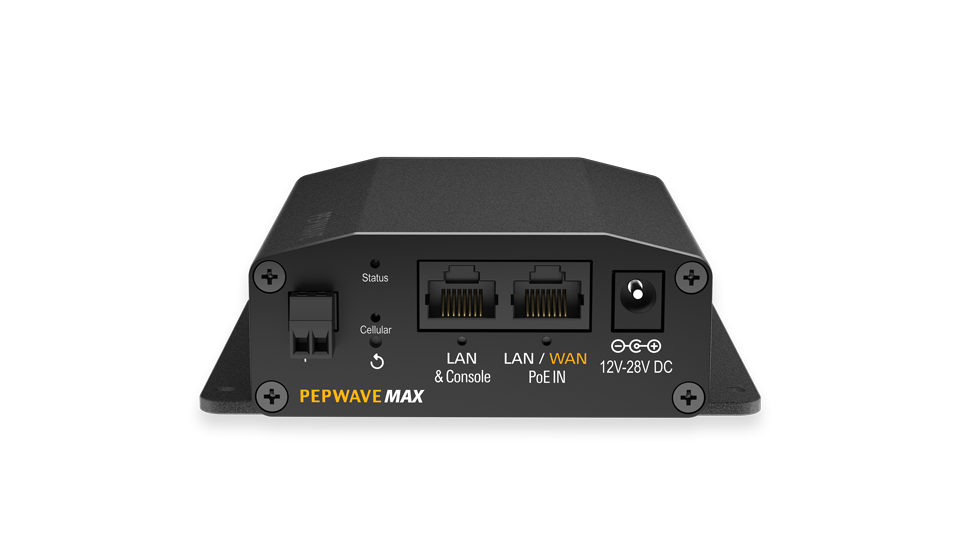

BR1 Mini Core (HW1)100Mbps20Mbps0 / 1 (FE) / 2 / 1 (FE)No1–60—Shop →

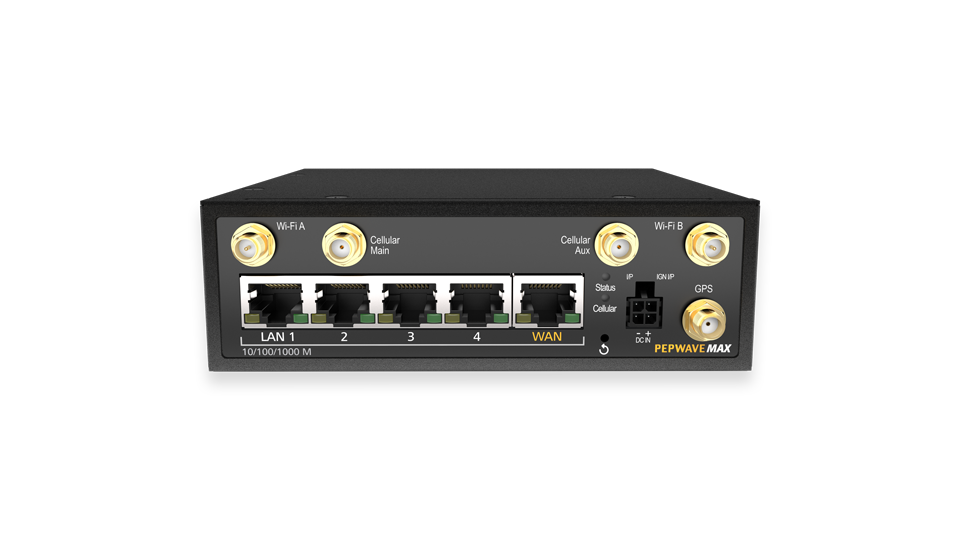

BR1 Pro120Mbps20Mbps1 (GE) / 4 (GE)No1–60—Shop →
HD1 DomeNA60MbpsNo / 1 (GE)Yes25–150—Shop →

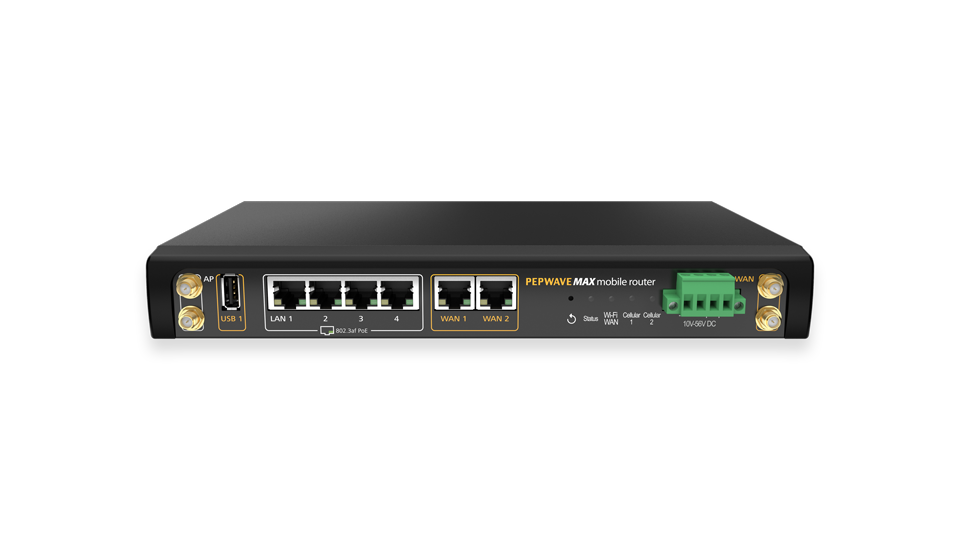

HD2400Mbps55Mbps2 (GE) / 4 (GE)No25–150—Shop →
HD2 DomeNA60MbpsNo / 1 (GE)No25–150—Shop →

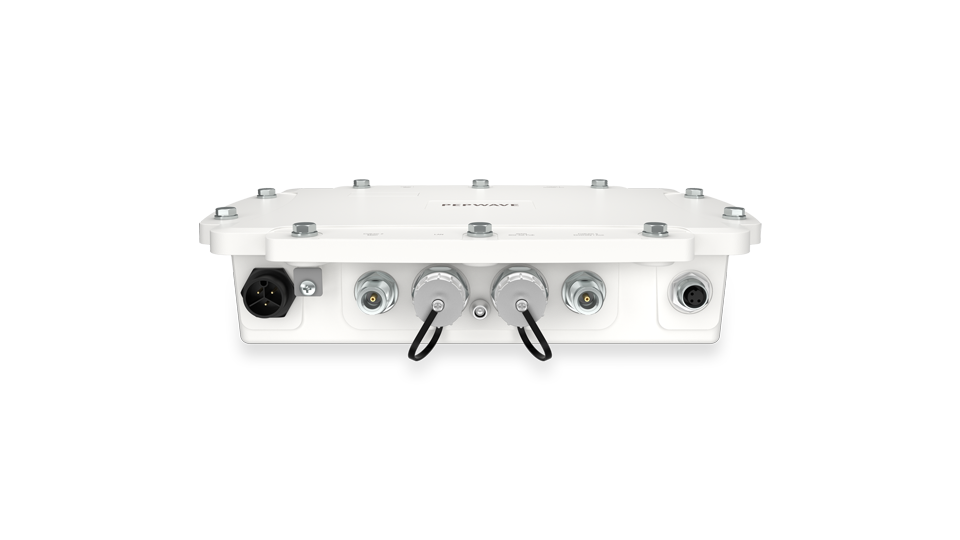

HD2 IP67400Mbps60Mbps1 (GE) / 1 (GE)No25–150—Shop →
HD2 Mediafast400Mbps120Mbps2–5 (GE) / 5–8 (GE)No50–500—Shop →

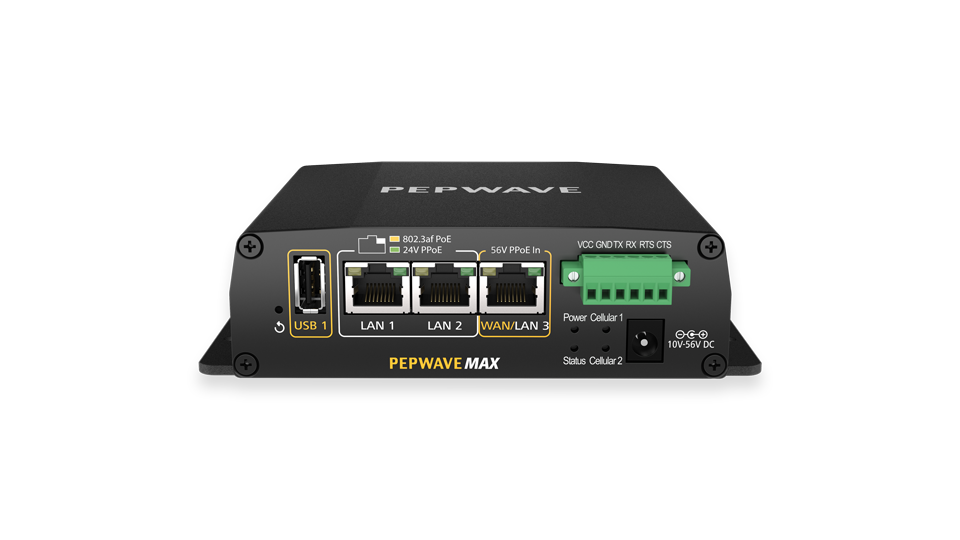

HD2 Mini300Mbps60Mbps1 (GE) / 2 (GE)No25–150—Shop →
HD2 Next Gen1Gbps200Mbps2 (GE) / 4 (GE)Yes25–150—Shop →
HD4400Mbps120Mbps2–5 (GE) / 5–8 (GE)No50–500—Shop →

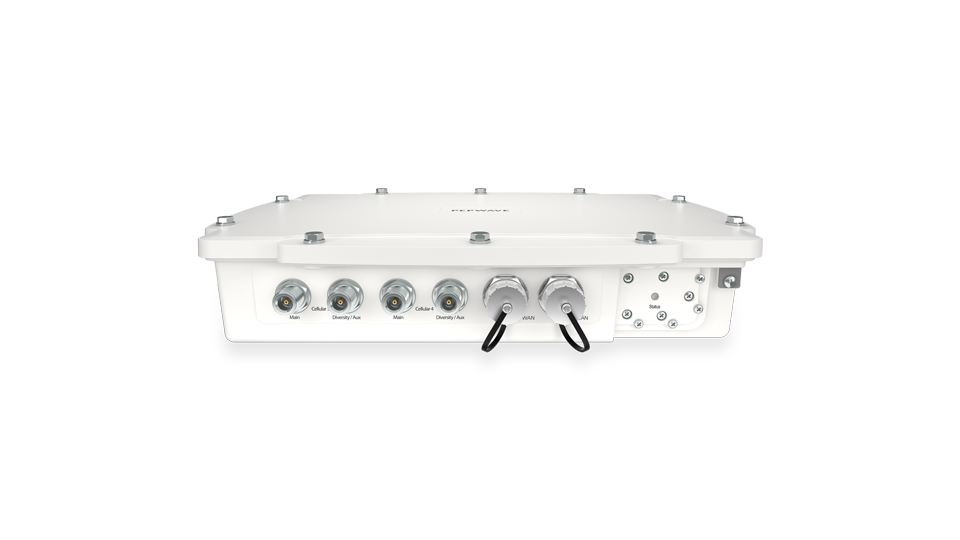

HD4 IP67400Mbps60Mbps1 (GE) / 1 (GE)No50–500—Shop →

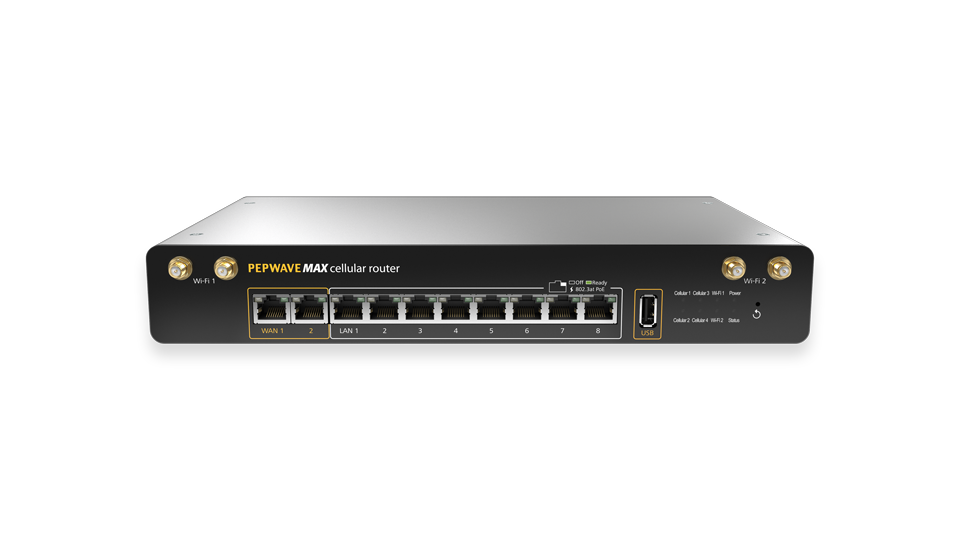

HD4 Mediafast400Mbps120Mbps2–5 (GE) / 5–8 (GE)No50–500—Shop →

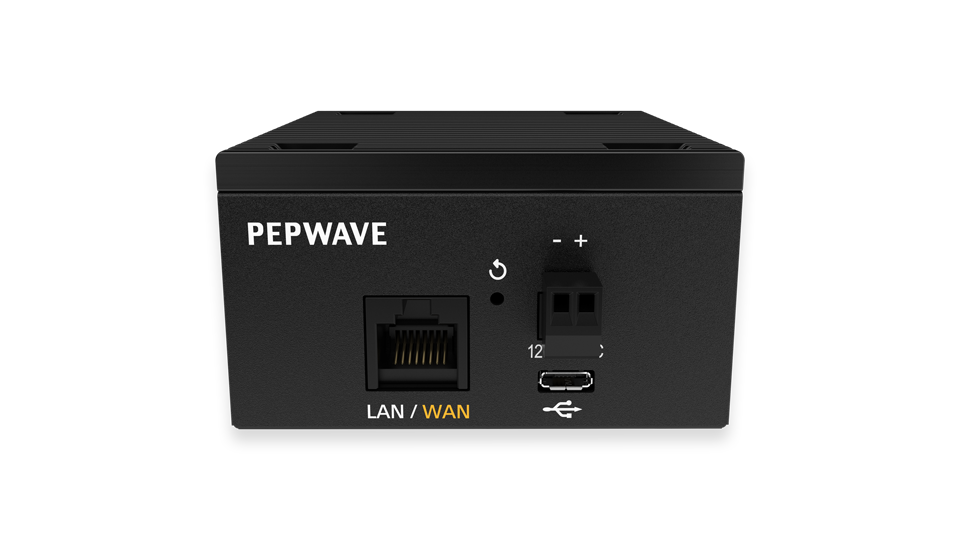

SpeedFusion Engine100Mbps20Mbps0 / 1 (FE) / 1 / 0 (FE)No1–60PDF ↓Shop →

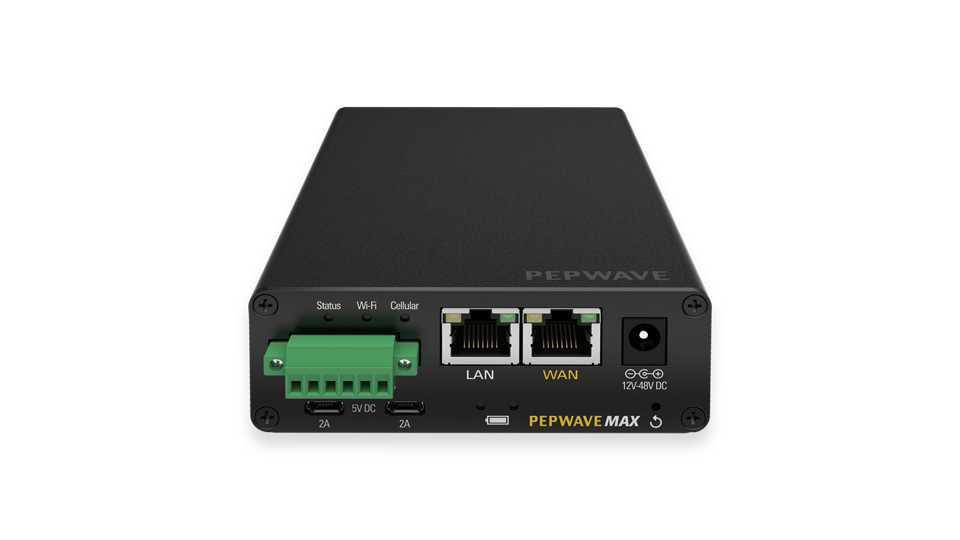

Transit400Mbps60Mbps1 / 0 (GE) / 1 / 2 (GE)Yes25–150—Shop →

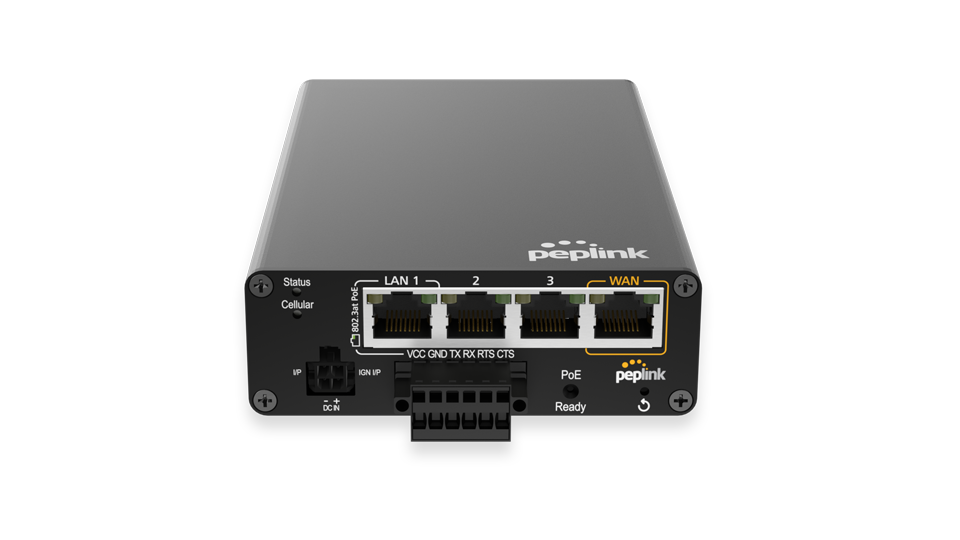

Transit Core400Mbps60Mbps1 / 0 (GE) / 3 / 4 (GE)Yes25–150—Shop →

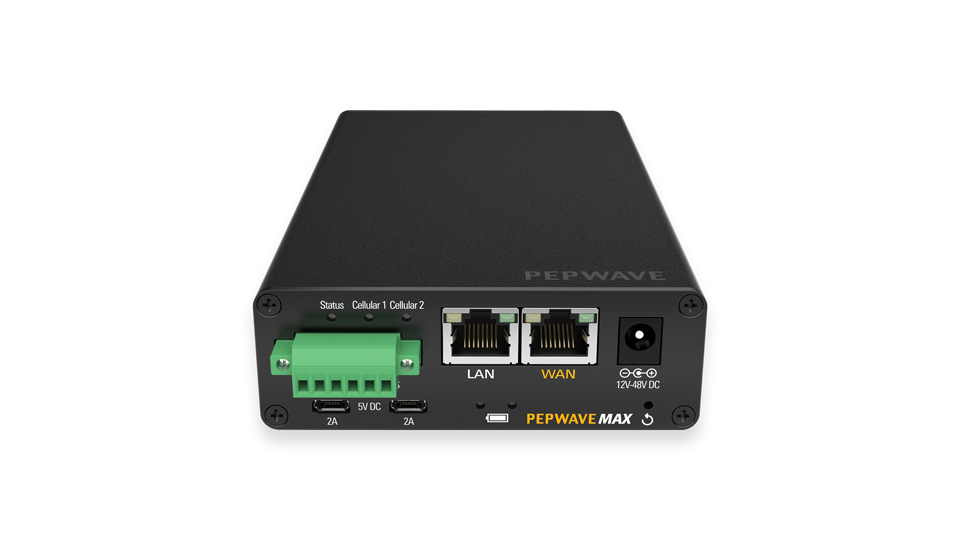

Transit Duo400Mbps60Mbps1 / 0 (GE) / 1 / 2 (GE)No25–150—Shop →

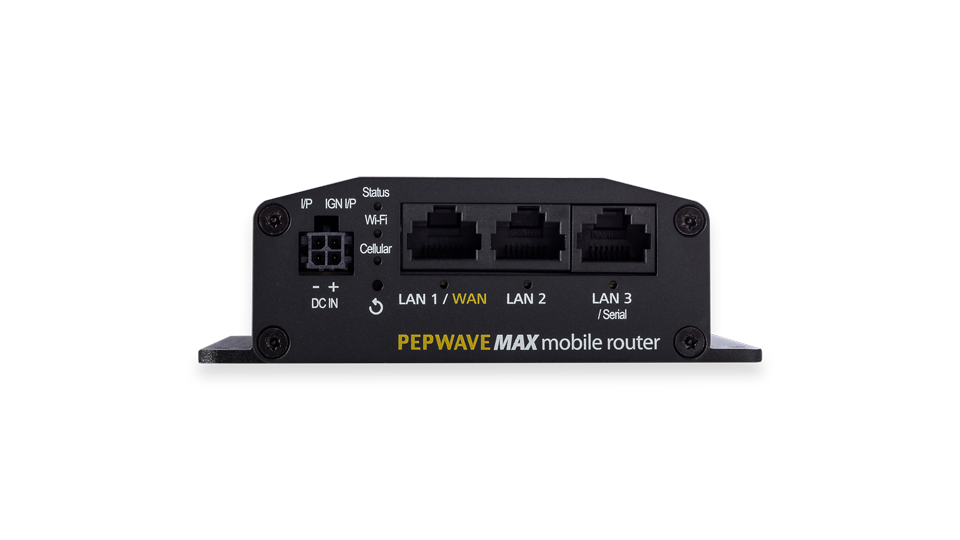

Transit Mini100Mbps20Mbps0 / 1 (FE) / 3 / 2 (FE)No1–60—Shop →

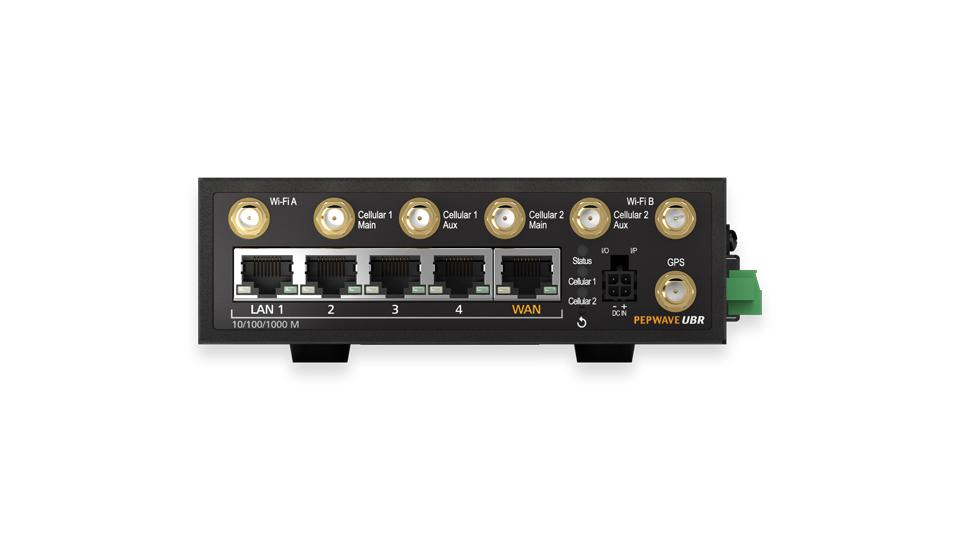

UBR LTE120Mbps20Mbps1 (GE) / 4 (GE)No1–60PDF ↓Shop →
UBR Plus900Mbps60Mbps1 (GE) / 4 (GE)No1–60PDF ↓Shop →

Enterprise Branch Legacy

ModelThroughputSpeedFusion (AES)WAN / LAN5GRec. usersDatasheetShop

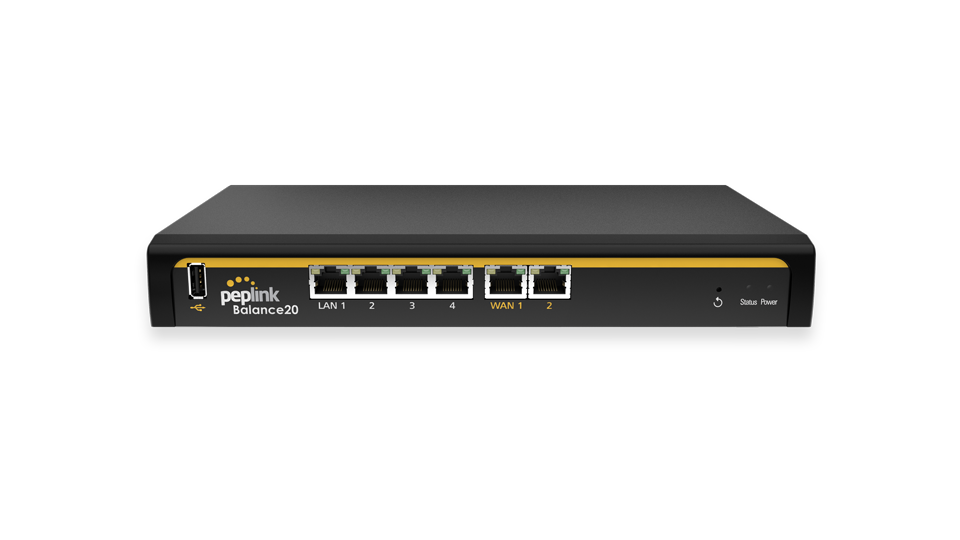

Balance 20150Mbps30Mbps1 / 2 (GE) / 4 (GE)No1–60—Shop →

Enterprise Legacy

ModelThroughputSpeedFusion (AES)WAN / LAN5GRec. usersDatasheetShop
Balance 13505Gbps800Mbps13 (GE) / 3 (GE)No1000–5000—Shop →

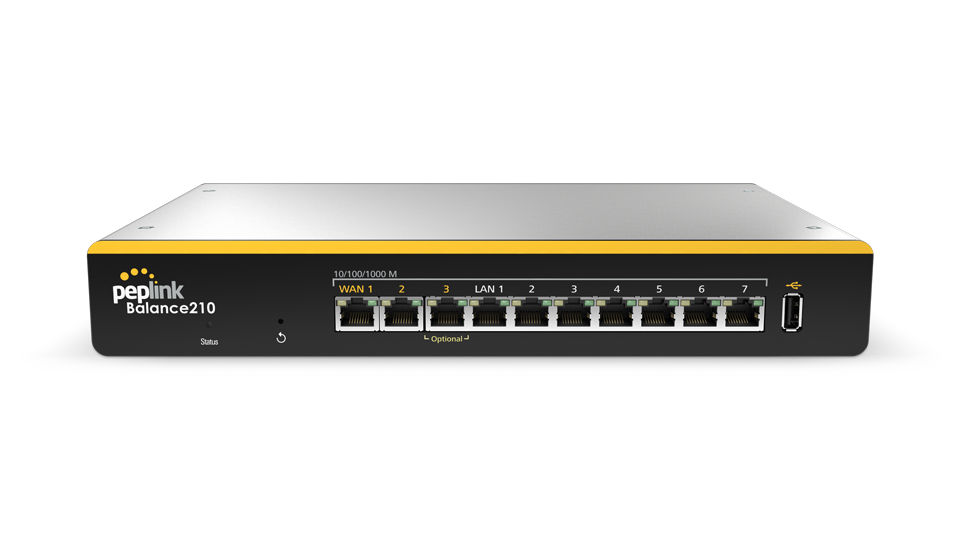

Balance 210350Mbps80Mbps2 / 3 (GE) / 7 (GE)No25–150PDF ↓Shop →

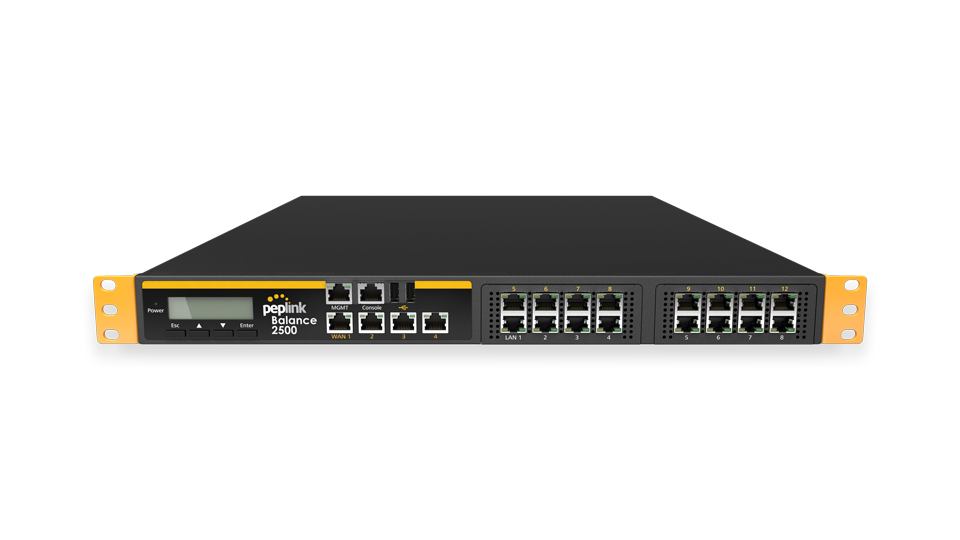

Balance 25008Gbps2Gbps12 (GE) / 8 (GE)No5000–20000+PDF ↓Shop →

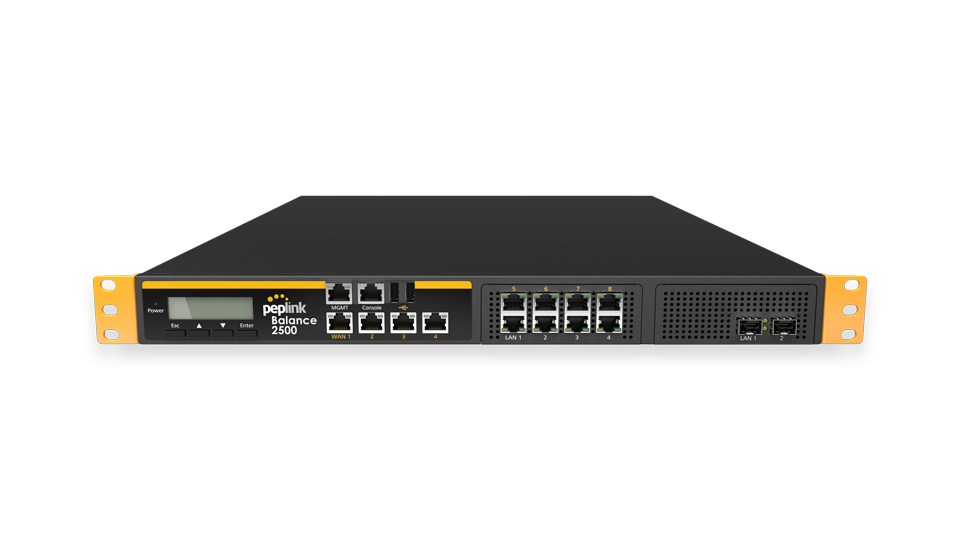

Balance 2500 (1SFP)8Gbps2Gbps12 (GE) / NoNo5000–20000+—Shop →

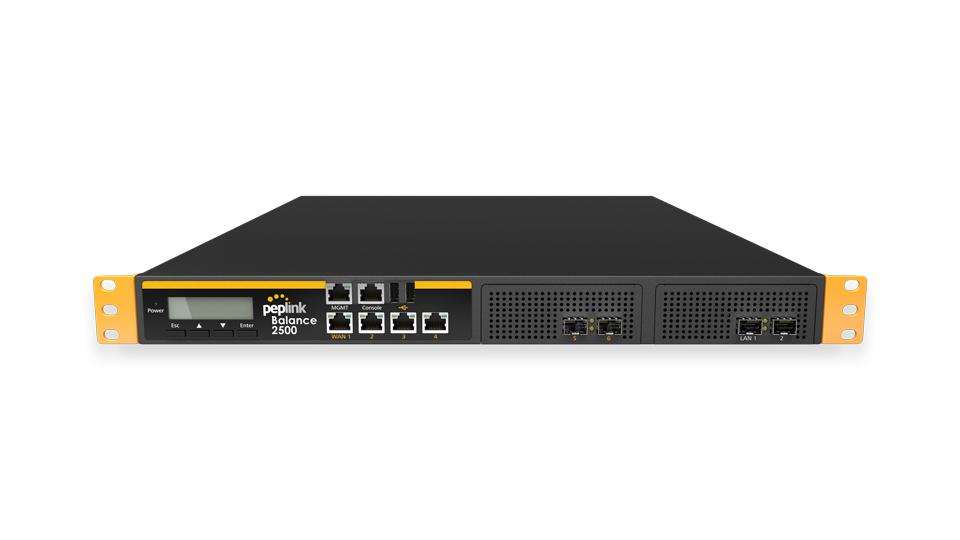

Balance 2500 (2SFP)8Gbps2Gbps4 (GE) / NoNo5000–20000+—Shop →

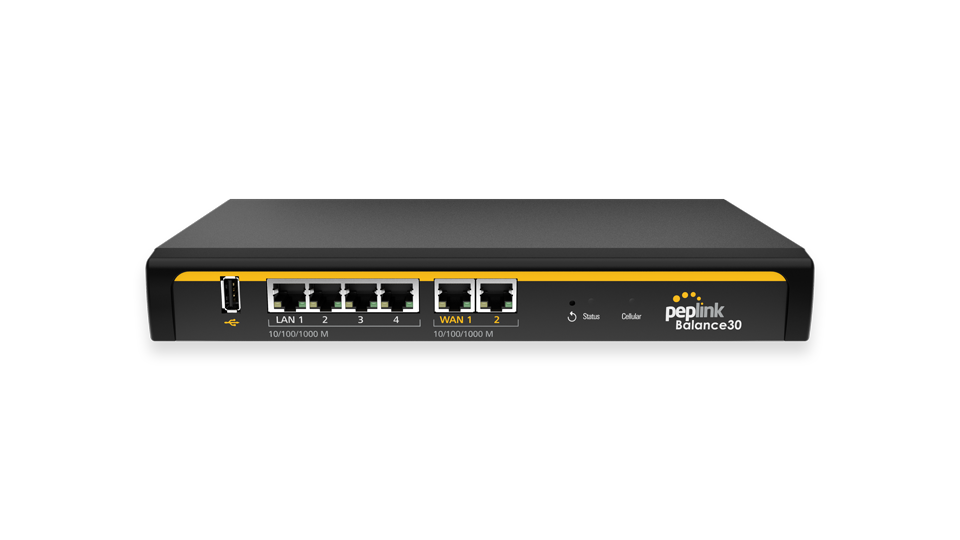

Balance 30 LTE200Mbps55Mbps2 (GE) / 4 (GE)No1–60PDF ↓Shop →

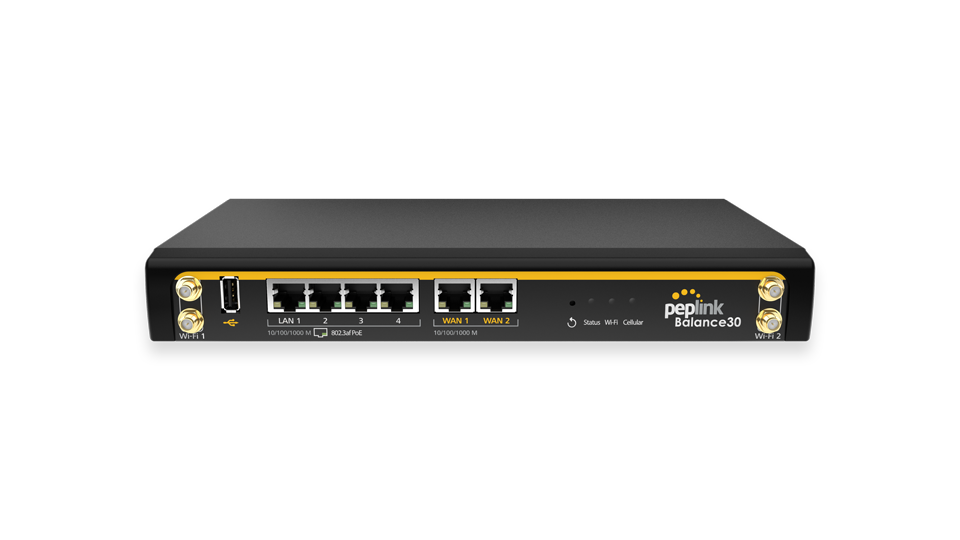

Balance 30 PRO400Mbps55Mbps2 (GE) / 4 (GE)No1–60PDF ↓Shop →

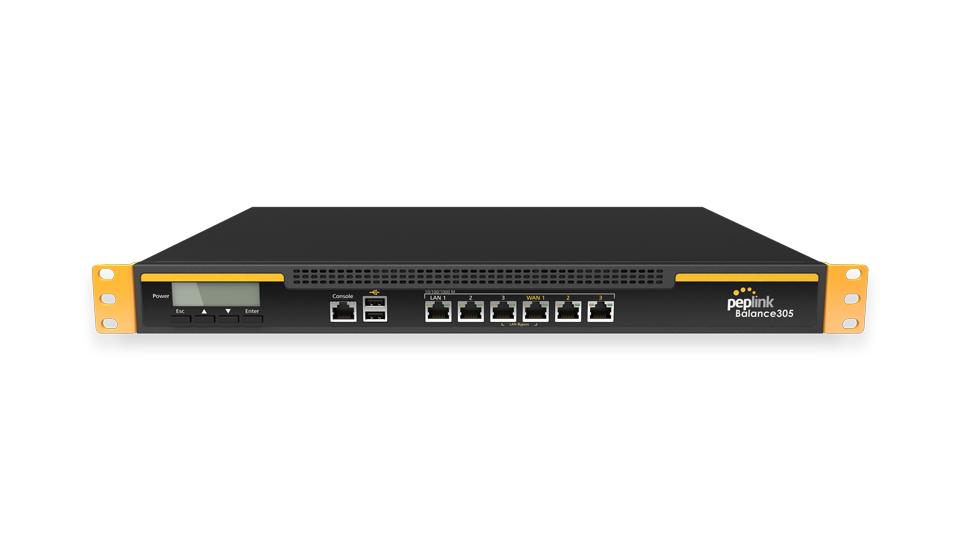

Balance 3051Gbps150Mbps3 (GE) / 3 (GE)No50–500PDF ↓Shop →

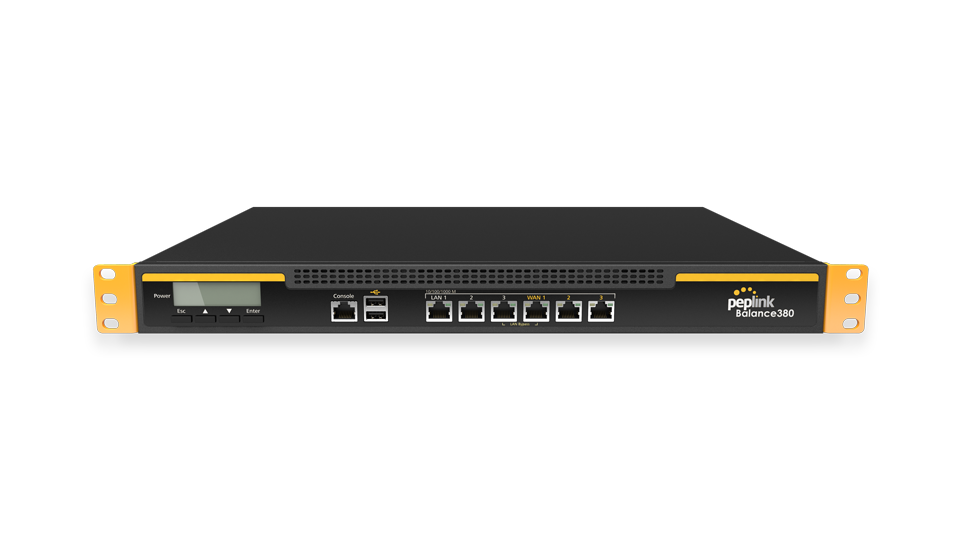

Balance 3801Gbps150Mbps3 (GE) / 3 (GE)No50–500—Shop →

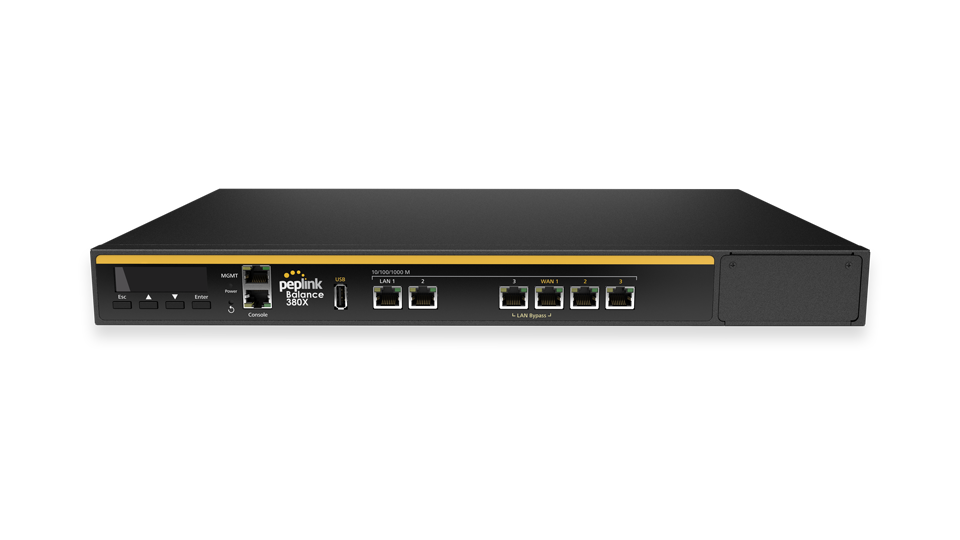

Balance 380X3Gbps500Mbps3 (GE) / 3 (GE)Yes50–500PDF ↓Shop →
Balance 580X4Gbps500Mbps5 (GE) / 3 (GE)Yes300–1000—Shop →

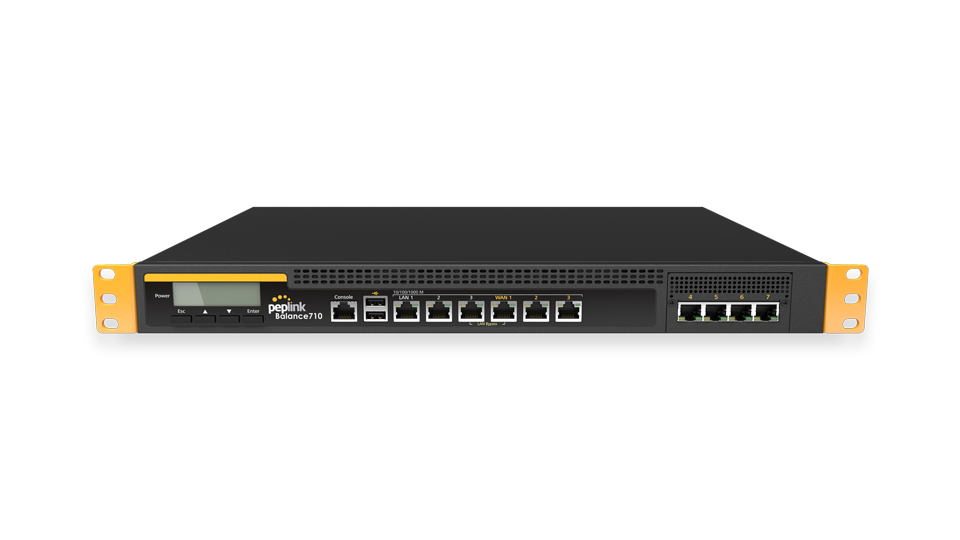

Balance 7102.5Gbps400Mbps7 (GE) / 3 (GE)No500–2000PDF ↓Shop →

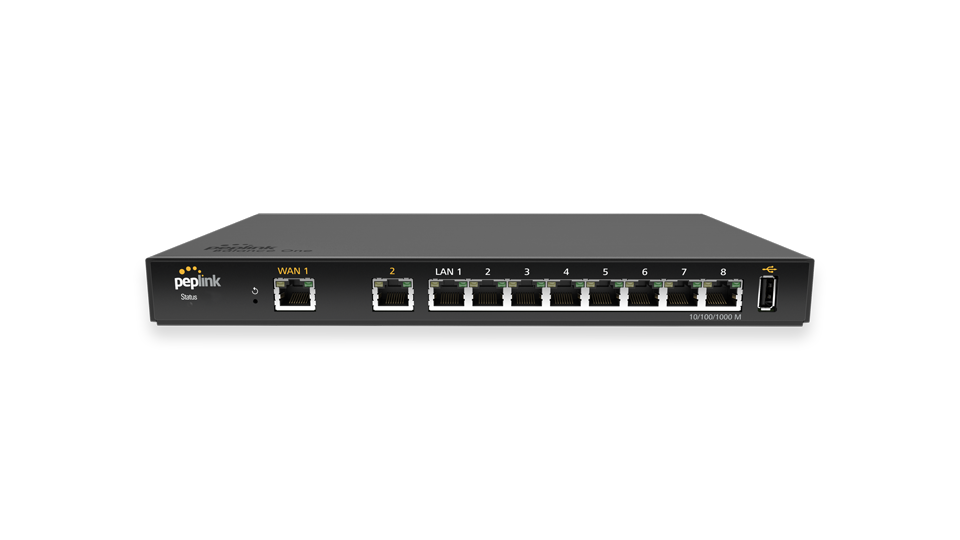

Balance ONE600Mbps/ / 400Mbps30Mbps2 / 5 (GE) / 8 / 5 (GE)No1–60PDF ↓Shop →
Balance ONE Core600Mbps/ / 400Mbps30Mbps2 / 5 (GE) / 8 / 5 (GE)No1–60—Shop →

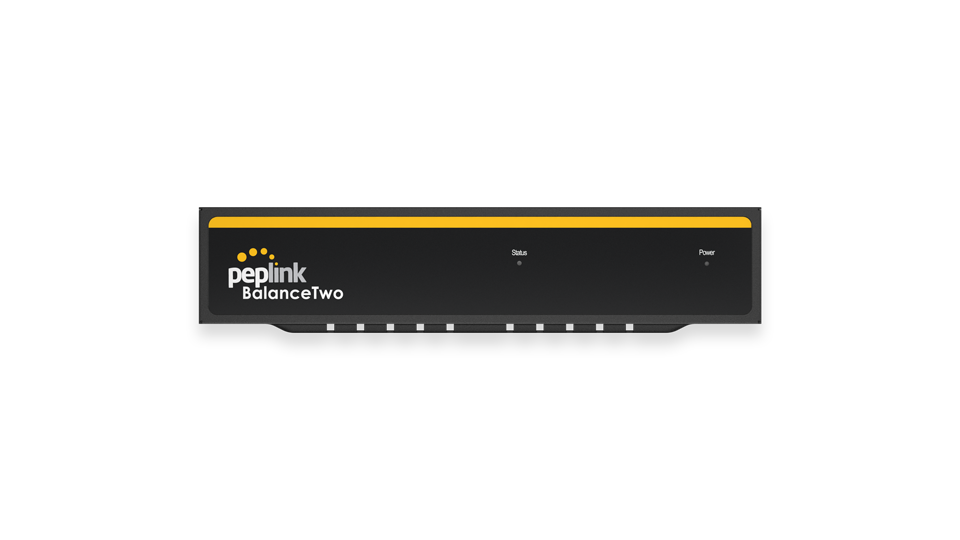

Balance TWO1Gbps150Mbps2 (GE) / 4 (GE)No25–150PDF ↓Shop →

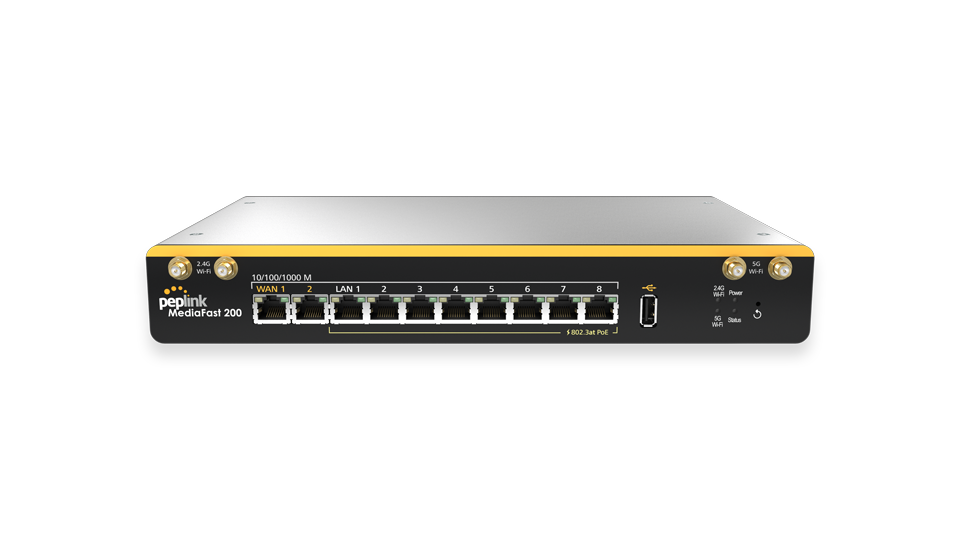

MediaFast 200200Mbps80Mbps2 (GE) / 8 (GE)No25–150—Shop →

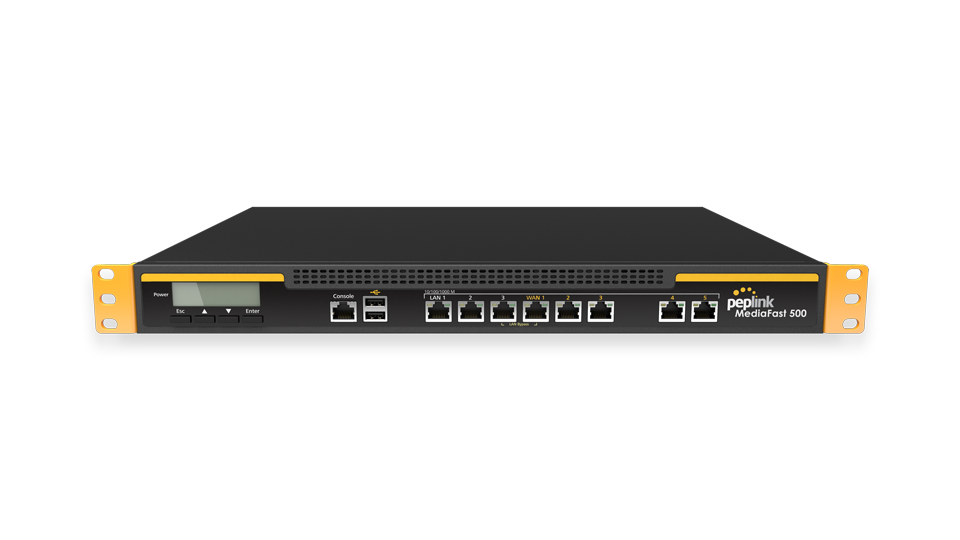

MediaFast 5001.5Gbps200Mbps2–5 (GE) / 3–6 (GE)No300–1000—Shop →
MediaFast 7502.5Gbps400Mbps2–7 (GE) / 3–8 (GE)No500–2000—Shop →

Multi-Orbit

ModelThroughputSpeedFusion (AES)WAN / LAN5GRec. usersDatasheetShop
MAX Orbit 2See datasheet1x 2.5G Multi-Gig / 1G EthernetYes (embedded cellular)25-150—Shop →
MAX Orbit 4See datasheet1x 2.5G Multi-Gig / 1G EthernetYes (embedded cellular)150-300—Shop →
MAX Orbit 8See datasheet1x 2.5G Multi-Gig / 1G EthernetYes (embedded cellular)300-1000—Shop →

Switches

ModelRJ45SFP / SFP+CapacityPoE budgetDatasheetShop
8 PoE 10G Switch8x 10GE (802.3bt Type 4 PoE++)4x 10G SFP+240 Gbps720W—Shop →

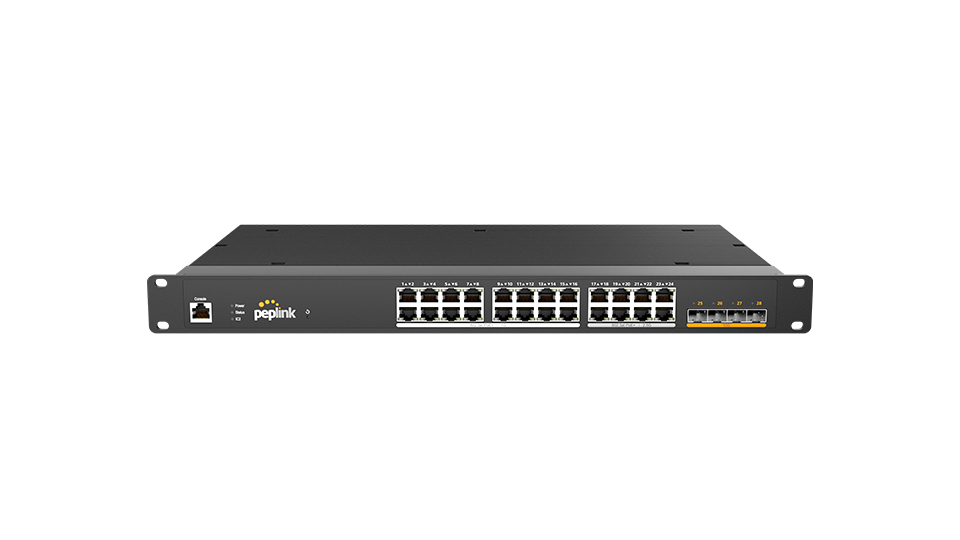

24 PoE 2.5G Switch Rugged16x 1GE (802.3at PoE+) / 8x 2.5GE (802.3at PoE+)4x 10G SFP+152 Gbps250W—Shop →
24 PoE 2.5G Switch16x 1GE (802.3at PoE+) / 8x 2.5GE (802.3at PoE+)4x 10G SFP+152 Gbps410W—Shop →

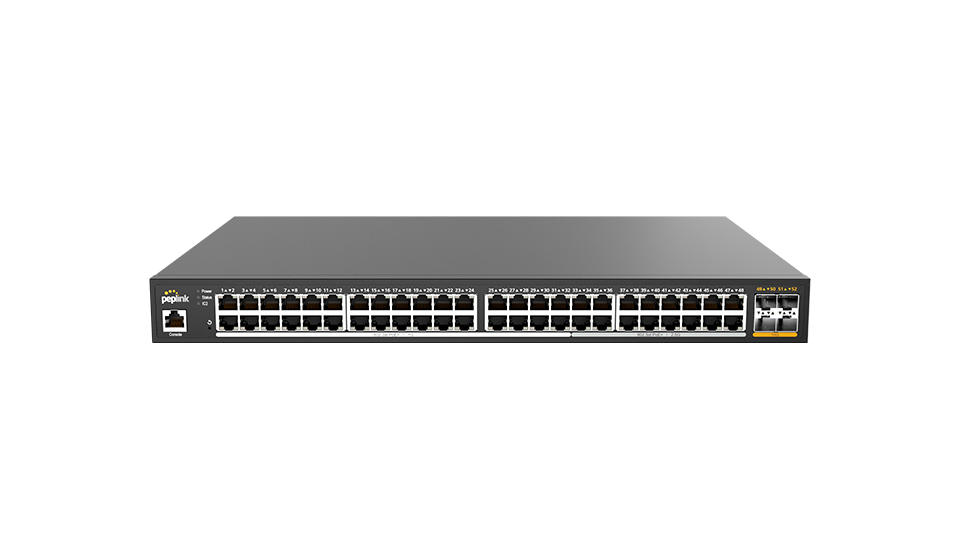

48 PoE 2.5G Switch32x 1GE (802.3at PoE+) / 16x 2.5GE (802.3at PoE+)4x 10G SFP+224 Gbps740W—Shop →
SD Switch 24-Port Enterprise24x 1GE (802.3at PoE+)2x 10G SFP+88 Gbps850W—Shop →
SD Switch 48-Port Enterprise48x 1GE (802.3at PoE+)4x 10G SFP+176 Gbps800W—Shop →

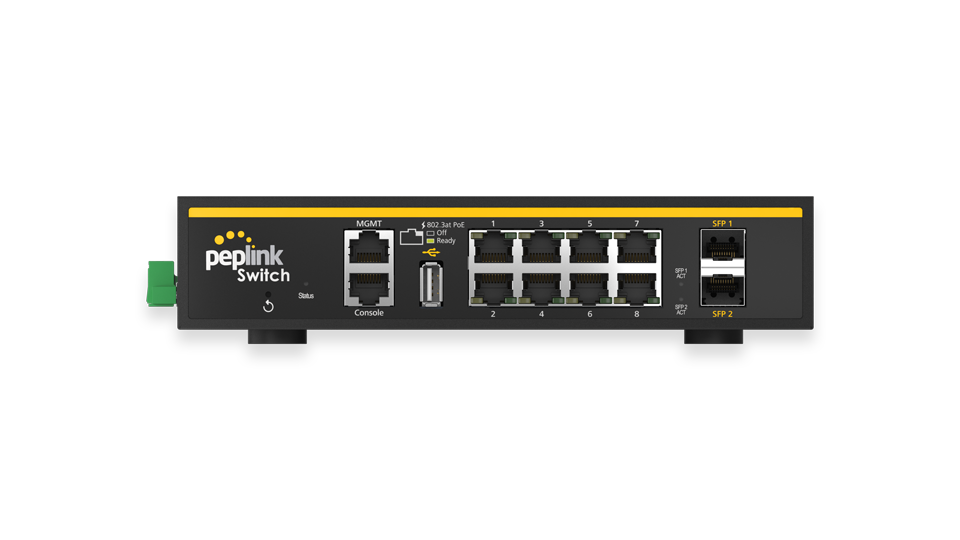

SD Switch 8-Port Rugged8x 1GE (802.3at PoE+)2x 1G SFP20 Gbps90W or up to 240W—Shop →
SD Switch 16-Port Rugged8x 1GE (802.3at PoE+) / 8x 1GE Ports2x 1G SFP36 Gbps70W or up to 240W—Shop →
SD Switch 24-Port Rugged24x 1GE (802.3at PoE+)2x 10G SFP+88 Gbps70W or up to 250W—Shop →

Access Points

ModelWi-FiEthernetDatasheetShop

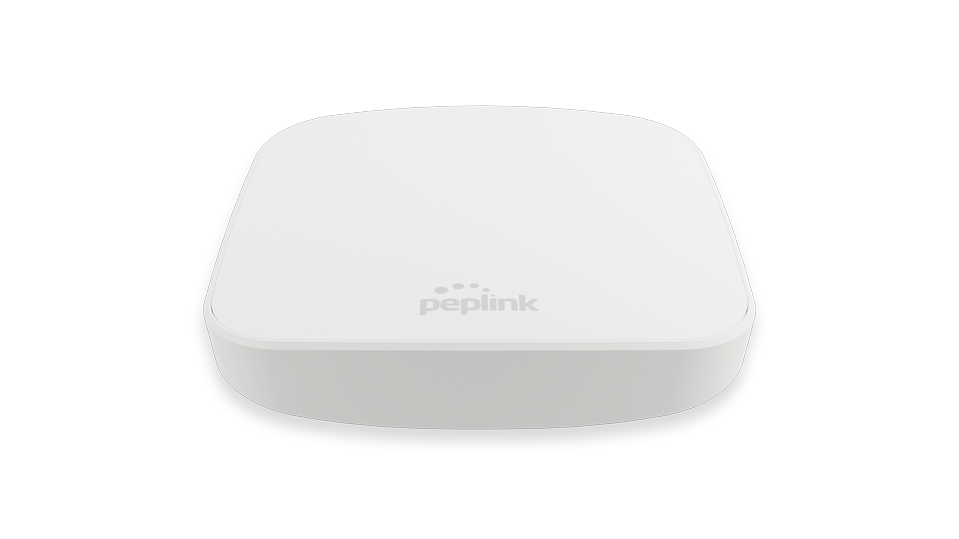

AP One MiniWi-Fi 5PDF ↓Shop →

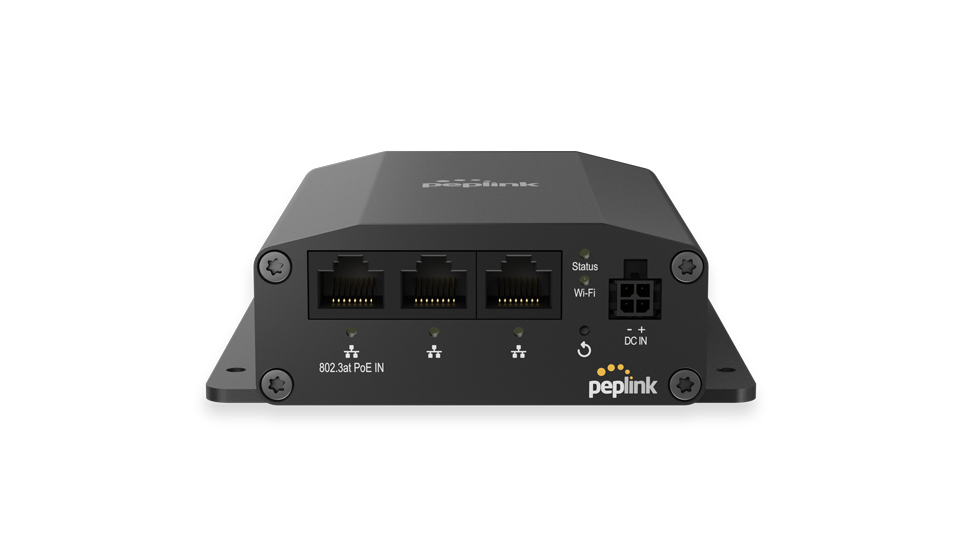

AP One RuggedWi-Fi 5PDF ↓Shop →

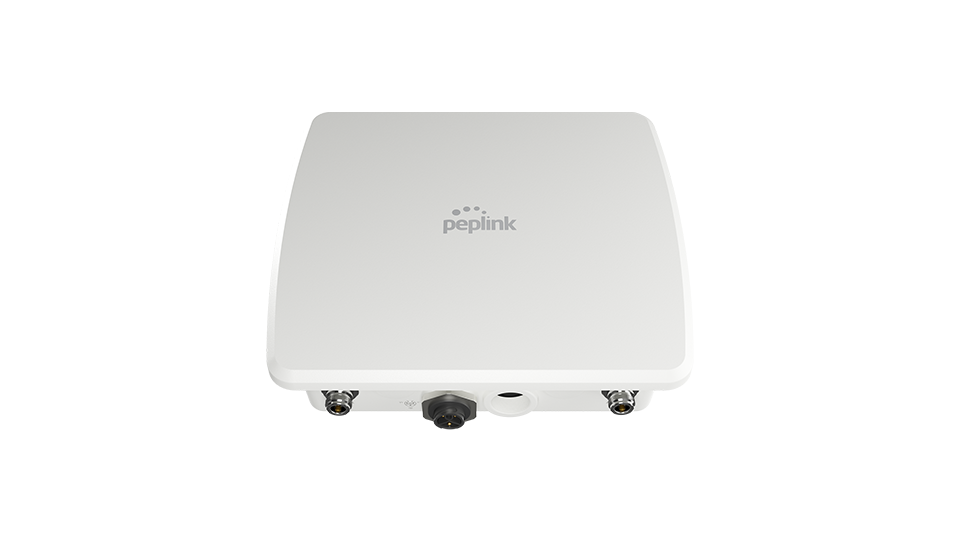

AP Pro AXWi-Fi 6PDF ↓Shop →
AP One Enterprise (HW2)Wi-Fi 5PDF ↓Shop →
AP One AXWi-Fi 6PDF ↓Shop →
AP One AX LiteWi-Fi 6PDF ↓Shop →

Specs sourced from the Peplink product matrix. Legacy and variant models may not be stocked — ask us for anything in the Peplink catalog.

Watch: related training videos
