Advanced support.cgi Menu & PCI Compliance Mode

The hidden support.cgi advanced menu: network capture, cellular firmware update, watchdog, remote SIM proxy, PCI compliance mode, and more.

Change index to support in the web-admin URL to reach the advanced (support.cgi) menu — a deeper set of diagnostics and expert settings.

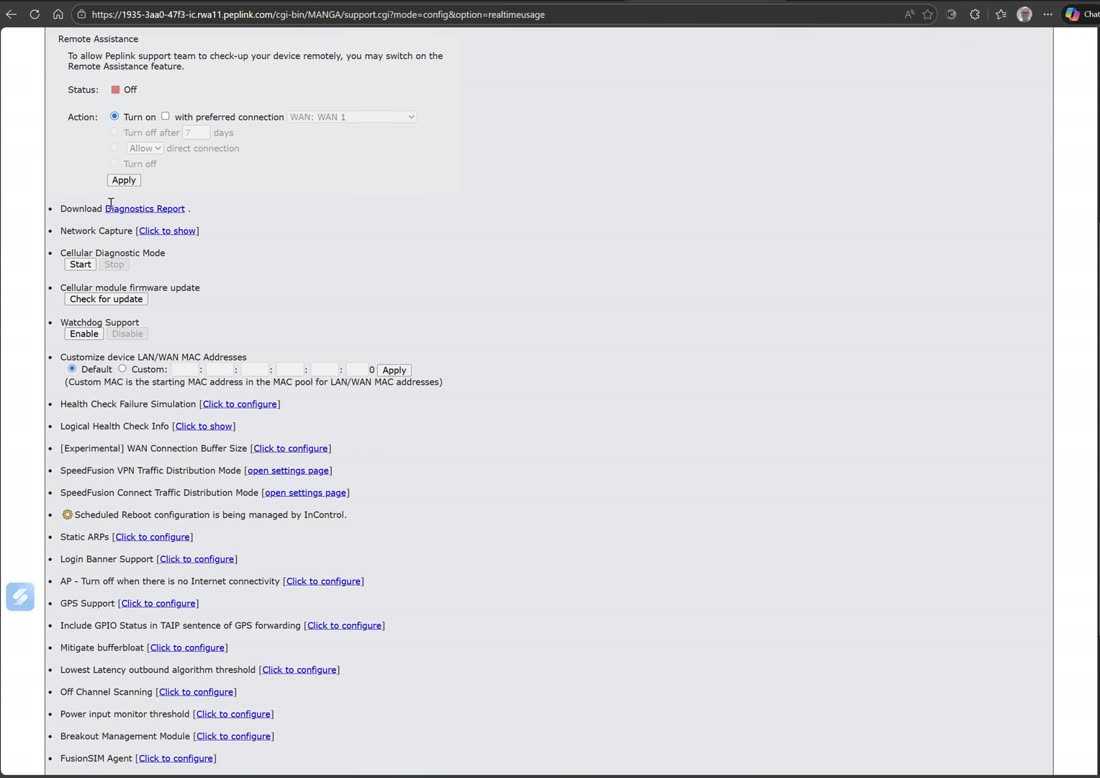

The support.cgi advanced menu — LAN/WAN details, network capture, cellular firmware, watchdog, and more.
The support.cgi advanced menu — LAN/WAN details, network capture, cellular firmware, watchdog, and more.

Here you can view LAN/WAN details, run a network capture (20 MB locally, or perpetual when remote), check and update cellular modem firmware, and enable the watchdog (auto-reboot on lock-up). Remote SIM proxy is here too — needed when a SIM Injector serves routers on the WAN side.

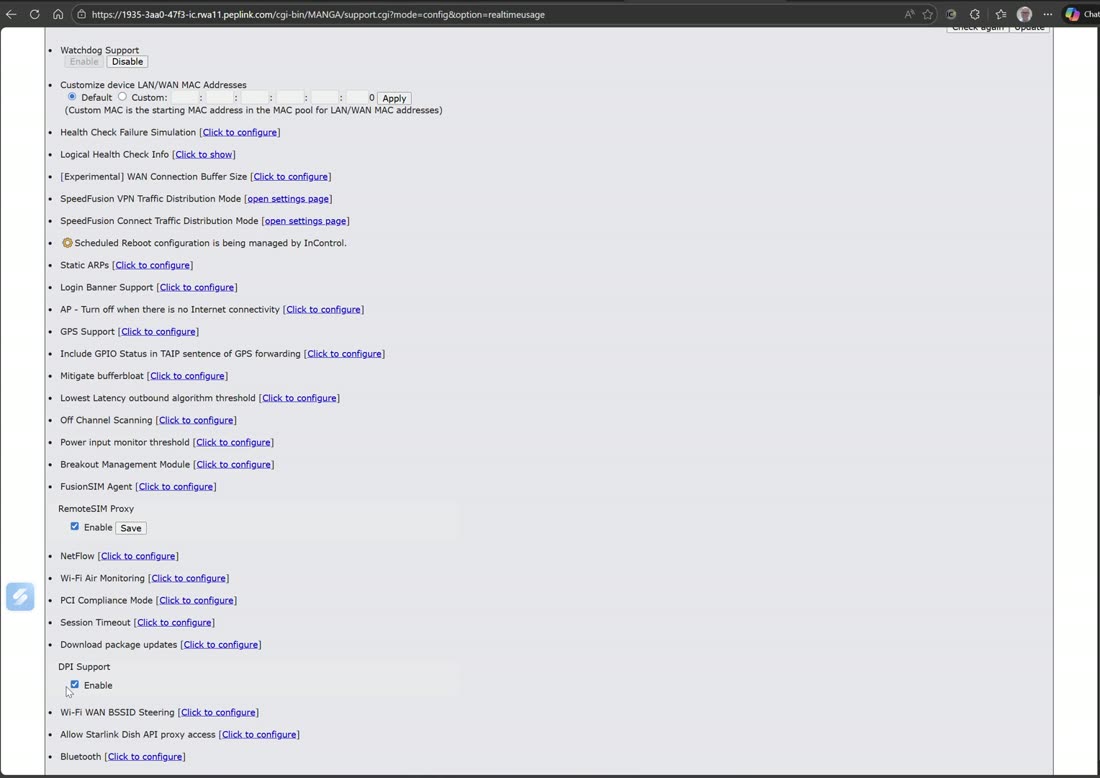

PCI compliance mode and related expert toggles in support.cgi.
PCI compliance mode and related expert toggles in support.cgi.

PCI compliance mode, DPI support, Wi-Fi WAN band steering, and the Starlink dish-API proxy toggle all live here. Bluetooth can be turned off entirely. See the PCI-DSS 4.0 hardening guide for the full compliance workflow.
